Gold-coated carbide chamfer end mill with four flutes and 60-degree tip

SPEED TIGER

SPEED TIGER ICSM0601-4-ZrN-A 60 Degree 1/4" Shank 2" OVL 4 Flute ZrN-A Coated Carbide Chamfer End Mill

SKU CH-9209-8YBAA MPN ICSM0601-4-ZrN-A

Micro-grain carbide chamfer end mill with ZrN-A coating for 60-degree V-grooving wood, aluminium, alloy and hardened steels up to HRC45

  • TypeEnd Mills
  • Size/Dimensions1/4 In
  • MaterialCarbide
  • Selling Unit1

Option Tip Angle: 60°

  • Cuts wood, aluminium, copper, MDF and steels up to HRC45
  • ZrN-A coating resists heat better than TiAlN, TiN or TiCN
  • Micro-grain carbide stays sharp in hardened and pre-hardened steels

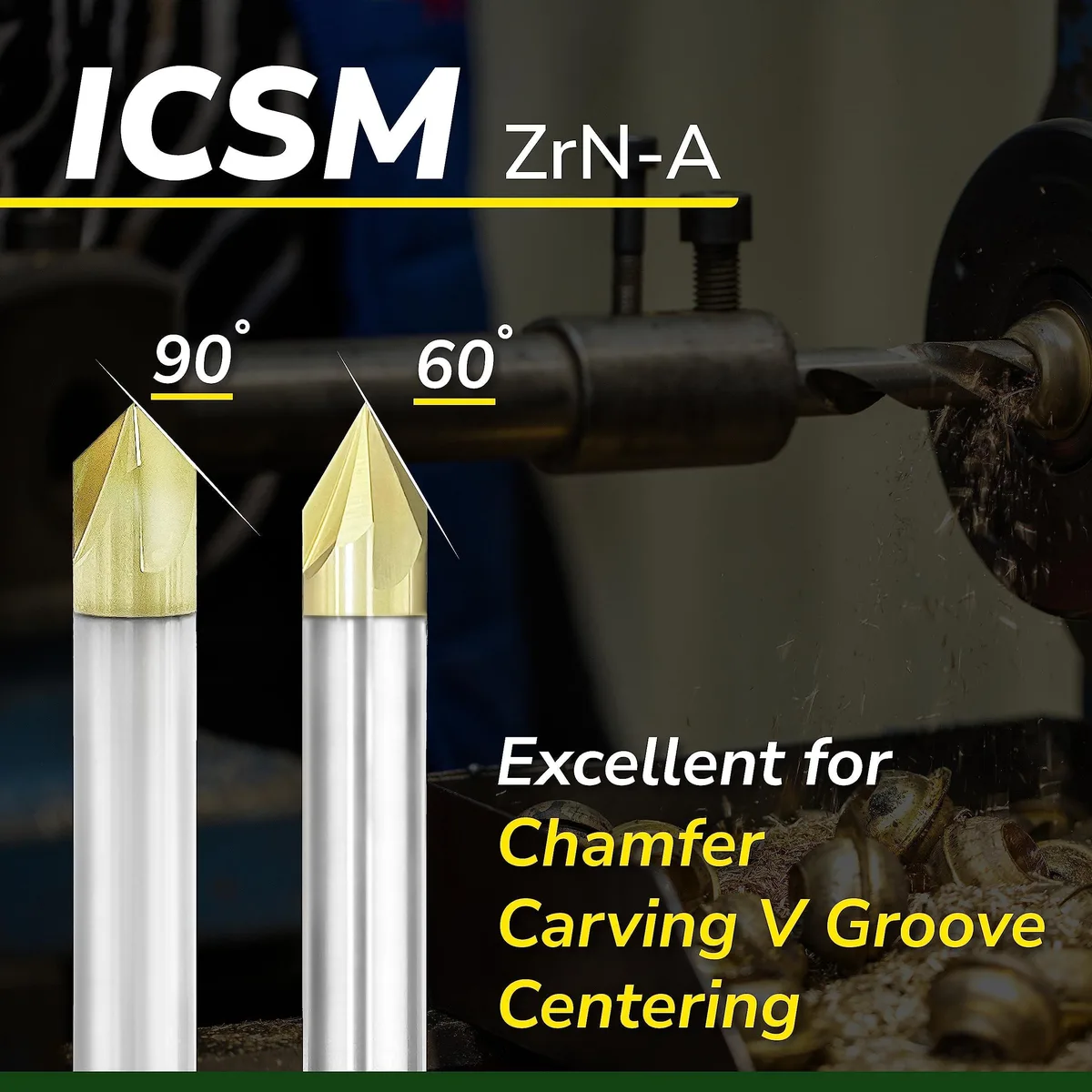

  • 60° V-groove geometry handles chamfering, carving and centring tasks
  • Four flutes on 1/4" shank give stable chip evacuation

General-purpose carbide chamfer mill

The Speed Tiger ICSM0601-4-ZrN-A is a 60-degree V-groove end mill built for chamfering, carving and centring operations. It addresses machinists working with wood, aluminium, copper, MDF, carbon steels up to HB225, alloy steels up to HB325, pre-hardened steels up to HRC45 and cast iron. The 1/4-inch shank and 2-inch overall length suit standard collets on CNC routers and milling machines.

Sustained cutting in hard materials

Micro-grain carbide gives the cutter high toughness and wear resistance so it holds geometry during extended passes in hardened steels up to HRC45. The four-flute design distributes chip load evenly, reducing vibration when the tool stays engaged for long periods. Correct spindle speed and feed rate remain essential to prevent breakage and maintain performance over the full job.

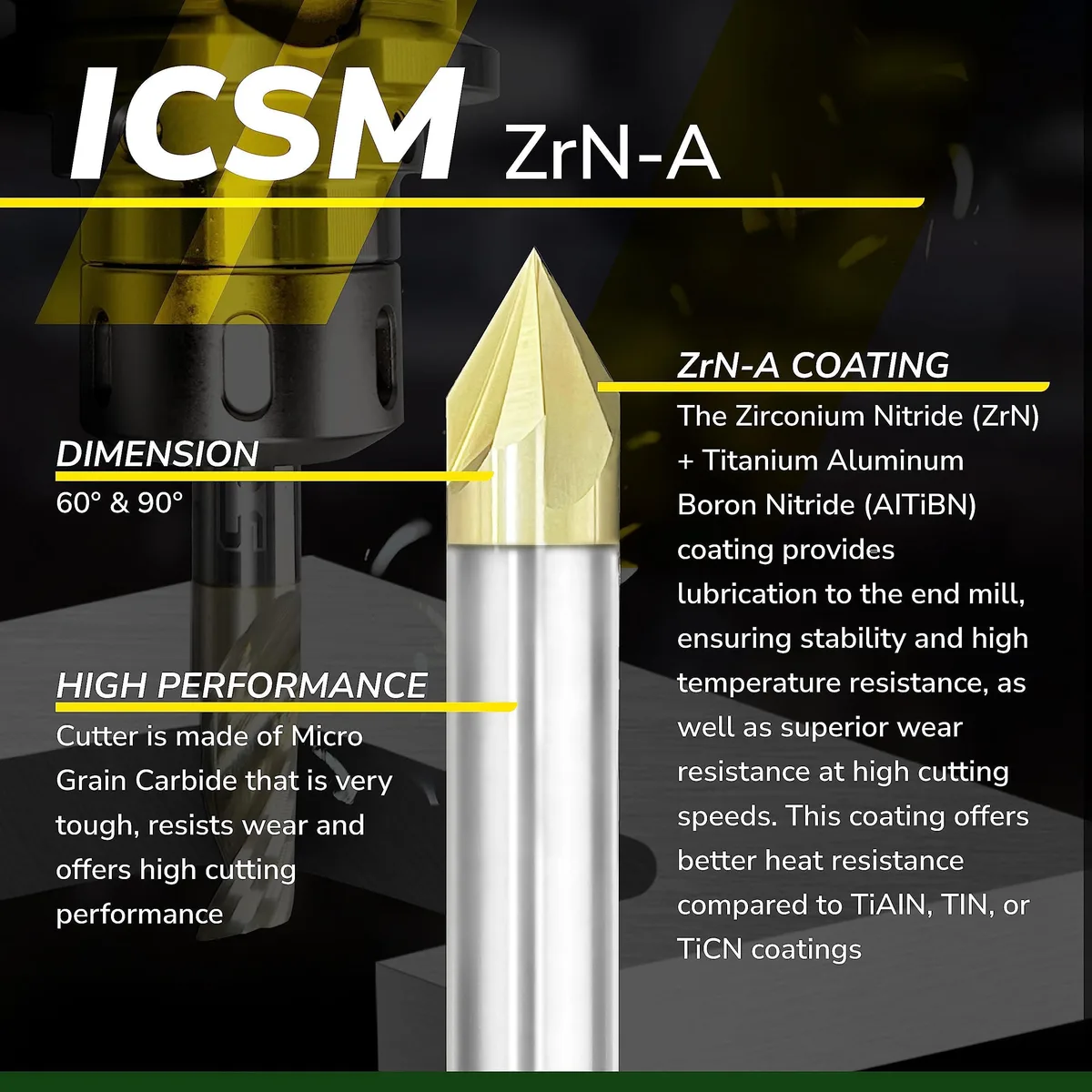

ZrN-A coating for thermal stability

A zirconium nitride plus aluminium titanium boron nitride coating lubricates the flutes, improving stability at elevated temperatures and delivering superior wear resistance at high cutting speeds. The coating offers better heat resistance than TiAlN, TiN or TiCN alternatives, helping the tool run cooler and quieter during normal production runs.

Highlights

  • Cuts wood, aluminium, copper, MDF and steels up to HRC45
  • ZrN-A coating resists heat better than TiAlN, TiN or TiCN
  • Micro-grain carbide stays sharp in hardened and pre-hardened steels
  • 60° V-groove geometry handles chamfering, carving and centring tasks
  • Four flutes on 1/4" shank give stable chip evacuation

Specifications

BrandSpeed Tiger
ModelICSM0601-4-ZrN-A
TypeEnd Mills
Size/Dimensions1/4 In
MaterialCarbide
Selling Unit1

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the ZrN-A coating handle during long chamfering runs?

The ZrN-A coating lubricates the cutter for stability at high temperatures and gives better heat resistance than TiAlN, TiN or TiCN coatings.

What spindle speed and feed rate must my machine provide to run this 60-degree 4-flute end mill without breakage?

Correct spindle speed and feed rate are required for best performance and to avoid breakage; contact the seller for the recommended parameters.

Will this 1/4-inch shank chamfer mill fit the collets I already use for my other 1/4-inch shank carbide tools?

Yes, the 1/4-inch shank diameter matches standard 1/4-inch collets used with other carbide end mills.
