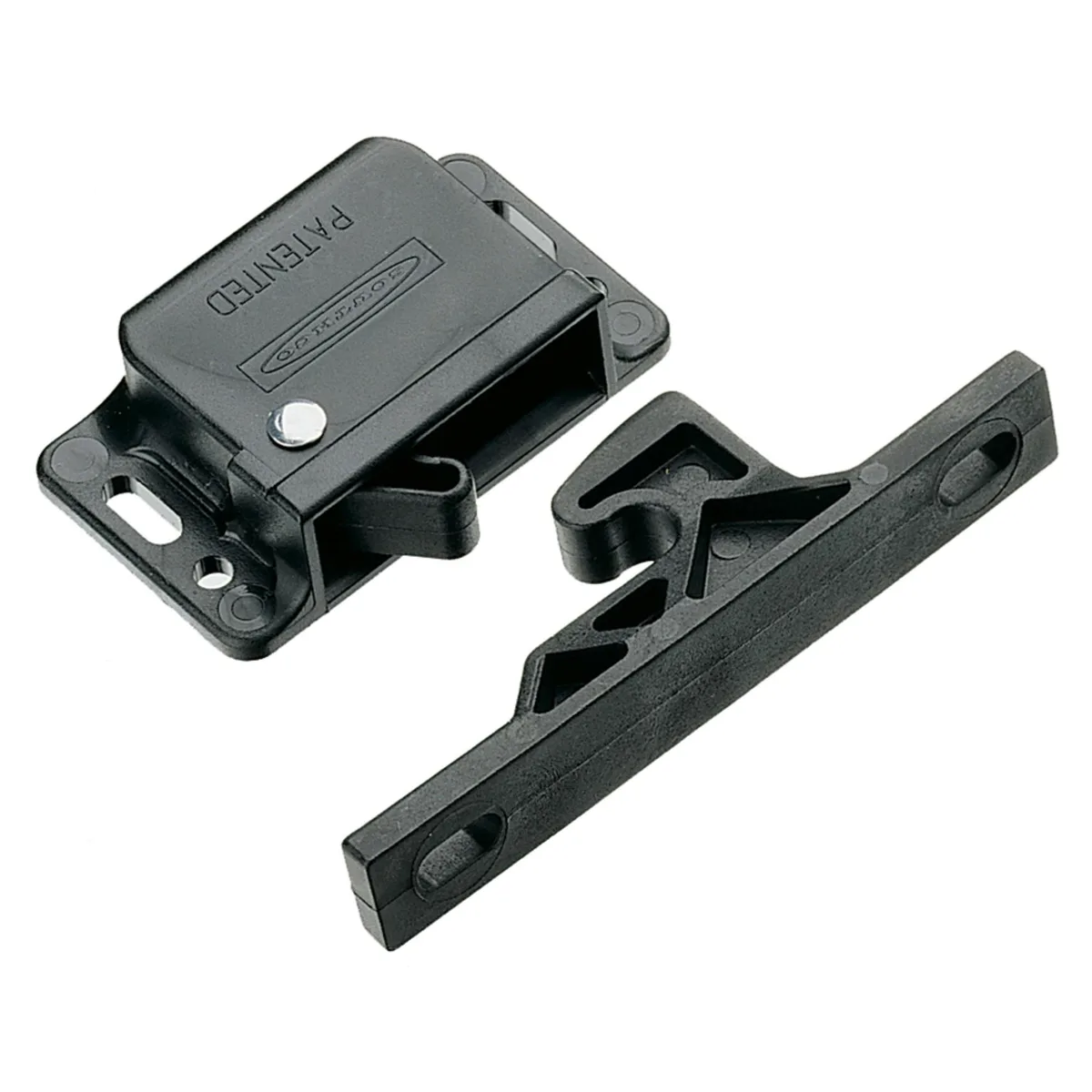

Black side-mount grabber catch latch, spring-loaded over-center design, PC/ABS body

Southco

Southco Grabber Catch Latch Side Mount Black 44N (10lbf)

SKU CH-XANW-4FXPS

Spring-loaded over-center latch with catch and keeper, 44N pull-up force, operates from -30°C to 60°C

  • TypeAccessories
  • Spring-loaded over-center action for secure latching
  • One-piece assembly includes both catch and keeper
  • Black PC/ABS construction resists corrosion and wear
  • Operates reliably from -30 °C to 60 °C
  • UL94-HB flammability rating meets safety standards

Southco Grabber Catch Latch

The Southco Grabber Catch Latch is a side-mount latch assembly designed for marine applications. It uses a spring-loaded over-center mechanism to secure doors or hatches. The unit includes both catch and keeper in a single black PC/ABS housing. It suits builders who need a compact, corrosion-resistant fastening solution.

Pull-up force rated at 44N (10lbf)

The latch delivers a pull-up force of 44N (10lbf) and operates reliably from -30ºC (-20ºF) to 60ºC (140ºF). Its UL94-HB flammability rating confirms baseline fire performance for enclosed marine spaces. The polymer construction resists UV exposure and salt spray during extended use. It is not for buyers who need a higher holding force or a metal-bodied latch.

Side-mount installation with keeper orientation

Install by orienting the keeper so its arrow points toward the cam, then mount to the door and adjust for smooth latching. A minimum clearance from the frame or mounting surface is required for proper engagement. Misaligned keeper orientation is the most common cause of binding or incomplete closure. The one-piece assembly reduces loose parts but demands accurate hole placement.

Highlights

  • Spring-loaded over-center action for secure latching
  • One-piece assembly includes both catch and keeper
  • Black PC/ABS construction resists corrosion and wear
  • Operates reliably from -30 °C to 60 °C
  • UL94-HB flammability rating meets safety standards

Specifications

TypeAccessories

Questions about this item

How much heat can the black PC/ABS latch handle before it softens?

The latch is rated for continuous operation up to 60°C (140°F) and carries a UL94-HB flammability rating.

What mounting hardware do I need to supply myself?

You must provide the screws or rivets to fasten both the catch and keeper to your door and frame.

Will the 44 N pull-up force still hold if my door panel warps slightly over time?

The spring-loaded over-center action tolerates some misalignment, but the keeper arrow must still point toward the cam for reliable latching.
