Sony SSC-E453 silver box CCTV camera with CS lens mount

Sony

Sony SSC-E453 540 TVL SuperExwave analog camera

SKU CH-C9NQ-6T3AP

Analog CCTV box camera with 1/3" SuperExwave CCD delivering 540 TVL resolution and 0.55 lux sensitivity

  • High sensitivity in low light at 0.55 lux F1.2
  • High horizontal resolution of 540 TV lines for detailed images
  • New SuperExwave CCD technology enables superior image quality
  • Flexible power options with AC 24V or DC 12V operation
  • Wide electronic shutter range from 1/60 to 1/100,000 second

Sony SSC-E453 SuperExwave analog camera

The Sony SSC-E453 is a new 1/3" CCD box camera delivering 540 TV lines of horizontal resolution. It uses SuperExwave technology with 768 by 494 picture elements for clear surveillance footage. The unit accepts CS-mount lenses and operates on AC 24 V or DC 12 V power.

Suits fixed-site CCTV installs needing 540 TVL.

This camera fits installers replacing an SSC-DC393 or building a traditional analog CCTV system with a DVR. It does not suit buyers who need IP streaming, PoE power, or onboard recording. Low-light coverage down to 0.3 lux at 30% video meets standard night monitoring.

Horizontal resolution 540 TV lines decides fit

The 540 TV line rating is the key spec that matches the camera to a DVR and monitor chain capable of resolving that detail. A lower-resolution recorder would waste the sensor, while a higher-spec system would need a sharper camera. Choose based on the line count your infrastructure supports.

Highlights

  • High sensitivity in low light at 0.55 lux F1.2
  • High horizontal resolution of 540 TV lines for detailed images
  • New SuperExwave CCD technology enables superior image quality
  • Flexible power options with AC 24V or DC 12V operation
  • Wide electronic shutter range from 1/60 to 1/100,000 second

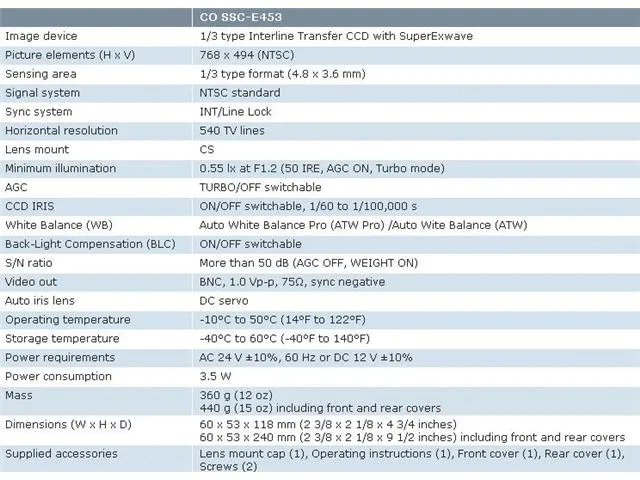

Specifications

BrandSony
ModelSSC-E453

Questions about this item

What power supply do I need to run the SSC-E453 camera?

The camera accepts AC 24 V or DC 12 V, both with a 10 % tolerance, so a matching 24 V AC transformer or 12 V DC supply is required.

Will my existing CS-mount lenses fit the SSC-E453?

Yes, the camera uses a standard CS lens mount, so any CS-mount lens you already own will attach directly.

How can I verify the camera is delivering its rated 540 TV lines after installation?

Point the camera at a high-contrast resolution chart and confirm the on-screen image resolves 540 horizontal TV lines at the specified lighting level.
