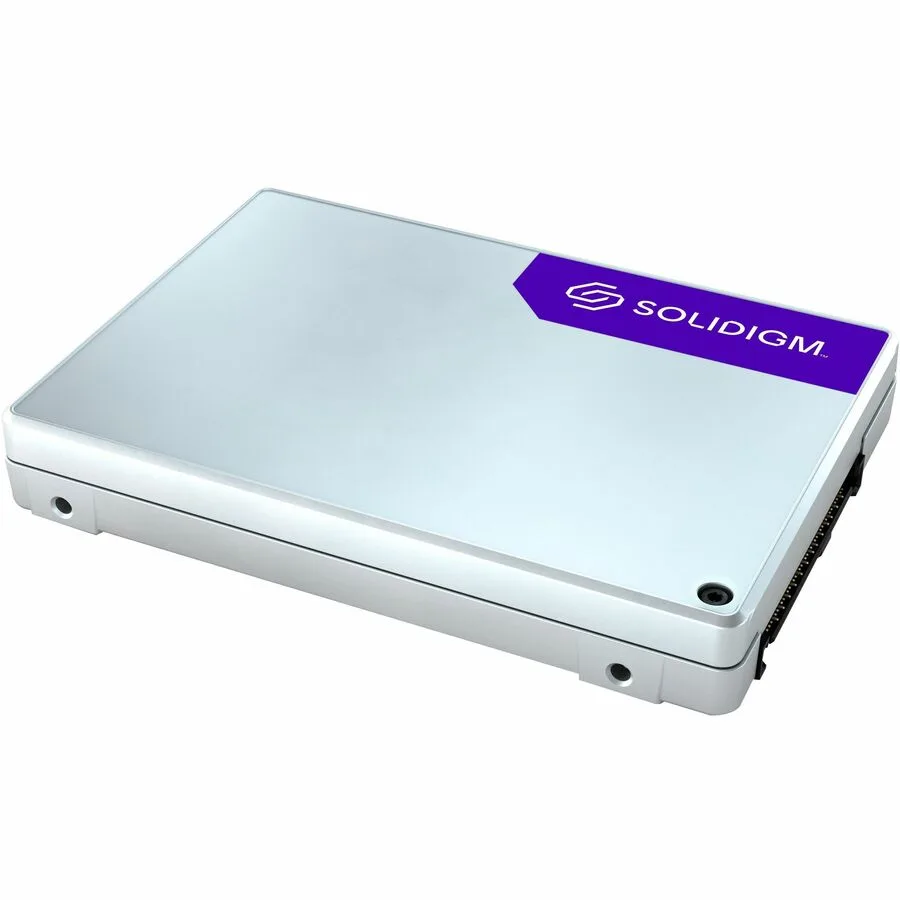

A silver rectangular 2.5 inch U.2 15mm enterprise SSD with label showing model and capacity

Solidigm

Solidigm D5-P5430 3.84TB U.2 15mm Enterprise SSD SBFPF2BU038TOP1

SKU CH-MBF9-ZGTE1 MPN SBFPF2BU038TOP1

A 3.84 TB U.2 15 mm enterprise SSD delivering 5,200 MB/s sequential reads and 516,000 random-read IOPS on a PCIe 4.0 x4 link

  • Form FactorU.2 15mm
  • Capacity3.84TB
  • Memory Components192L QLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 5200 MBps
  • Max Sequential WriteUp to 900 MBps

Option 3.84TB U.2 Opal

Show 14 more configurations
  • 84 TB capacity stores massive datasets on a single drive
  • PCIe 4.0 x4 interface delivers up to 5200 MBps sequential read speed
  • 516000 random read IOPS accelerates latency-sensitive workloads
  • Opal encryption protects data at rest without performance loss
  • 2,000,000-hour MTBF rating supports continuous data-centre operation

Capacity and Interface

The Solidigm D5-P5430 is a 3.84TB enterprise SSD built for read-intensive data-centre workloads. It uses a PCIe 4.0 x4 interface in a U.2 15mm form factor and is suited for servers that need high-capacity flash storage.

Build Quality and Mounting

The 15mm z-height fits standard 2.5-inch U.2 drive bays with appropriate backplane clearance. Opal security is supported for hardware-based encryption. The drive weighs 150g and is rated for 1,000 G shock resistance and 2.17 GRMS operating vibration.

Endurance Metric

Endurance is rated at up to .55 DWPD with 3.8 PBW total bytes written, a figure that determines whether the drive meets a given write workload. Random write performance reaches 54,500 IOPS at QD256 while sequential write peaks at 900 MBps.

Highlights

  • 84 TB capacity stores massive datasets on a single drive
  • PCIe 4.0 x4 interface delivers up to 5200 MBps sequential read speed
  • 516000 random read IOPS accelerates latency-sensitive workloads
  • Opal encryption protects data at rest without performance loss
  • 2,000,000-hour MTBF rating supports continuous data-centre operation

Specifications

BrandSolidigm
ModelD5-P5430
Part NumberSBFPF2BU038TOP1
Form FactorU.2 15mm
Capacity3.84TB
Memory Components192L QLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 5200 MBps
Max Sequential WriteUp to 900 MBps
4KB Random Read516000 IOPS (4K, QD256)
4KB Random Write54500 IOPS (4K, QD256)
EnduranceUp to 0.55 DWPD, 3.8 PBW
MTBF2,000,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)13W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight150g +/-10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What sequential write speed does the PCIe 4.0 x4 interface cap the D5-P5430 at?

The drive reaches up to 900 MBps sequential write over its PCIe 4.0 x4 link.

Does the 15 mm U.2 form factor fit a standard 2.5-inch 7 mm bay?

No, the 15 mm height requires a 2.5-inch bay that accepts 15 mm drives or a U.2 backplane with 15 mm clearance.

How is the D5-P5430 installed in a server, and which step is often missed?

Slide the drive into a U.2 hot-swap tray until the connector seats, then lock the tray lever; the step often missed is fully engaging the lever to secure the power and data connection.
