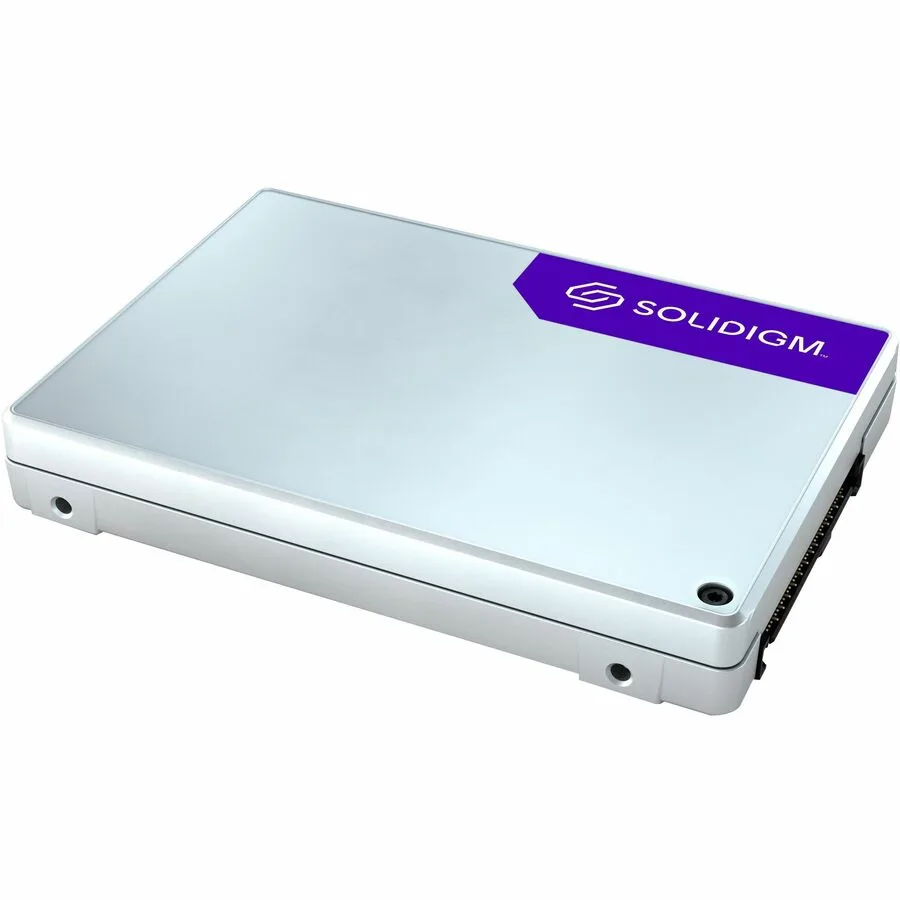

A 2.5 inch U.2 fifteen millimetre enterprise SSD with a silver metal casing and gold edge connector

Solidigm

Solidigm D5-P5336 SBFPF2BV153TOF1 15.36TB enterprise SSD

SKU CH-HV0B-ZZJBS MPN SBFPF2BV153TOF1

U.2 15mm enterprise SSD stores 15.36TB with PCIe 4.0 speeds up to 7000 MB/s read and FIPS security

  • Form FactorU.2 15mm
  • Capacity15.36TB
  • Memory Components192 L QLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 7000 MBps
  • Max Sequential WriteUp to 3000 MBps

Option 15.36TB U.2 FIPS

Show 21 more configurations
  • Massive 15.36 TB capacity fits more data per drive bay
  • PCIe 4.0 x4 interface delivers up to 7000 MB/s sequential read speed
  • 192-layer QLC 3D NAND enables high-density storage in a 15 mm U.2 form factor
  • FIPS-certified security protects sensitive data at rest
  • 2,000,000-hour MTBF and 1000 G shock rating ensure enterprise-grade reliability

Capacity and form factor

The Solidigm D5-P5336 is a U.2 15mm enterprise SSD with 15.36TB of capacity built on 192 L QLC 3D NAND. It targets data-centre workloads that prioritise high-capacity read performance within a standard 2.5in drive bay.

PCIe 4.0 x4 interface limits

The drive connects through a PCI-Express 4.0 x4 link delivering up to 7000 MBps sequential read and 3000 MBps sequential write. Random read reaches 1005000 IOPS while random write peaks at 29900 IOPS, so write-heavy workloads will saturate well below the interface ceiling.

Endurance rating

Rated at 0.51 DWPD over a 14.7 petabyte written endurance figure the drive suits read-intensive deployments such as content delivery or warm storage. Workloads requiring sustained heavy writes should evaluate higher endurance alternatives.

Highlights

  • Massive 15.36 TB capacity fits more data per drive bay
  • PCIe 4.0 x4 interface delivers up to 7000 MB/s sequential read speed
  • 192-layer QLC 3D NAND enables high-density storage in a 15 mm U.2 form factor
  • FIPS-certified security protects sensitive data at rest
  • 2,000,000-hour MTBF and 1000 G shock rating ensure enterprise-grade reliability

Specifications

BrandSolidigm
ModelD5-P5336
Part NumberSBFPF2BV153TOF1
Form FactorU.2 15mm
Capacity15.36TB
Memory Components192 L QLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random Read1005000 IOPS (4K, QD256)
4KB Random Write29900 IOPS (16K, QD256)
Endurance0.51 DWPD (16K RW) / 14.7
MTBF2,000,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)21W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight150g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 15.36TB model or a smaller capacity?

This specific part number is the 15.36TB capacity; choose it when your workload needs that raw space, otherwise select a different capacity SKU.

What does the 7000 MBps sequential read figure mean in a real server?

It is the peak throughput the controller can sustain on large-block reads when the PCIe 4.0 x4 link and queue depth are fully saturated.

The drive uses PCIe 4.0 x4 — what does that cap in practice?

The x4 lane width limits the theoretical ceiling to roughly 8 GBps, so the 7000 MBps read and 3000 MBps write ratings already sit near that interface maximum.
