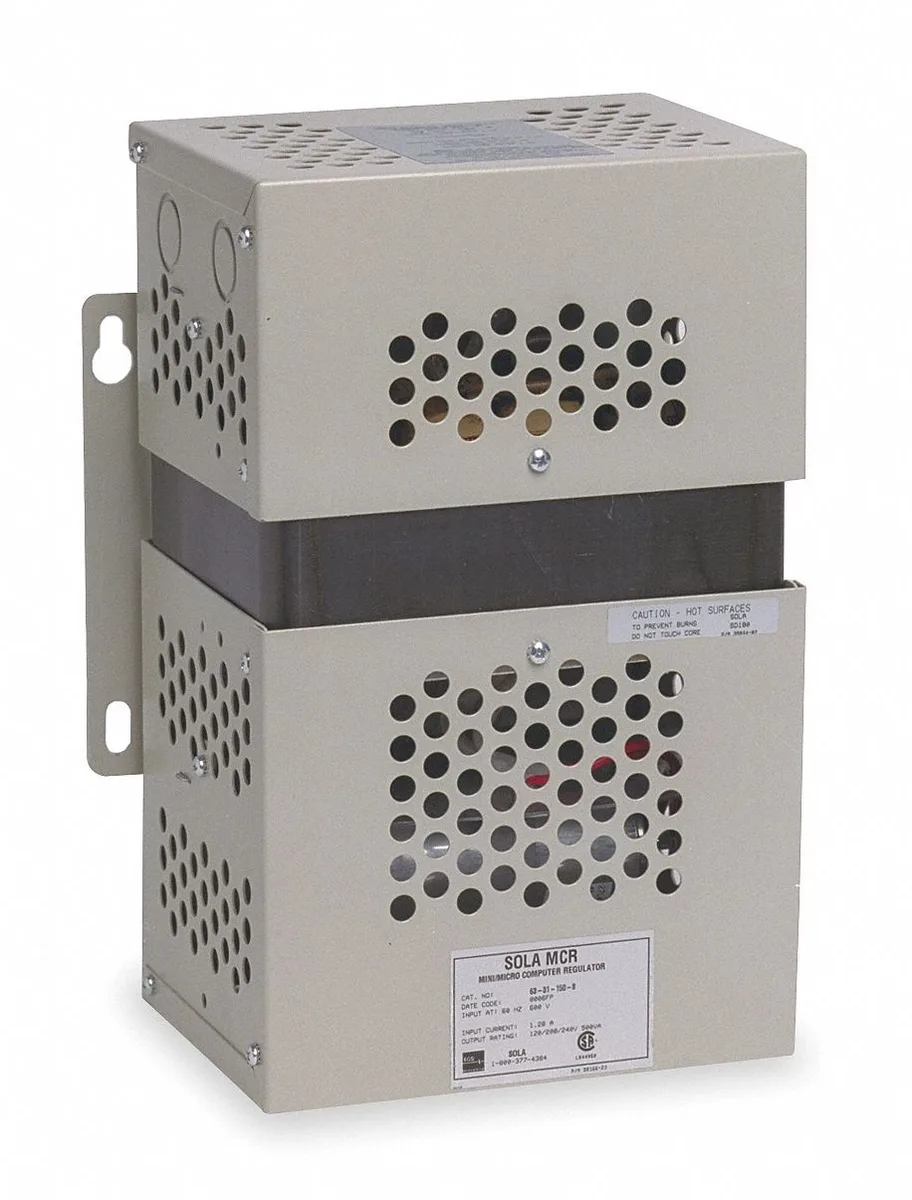

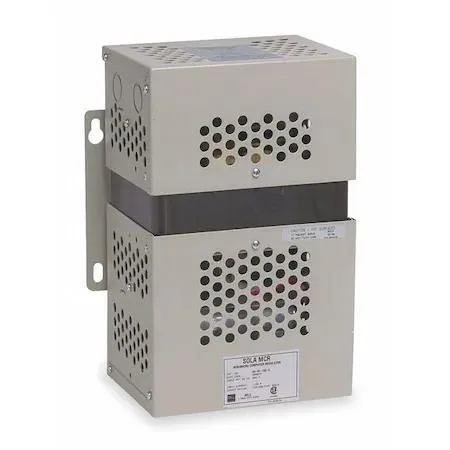

Rectangular metal enclosure with panel-mount flanges, grey industrial finish, no outlets or cord visible

Sola/Hevi-Duty

Sola/Hevi-Duty 63-23-125-4 Power Conditioner 250VA Panel Mount

SKU CH-0SQJ-XH6WF

Panel-mount power conditioner delivers 250 VA regulated 120 V output from 120, 208, 240 or 480 V inputs with harmonic filtering

  • Type3" Harsh Environment, Hook-and-Loop Closure
  • Delivers clean 120 V output from four input voltages
  • Maintains ±3 % regulation for sensitive equipment
  • Filters harmonics to protect connected devices
  • Panel-mount design fits standard enclosures
  • Hardwired 250 VA capacity with no cord needed

Panel-mount power conditioner for industrial

The Sola/Hevi-Duty 63-23-125-4 is a 250VA single-phase power conditioner designed for panel mounting in harsh environments. It accepts input voltages of 120, 208, 240, or 480V AC and delivers a regulated 120V output with +/-3 percent voltage regulation. The hardwired unit features harmonic filtering to protect sensitive downstream electronics.

Passive cooling with no fan noise in normal

With no moving parts the conditioner runs silently and draws 0.5A at 480V, 1.0A at 240V, 1.2A at 208V, or 2.1A at 120V during typical use. Heat dissipates through the steel enclosure measuring 6 in wide, 8 in deep, and 10 in high. The design meets UL 1012 and CSA standards for continuous industrial duty.

Replaces unregulated transformer feeds

Install this unit when existing supply voltage fluctuates beyond the tolerance of PLCs, HMIs, or precision instruments and a clean 120V source is required. It is not suited for applications needing multiple outlet receptacles, higher VA capacity, or output voltages other than 120V.

Highlights

  • Delivers clean 120 V output from four input voltages
  • Maintains ±3 % regulation for sensitive equipment
  • Filters harmonics to protect connected devices
  • Panel-mount design fits standard enclosures
  • Hardwired 250 VA capacity with no cord needed

Specifications

BrandSola/Hevi-Duty
Model63-23-125-4
Type3" Harsh Environment, Hook-and-Loop Closure

Questions about this item

How is the 63-23-125-4 panel-mounted and what wiring step is often missed?

Mount the 6 in × 8 in × 10 in enclosure to the panel, then hardwire the four input voltages (120, 208, 240, 480 V AC) to the primary taps and the 120 V output to the secondary; the step often missed is selecting the correct primary tap for the actual supply voltage before energising.

What maintenance will the 250 VA conditioner need over time?

No user-serviceable parts are inside; periodically verify the input and output connections remain tight and that the enclosure vents stay clear of dust so the harmonic filtering and ±3 % regulation stay within spec.

What is the first limit reached when the 63-23-125-4 runs continuously at full load?

The 250 W output rating is the limiting factor; at 120 V output the maximum continuous current is 2.1 A, and exceeding this will trip the internal protection or degrade regulation.
