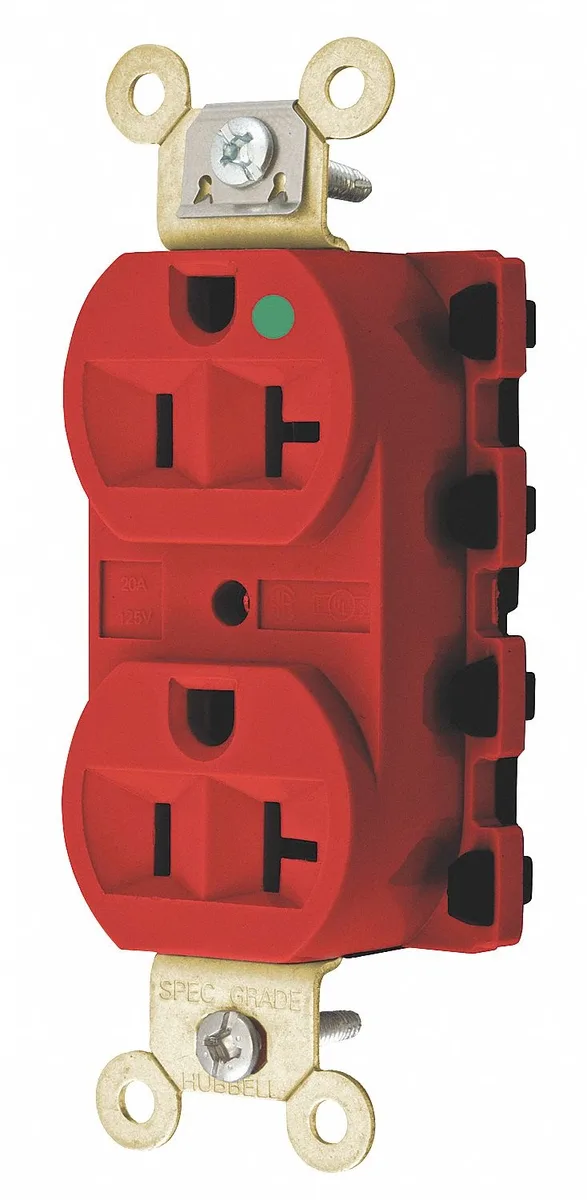

Red duplex receptacle with modular SNAPConnect terminals, flush-mount nylon face, brass contacts, stainless steel grounding clip

Snapconnect

Snapconnect SNAP8300RA 20 A 125 VAC 5-20R Red Receptacle

SKU CH-GRKQ-BEPS9

A 20 A 125 VAC duplex receptacle with SNAPConnect modular wiring, hospital-grade certification and an audible snap connection indicator

  • TypeWiring Devices
  • ColorRed
  • Hospital-grade reliability backed by UL 498 and CSA C22.2 No. 42 certifications
  • SNAPConnect modular design allows rough-in wiring before final receptacle attachment
  • Audible snap confirms secure connection during installation
  • 20 A 125 VAC 5-20R rating supports high-demand commercial circuits
  • Nylon housing with brass contacts and stainless steel self-grounding clip withstands -40 °C to 75 °C operation

Hospital-grade 20 A modular receptacle

The Hubbell SNAP8300RA is a 20 A, 125 VAC duplex receptacle built for modular wiring systems. It uses SNAPConnect technology so the connector can be fitted during rough-in and snapped on after the wall is finished. The red nylon face and housing meet hospital-grade Federal Specification and carry UL, CSA and NEMA WD-6 listings.

Installers needing fast, code-compliant rough-in

Electricians working on commercial or high-traffic projects benefit from the audible snap that confirms a secure connection and the self-grounding stainless-steel clip. The device is not suited for residential DIYers who prefer traditional pigtail wiring or for circuits requiring a different NEMA configuration or amperage rating.

SNAPConnect modular back-wire termination

The receptacle terminates with a modular connector that accepts #12 AWG conductors and locks into the body with an audible click. This single wiring method determines whether the part fits the project’s rough-in schedule and inspection requirements.

Highlights

  • Hospital-grade reliability backed by UL 498 and CSA C22.2 No. 42 certifications
  • SNAPConnect modular design allows rough-in wiring before final receptacle attachment
  • Audible snap confirms secure connection during installation
  • 20 A 125 VAC 5-20R rating supports high-demand commercial circuits
  • Nylon housing with brass contacts and stainless steel self-grounding clip withstands -40 °C to 75 °C operation

Specifications

BrandHUBBELL WIRING DEVICE-KELLEMS
TypeWiring Devices
ColorRed

Questions about this item

How do I wire the SNAPConnect SNAP8300RA receptacle during rough-in and when do I attach the device?

Install the modular connector during rough-in using #12 AWG wire, then snap the receptacle onto the connector after the wall is finished; the audible click confirms a secure connection.

What part of the SNAP8300RA may need replacement after extended use in a high-traffic area?

The brass power and ground contacts or the stainless steel self-grounding clip can wear from repeated plug insertions, requiring receptacle replacement to maintain reliable contact.

At what temperature does the SNAP8300RA reach its operating limit during sustained load?

The receptacle is rated for continuous operation up to +75 °C; beyond this temperature the nylon housing and contacts may exceed their certified performance range.
