Snapconnect
Snapconnect SNAP2121PLI Pilot Light Wall Switch 20 A 120/277V AC Ivory
A pilot-light rocker switch rated 20 A at 120/277 V AC with modular wiring and impact-resistant thermoplastic housing, UL listed for industrial use
- Pilot light shows circuit status at a glance
- 20 A rating handles heavy-duty loads reliably
- 120/277 V AC dual voltage fits varied installations
- Modular wiring speeds up mounting and changes
- UL Listed for safety compliance in industrial settings

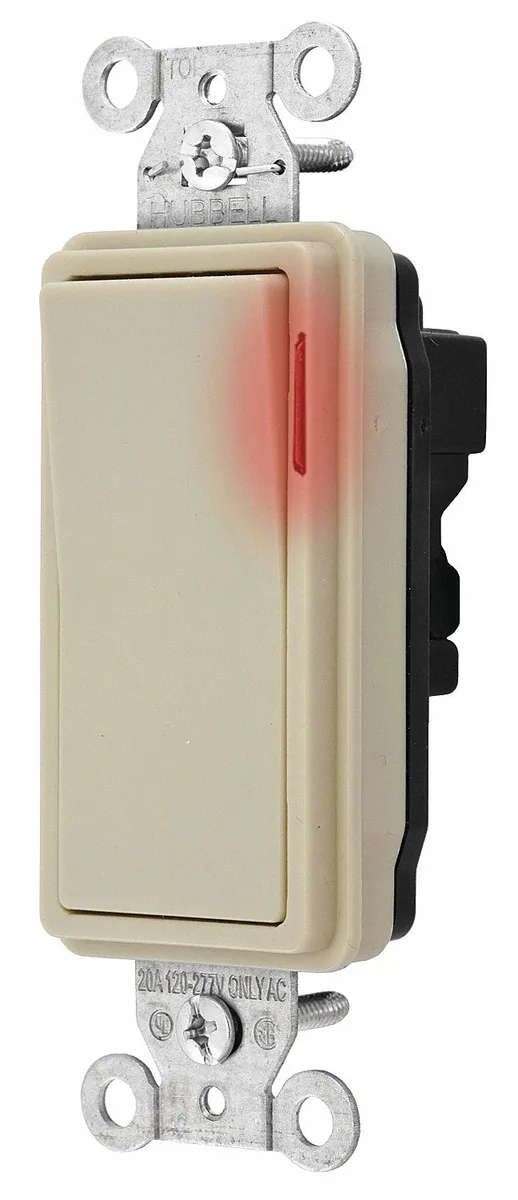

Snapconnect SNAP2121PLI Pilot Light Wall Switch
The Snapconnect SNAP2121PLI is a single-pole rocker switch rated for 20 A at 120/277V AC. It includes an integrated pilot light for status indication in commercial and industrial environments. The thermoplastic housing is impact resistant and grounded for durability. Modular wiring and back-wiring method simplify installation in standard wall boxes.
20 A capacity with 2 hp motor rating
The switch handles resistive and inductive loads up to 20 A and carries a 2 hp horsepower rating for motor control. It operates reliably within a maximum ambient temperature of 167 Degrees F. The maintained switch function keeps the circuit closed until manually toggled. Not suited for applications requiring multi-pole switching or higher current ratings beyond the listed specifications.
Thermals noise and power draw
The device produces no audible noise during normal switching operation. Power consumption is limited to the pilot light indicator with negligible draw on the circuit. Thermoplastic housing dissipates heat effectively within the rated temperature range. No active cooling or external thermal management is required for standard industrial use.
Highlights
- Pilot light shows circuit status at a glance
- 20 A rating handles heavy-duty loads reliably
- 120/277 V AC dual voltage fits varied installations
- Modular wiring speeds up mounting and changes
- UL Listed for safety compliance in industrial settings
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
Will the SNAP2121PLI fit in a standard back-wired box alongside my existing 120 V devices?
Yes, it uses modular back wiring and is rated for 120/277 V AC so it shares the same box space as other 20 A switches.
How can I verify the pilot light is functioning after installation?
The amber pilot light illuminates when the rocker is in the ON position, confirming the circuit is energised.
Does the switch come with the SNAPconnect module or must I order it separately?
The switch includes the modular wiring connector; no extra module is required for standard back-wire installation.
