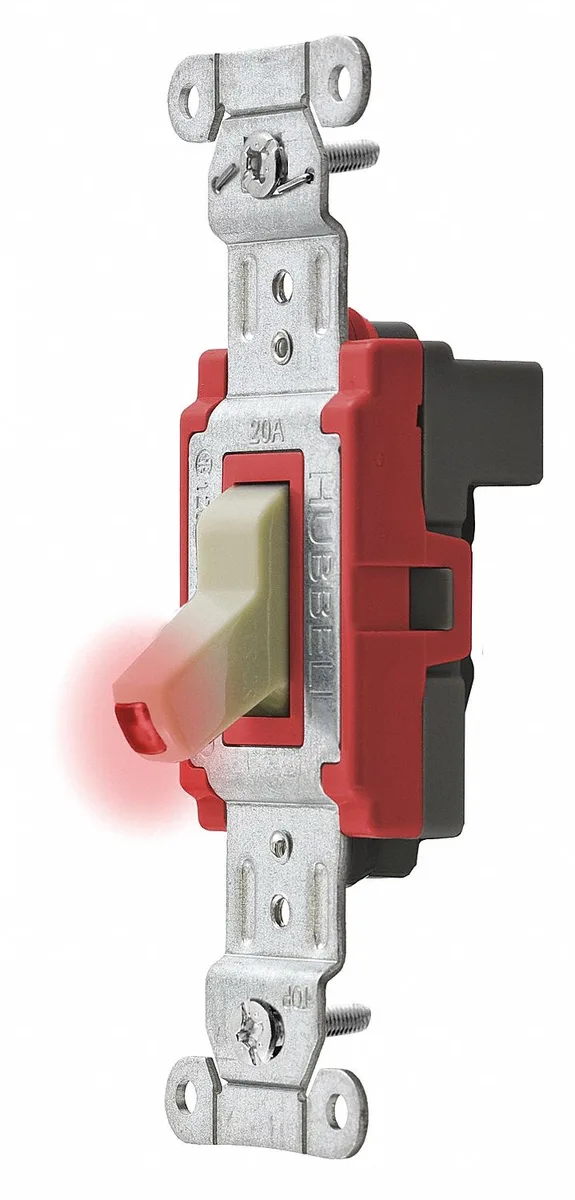

Snapconnect SNAP1221PLI Pilot Lit Contactor 1-Pole 20 A 120/277V AC
A 20 A single-pole switch with a built-in pilot light for 120/277 V AC circuits
- Pilot light shows circuit status instantly
- 20 A rating handles heavy-duty loads reliably
- 120/277V AC suits commercial and industrial circuits
- UL Listed for verified safety compliance
- Modular wiring speeds up installation time
Snapconnect SNAP1221PLI Pilot Lit Contactor
The Snapconnect SNAP1221PLI is a single-pole pilot light contactor rated for 20 A at 120/277V AC. It features a maintained toggle switch function with back-wired modular connections. The thermoplastic housing is impact resistant and UL Listed for industrial applications.
Suited for industrial lighting circuits needing
This contactor suits installers who need a 20 A switching device with an integral pilot light to confirm circuit status. It is not for applications requiring multi-pole control, locking mechanisms, or horsepower ratings above 2 hp at the stated voltages.
20 A current rating at 120/277V AC
The 20 A current rating at 120/277V AC is the primary specification that determines suitability for the connected load. Verify that the circuit demand does not exceed this rating before installation. The device operates up to a maximum temperature of 167 Degrees F.
Highlights
- Pilot light shows circuit status instantly
- 20 A rating handles heavy-duty loads reliably
- 120/277V AC suits commercial and industrial circuits
- UL Listed for verified safety compliance
- Modular wiring speeds up installation time
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
How does the 20 A rating work when the switch is installed in a 120/277V AC circuit?
The 20 A current rating applies across the full 120/277V AC range, so the contactor can carry up to 20 amps whether the supply is 120 volts or 277 volts.
What does the modular wiring interface mean for installation on site?
Modular wiring lets you snap the switch into a compatible Snapconnect rough-in frame without stripping or twisting individual conductors, reducing wiring time.
What wall-box depth is required for the thermoplastic housing to mount properly?
The switch fits a standard single-gang wall box and its back-wiring terminals accept solid or stranded wire up to the device’s rated gauge.
