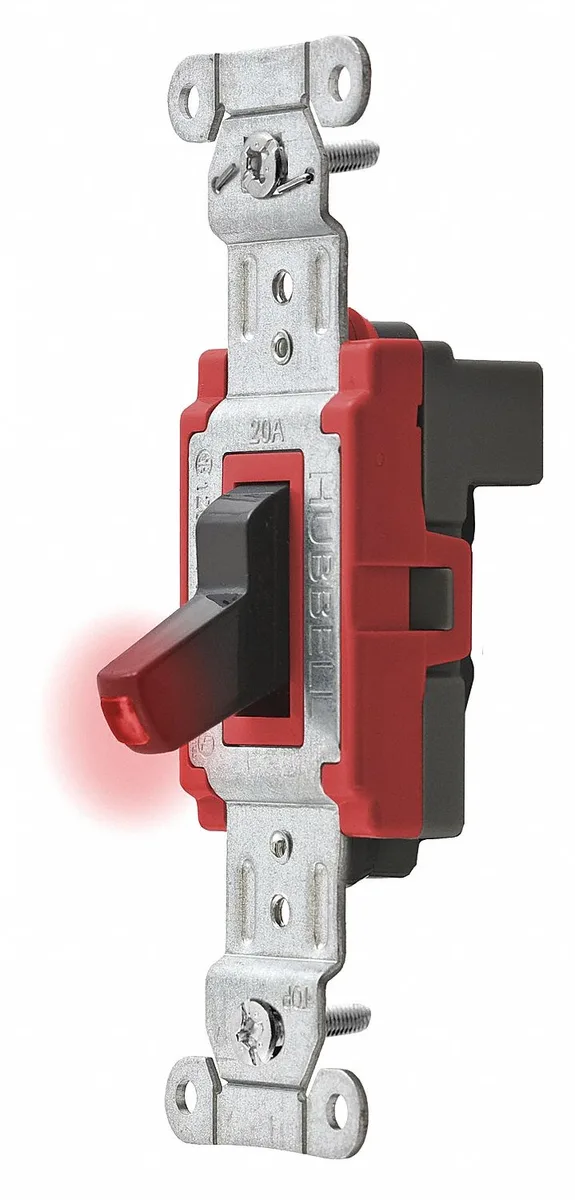

Snapconnect SNAP1221PLBK Pilot Light Wall Switch 20 A 120/277V AC Black
A 20 A single-pole toggle switch with an integrated pilot light for 120/277V AC industrial circuits
- Pilot light shows circuit status at a glance
- 20 A rating handles heavy-duty loads reliably
- 120/277V AC range suits multiple supply voltages
- Modular wiring connection speeds up installation time
- UL listed for verified safety compliance
Snapconnect SNAP1221PLBK Pilot Light Switch
The Snapconnect SNAP1221PLBK is a single-pole pilot light wall switch rated for 20 A at 120/277V AC. It suits industrial environments where a visible indication of circuit status is required. The toggle style provides maintained switching action for lighting or motor loads up to 2 hp. Black thermoplastic housing offers impact resistance for demanding installations.
Modular Wiring Installation
This switch uses a modular wiring method with back-wire connections for efficient termination. The design eliminates traditional screw terminals, reducing installation time in compatible electrical boxes. Ensure the existing wiring system supports the modular connector format before starting work. Incorrect alignment or forced insertion can damage the connector pins and prevent proper electrical contact.
Sustained Load Behaviour
Under continuous operation the switch is rated for a maximum operating temperature of 167 Degrees F. The UL Listed construction maintains stable performance during extended duty cycles at the full 20 A rating. The pilot light remains illuminated whenever the circuit is energised, providing constant visual confirmation without flicker or dimming over long periods.
Highlights
- Pilot light shows circuit status at a glance
- 20 A rating handles heavy-duty loads reliably
- 120/277V AC range suits multiple supply voltages
- Modular wiring connection speeds up installation time
- UL listed for verified safety compliance
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
How can I verify the pilot light illuminates correctly after wiring the SNAP1221PLBK switch?
Apply 120/277V AC power; the integral pilot light should glow when the toggle is in the ON position, confirming the 20 A single-pole circuit is energised.
What components are included with the SNAP1221PLBK and what must be sourced separately?
The switch body with modular wiring terminals and black thermoplastic housing is supplied; back-box, cover plate and 120/277V AC supply conductors are not included.
Which voltage rating should I select for a 277 V lighting circuit?
Choose the 120/277V AC version — it is rated for both voltages and carries a 20 A, 2 hp rating suitable for 277 V industrial lighting loads.
