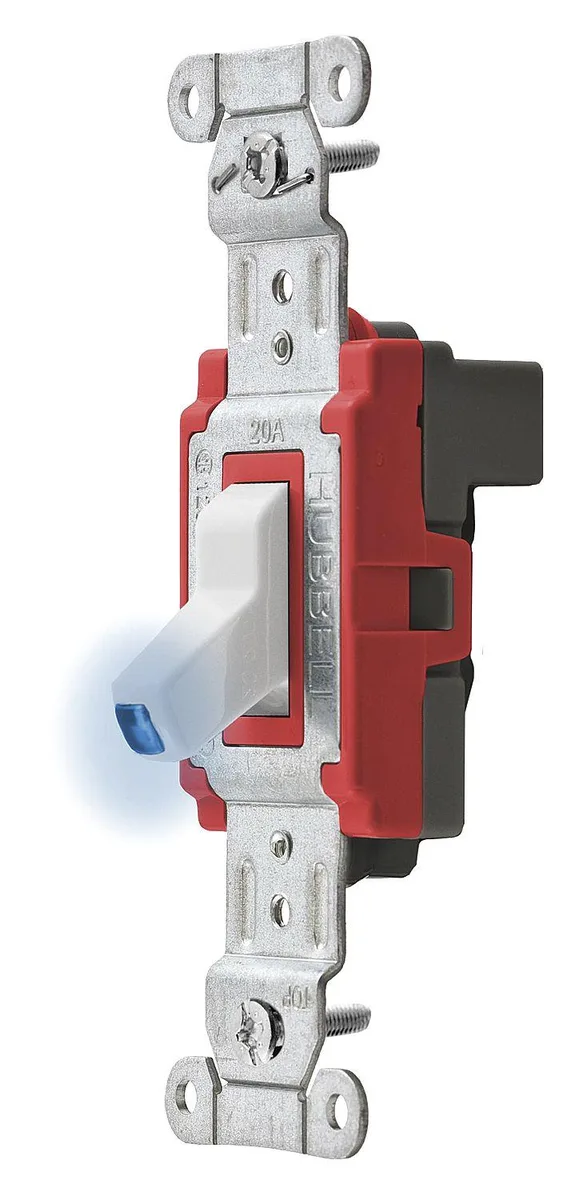

Snapconnect SNAP1221ILW illuminated toggle switch 20 A 120/277 V AC
An illuminated toggle switch rated 20 A at 120/277 V AC with modular wiring and a thermoplastic housing
- Illuminated toggle eases location in dark rooms
- 20 A rating supports 120/277 V AC circuits
- Modular Snapconnect wiring speeds installation
- UL listed for industrial safety compliance
- Impact-resistant thermoplastic housing withstands 167 °F
Industrial illuminated toggle switch
The Snapconnect SNAP1221ILW is a single-pole illuminated toggle switch rated for 20 A at 120/277 V AC. It uses a modular back-wiring method and a thermoplastic housing rated for a maximum operating temperature of 167 degrees F. The switch carries a 2 hp motor rating and is UL Listed for industrial applications.
Suited for maintained lighting circuits
This switch fits installations that require a maintained contact with a visible locator light in white. It is not intended for momentary contact needs or for circuits that exceed the 20 A current rating or the 120/277 V AC voltage range. Installers who need a locking mechanism or a different pole configuration should select an alternative device.
Modular wiring simplifies panel work
The modular wire connection type speeds termination inside compatible enclosures and reduces the need for traditional screw-terminal pigtails. The impact-resistant thermoplastic housing withstands rough-in conditions on site. The switch occupies a standard single-gang opening and frees up wiring space behind the device.
Highlights
- Illuminated toggle eases location in dark rooms
- 20 A rating supports 120/277 V AC circuits
- Modular Snapconnect wiring speeds installation
- UL listed for industrial safety compliance
- Impact-resistant thermoplastic housing withstands 167 °F
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
Do I need a separate mounting strap or yoke to install this 20 A illuminated toggle switch?
The switch uses modular wiring and a thermoplastic housing; it mounts in a standard wall box without a separate strap or yoke.
Will this 120/277 V AC single-pole switch control a legacy incandescent load rated at 2 hp on the same circuit?
Yes, the horsepower rating is 2 hp at the rated voltage, so it can switch that motor load alongside older lighting.
How can I confirm the switch is functioning correctly after wiring it into the back-wire terminals?
The illuminated toggle lights when the circuit is energised and the switch is ON, providing immediate visual confirmation.
