Snapconnect SNAP1221ILR Illuminated Toggle Contactor 20 A Red 120/277V AC
Illuminated toggle contactor rated 20 A at 120/277V AC with red indicator and modular back-wiring for industrial lighting control
- Illuminated toggle shows circuit status at a glance
- 20 A rating handles standard 120/277V AC industrial loads
- 2 hp motor capacity supports heavy-duty equipment
- UL Listed for verified safety compliance
- Impact-resistant thermoplastic housing withstands harsh environments

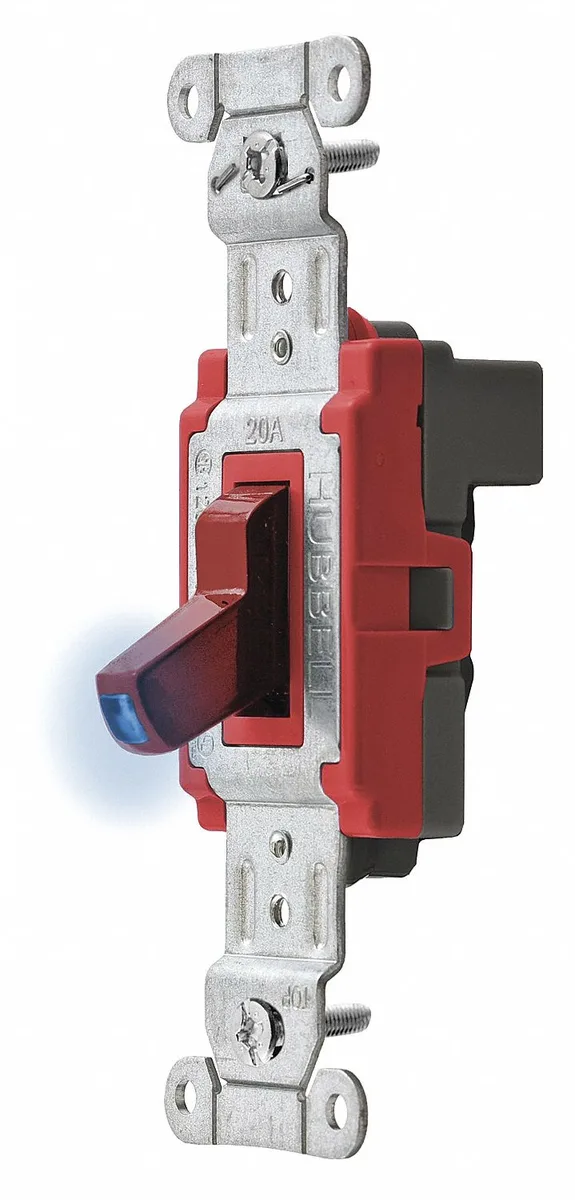

Snapconnect SNAP1221ILR Illuminated Toggle Contactor
The Snapconnect SNAP1221ILR is a 20 A illuminated toggle contactor rated for 120/277V AC circuits. It features a red thermoplastic housing and a maintained single-pole switch function. The unit uses modular wiring with a back-wiring method for installation. It is UL Listed and rated for 2 hp motor loads.
Suited for industrial lighting circuits needing
This contactor suits industrial environments where a clear visual indication of the switch position is required. The illuminated red toggle provides immediate status confirmation in low-light conditions. It is not intended for applications requiring multi-pole switching or locking mechanisms. Buyers needing a non-illuminated switch or a different current rating should look elsewhere.
Fits standard modular wiring systems in industrial
The back-wiring method and modular connection type allow integration into compatible electrical enclosures. The impact-resistant thermoplastic housing withstands demanding conditions up to 167 Degrees F. The single-pole design frees up space compared to multi-gang devices. Ensure the circuit voltage matches the 120/277V AC rating before installation.
Highlights
- Illuminated toggle shows circuit status at a glance
- 20 A rating handles standard 120/277V AC industrial loads
- 2 hp motor capacity supports heavy-duty equipment
- UL Listed for verified safety compliance
- Impact-resistant thermoplastic housing withstands harsh environments
Specifications
| Brand | HUBBELL |
|---|
Questions about this item
Does the Snapconnect SNAP1221ILR require a specific modular wiring base for installation?
Yes, it uses a modular wiring connection type, so a compatible Snapconnect modular wiring base must be purchased separately for proper installation.
Can this 20 A illuminated toggle contactor control a 2 hp motor on a 120/277V AC circuit?
Yes, the switch carries a 2 hp horsepower rating at 120/277V AC, making it suitable for controlling motors up to that rating on compatible circuits.
How can I verify the red illumination is functioning correctly after wiring the switch?
The red LED illuminates when the toggle is in the ON position, confirming power is flowing through the 20 A contactor on the 120/277V AC circuit.
