Full-height PCIe 2.0 x8 network card with two SFP+ ports and installed transceivers, plus low-profile bracket

SMUGDESK

SMUGDESK X520-SR2 10G Dual SFP+ NIC with 2 SR Modules

SKU CH-YF7N-WDVKJ

Dual-port 10GbE fiber adapter with two SR transceivers for up to 300 m multimode links, PCIe 2.0 x8 bus, 9000 MTU jumbo frames and SR-IOV virtualization offload

  • Intel 82599 dual 10G ports with pre-installed SR modules for immediate multimode fiber deployment
  • PCIe 2.0 x8 bus fits x8 or x16 slots and includes both full-height and low-profile brackets
  • SR-IOV and VMDq plus full TCP/UDP/iSCSI/FCoE offload cut CPU load in virtualized storage clusters
  • Open SFP+ cages accept optional LR modules or DAC cables for flexible cabling choices
  • Passive heatsink enables 24/7 operation across Windows Server Linux and VMware ESXi environments

Plug-and-play 10G fiber kit

The SMUGDESK X520-SR2 is a PCIe 2.0 x8 network card built around the Intel 82599 controller with two SFP+ ports. Two 10G multi-mode SR transceivers are pre-installed for immediate LC fiber connectivity. It targets administrators who need a complete short-range 10GbE link without sourcing modules separately.

Fits standard and 2U rack servers

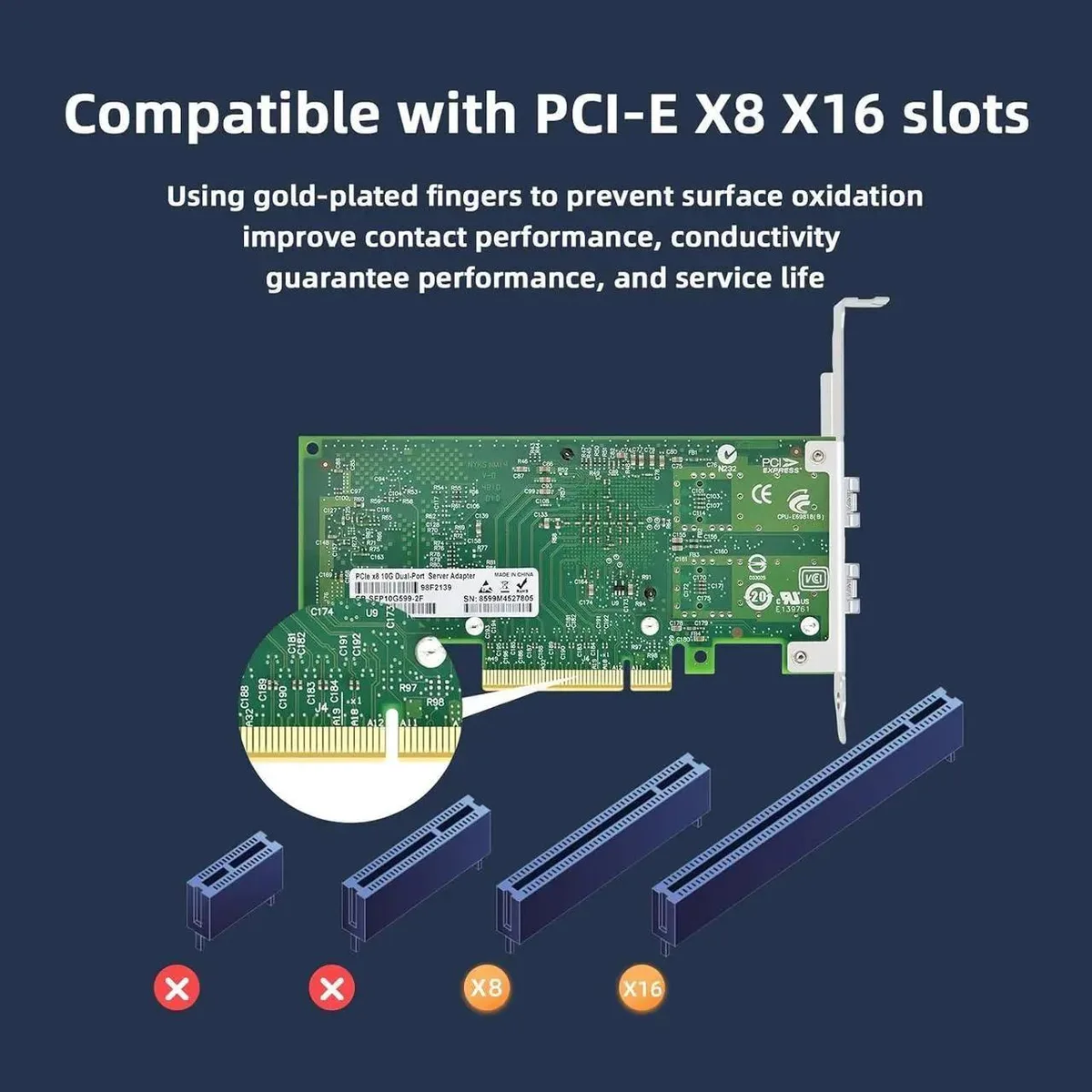

A full-height bracket and a low-profile bracket are included so the card works in regular chassis or slim 2U rack enclosures. The PCIe 2.0 x8 interface is backward compatible with x8 and x16 motherboard slots. A passive heatsink enables continuous 24/7 operation in dense server environments.

Pre-installed SR modules and open SFP+ slots

The bundled SR optics support OM3 multi-mode fiber runs up to 300 metres for rack-to-rack links. Open SFP+ cages accept optional LR single-mode modules or DAC cables for different cabling needs. Hardware offload for TCP, UDP, iSCSI, FCoE, SR-IOV, VMDq, LACP and 9000MTU jumbo frames reduces host CPU load in storage and virtualization clusters.

Highlights

  • Intel 82599 dual 10G ports with pre-installed SR modules for immediate multimode fiber deployment
  • PCIe 2.0 x8 bus fits x8 or x16 slots and includes both full-height and low-profile brackets
  • SR-IOV and VMDq plus full TCP/UDP/iSCSI/FCoE offload cut CPU load in virtualized storage clusters
  • Open SFP+ cages accept optional LR modules or DAC cables for flexible cabling choices
  • Passive heatsink enables 24/7 operation across Windows Server Linux and VMware ESXi environments

Specifications

No published specifications for this item yet.

Questions about this item

How far can the preinstalled SR modules reach over OM3 multimode fiber?

The included SR transceivers support up to 300 meters on OM3 multimode fiber with LC connectors.

What thermal solution does the card use for continuous operation?

A high-efficiency passive heatsink keeps the Intel 82599 controller stable during 24/7 non-stop enterprise running.

Which motherboard slot is required for the PCIe 2.0 x8 interface?

The adapter fits PCIe x8 or x16 slots and includes both full-height and low-profile brackets for standard or 2U chassis.
