SMUGDESK 9Pin Power Reset Switch Test Adapter Board
A compact 9-pin adapter with onboard buttons lets you manually power on, shut down and reset a motherboard without a PC chassis, ideal for bench testing and repair work
- Manual power on/off via onboard buttons
- Reset control without a chassis connection
- Fits standard 9-pin front panel header
- Compact PCB for bench testing and repair
- Compatible with ATX and MATX motherboards
Motherboard Debug Adapter
The SMUGDESK 9Pin Power Reset Switch Test Adapter Board plugs directly onto a standard desktop motherboard front panel header. It provides physical power and reset buttons so technicians and DIY builders can start, restart and shut down a board without a PC chassis. The module is intended for hardware testing, fault diagnosis and bare-board assembly work.
Passive Operation
The adapter draws negligible power from the motherboard header and has no active cooling, so it adds no audible noise or measurable heat during use. Its compact PCB layout keeps the footprint small on a crowded workbench while the clearly labelled pins reduce the chance of misconnection.
Bench Testing Upgrade
This board replaces the makeshift jumper wires or screwdriver shorts often used to trigger a motherboard outside a case. The jump is worth it when you repeatedly power-cycle a board during component validation, BIOS recovery or repair verification and want a reliable, repeatable switch interface.
Highlights
- Manual power on/off via onboard buttons
- Reset control without a chassis connection
- Fits standard 9-pin front panel header
- Compact PCB for bench testing and repair
- Compatible with ATX and MATX motherboards
Specifications
No published specifications for this item yet.
Questions about this item
How do I install the SMUGDESK 9Pin adapter on my motherboard front panel header?

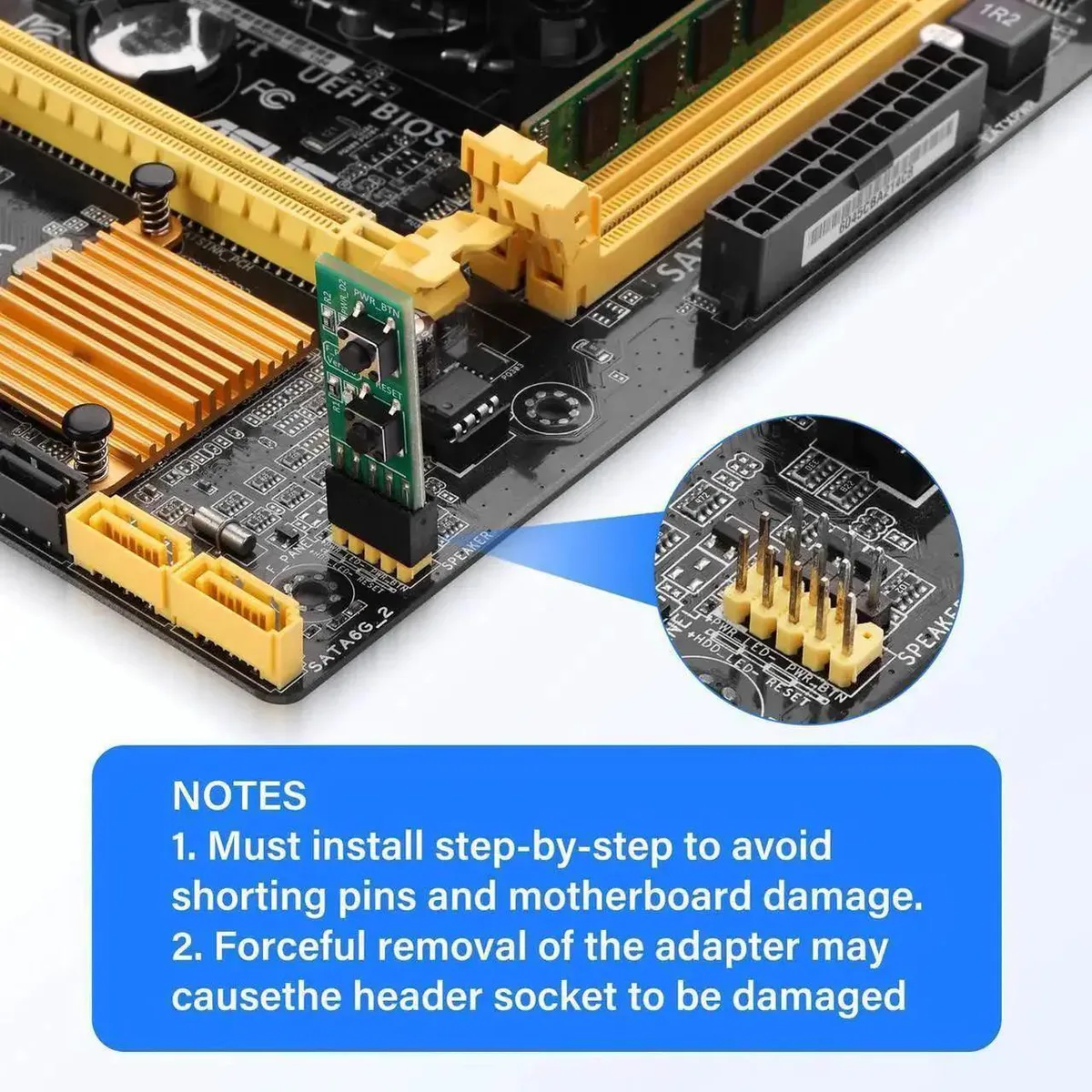

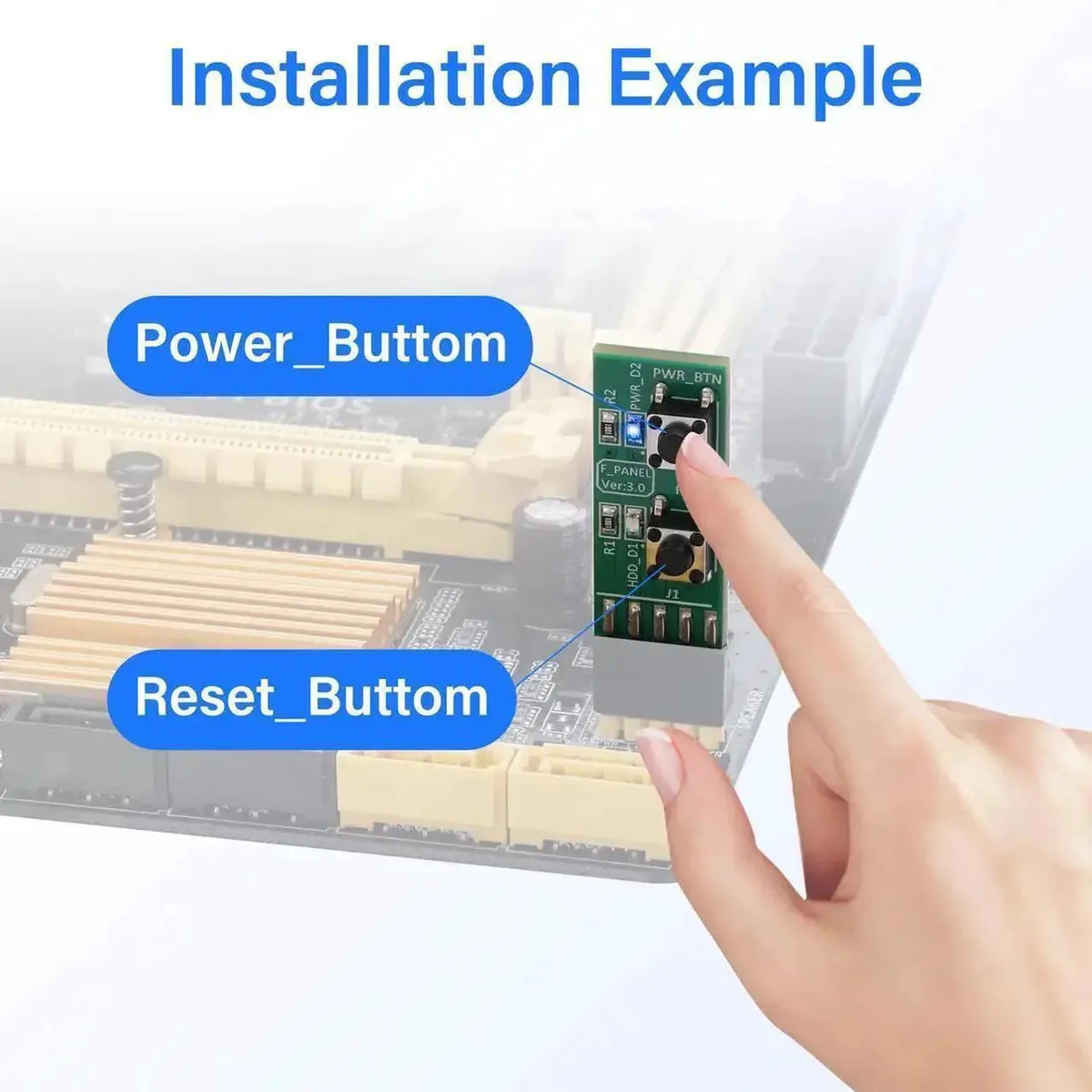

Align the adapter pins with the motherboard 9Pin header using the silk-screen labels for PWR_SW and RST_SW, then press straight down until fully seated. The step often missed is verifying the pin 1 orientation against the board manual before powering on.
What maintenance will this test adapter need over time?
No scheduled maintenance is required. If the tactile switches become unresponsive after heavy use, the whole board is simply replaced; there are no user-serviceable parts or firmware to update.
What is the first limitation I will hit when running the adapter continuously on a test bench?
The limiting factor is the mechanical life of the onboard push-buttons, rated for typical tactile-switch cycles. Extended automated cycling will wear the switches long before the PCB or solder joints degrade.
