Blue Cat6 plenum Ethernet cable on wooden spool

Smartech Cables

Smartech Cables Cat6 Plenum 23AWG 550MHz 1000ft 2 in 1 accessory

SKU CH-EZZF-N7N54

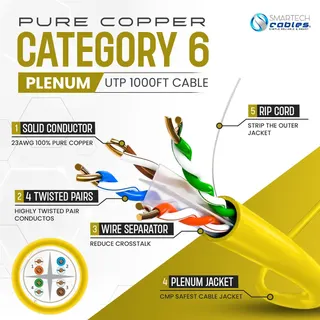

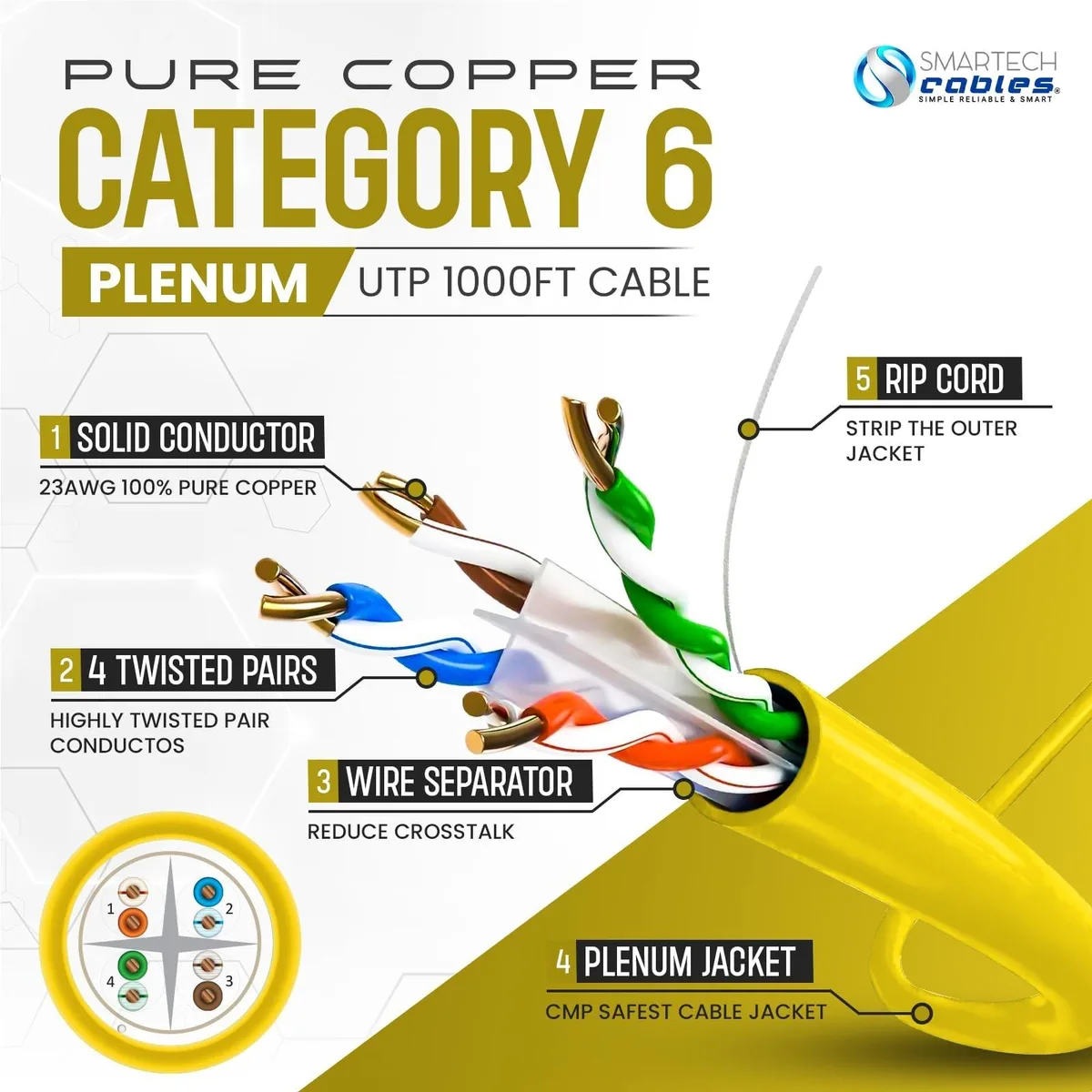

Solid bare-copper Cat6 plenum cable rated for 550 MHz and 10 Gbps over 1000 ft

  • 10 Gbps speed supported by 550 MHz bandwidth
  • 23 AWG solid bare copper conductors for low resistance
  • CMP plenum rating meets fire-safety codes
  • Tested to ANSI/TIA/EIA and DTX-8000 standards
  • 1000 ft pull-box simplifies long-run installations

Plenum-rated Cat6 for commercial installs

This bulk Cat6 cable meets CMP plenum fire-safety requirements for installation in air-handling spaces. It uses 23AWG solid bare copper conductors and is tested to ANSI/TIA/EIA and DTX-8000 standards. The 1000ft pull box suits structured cabling projects in offices and data centres.

550 MHz bandwidth and 10 Gbps limit

The cable is rated for 550 MHz bandwidth and supports up to 10 Gbps speeds over short distances. Category 6 standards generally limit 10 Gbps operation to a maximum of 100 metres. Performance at the top speed drops beyond that length.

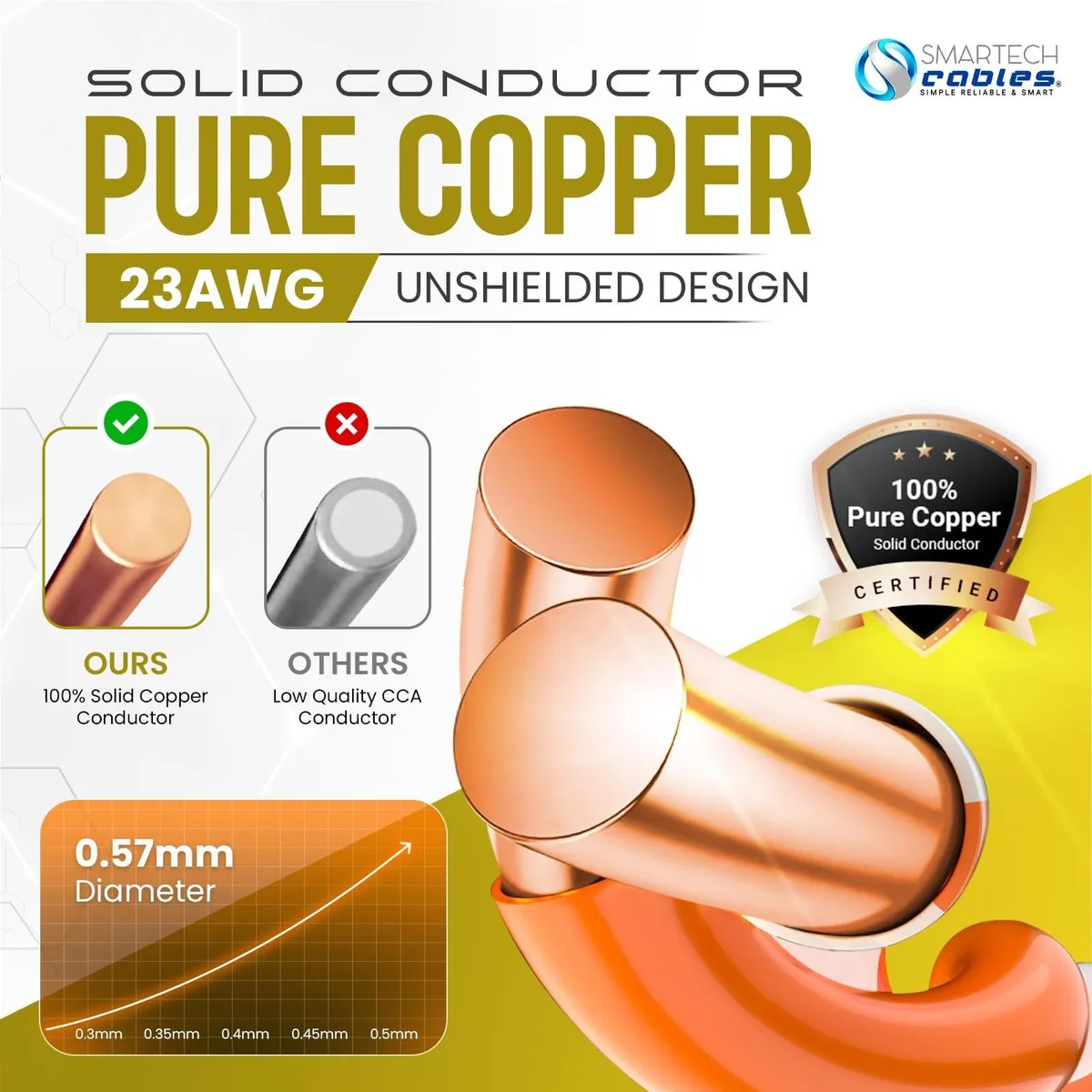

Solid copper core for PoE and long runs

The 23AWG solid bare copper construction provides low resistance for reliable Power over Ethernet, including PoE+ and PoE++ loads. It maintains signal integrity on extended runs better than copper-clad aluminium alternatives. Buyers needing stranded patch leads for flexible desktop connections should choose a different cable type.

Highlights

  • 10 Gbps speed supported by 550 MHz bandwidth
  • 23 AWG solid bare copper conductors for low resistance
  • CMP plenum rating meets fire-safety codes
  • Tested to ANSI/TIA/EIA and DTX-8000 standards
  • 1000 ft pull-box simplifies long-run installations

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 1000ft roll or a shorter length for my installation?

This listing supplies a single 1000ft roll; if your cable runs total less than 1000ft you will have surplus, while larger projects may need multiple rolls.

Will the 550MHz rating actually deliver 10Gbps in my building?

The cable is tested to 550MHz and supports 10Gbps up to 100 metres, provided terminations and installed links meet the same category‑6 standard.

Is the CMP plenum rating required for my office ceiling space?

CMP plenum rating means the jacket meets fire‑safety codes for air‑handling spaces; local building codes dictate whether you must use plenum cable in that area.
