Large flat 86 inch black interactive display with anti-glare screen

SMART Technologies

SMART Technologies GX086-V3 86" 4K interactive digital signage

SKU CH-CDN9-2DX6N MPN GX086-V3

An 86-inch 4K anti-glare interactive display with 400 cd/m² brightness, 60 Hz refresh rate and 8 ms response time for collaborative signage

  • Touchscreen TypeAnti-glare
  • Screen Size86"
  • Maximum Resolution3840 x 2160
  • Refresh Rate60 Hz
  • Viewing Angle178° (H) / 178° (V)
  • Brightness400 cd/m2
  • Crisp 4K Ultra HD detail at 3840 x 2160 resolution
  • Wide 178° viewing angles keep content clear from any position
  • Bright 400 cd/m² panel stays readable in well-lit rooms
  • Fast 8 ms response with 60 Hz refresh for smooth motion
  • Versatile OPS slot plus HDMI, DisplayPort, VGA, USB and network ports

86-Inch 4K Interactive Display

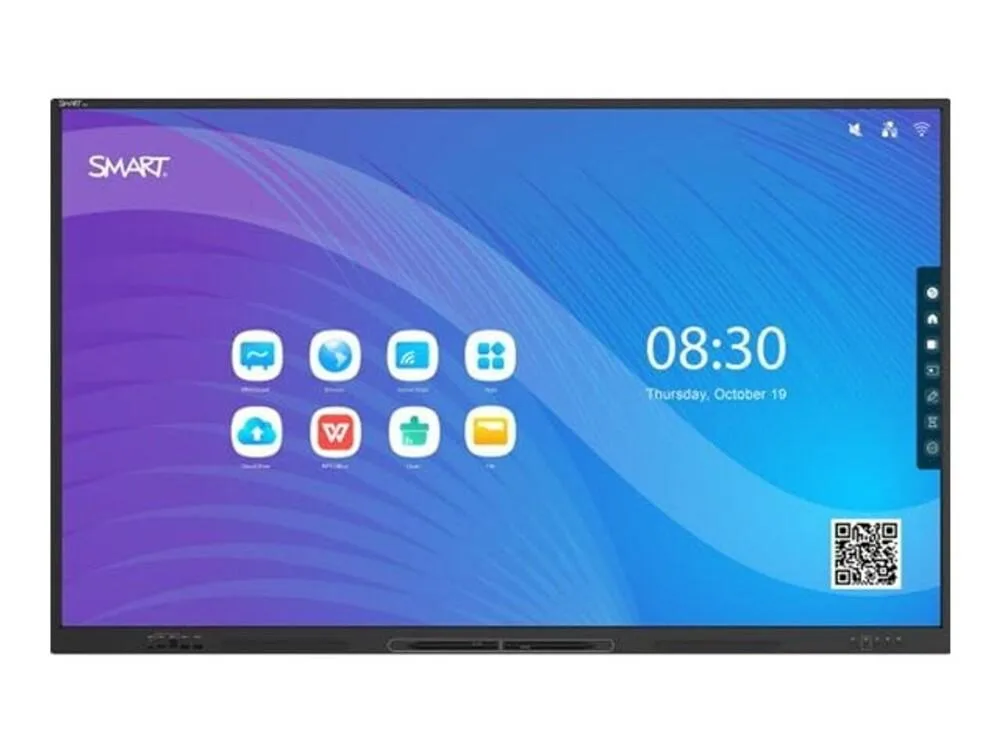

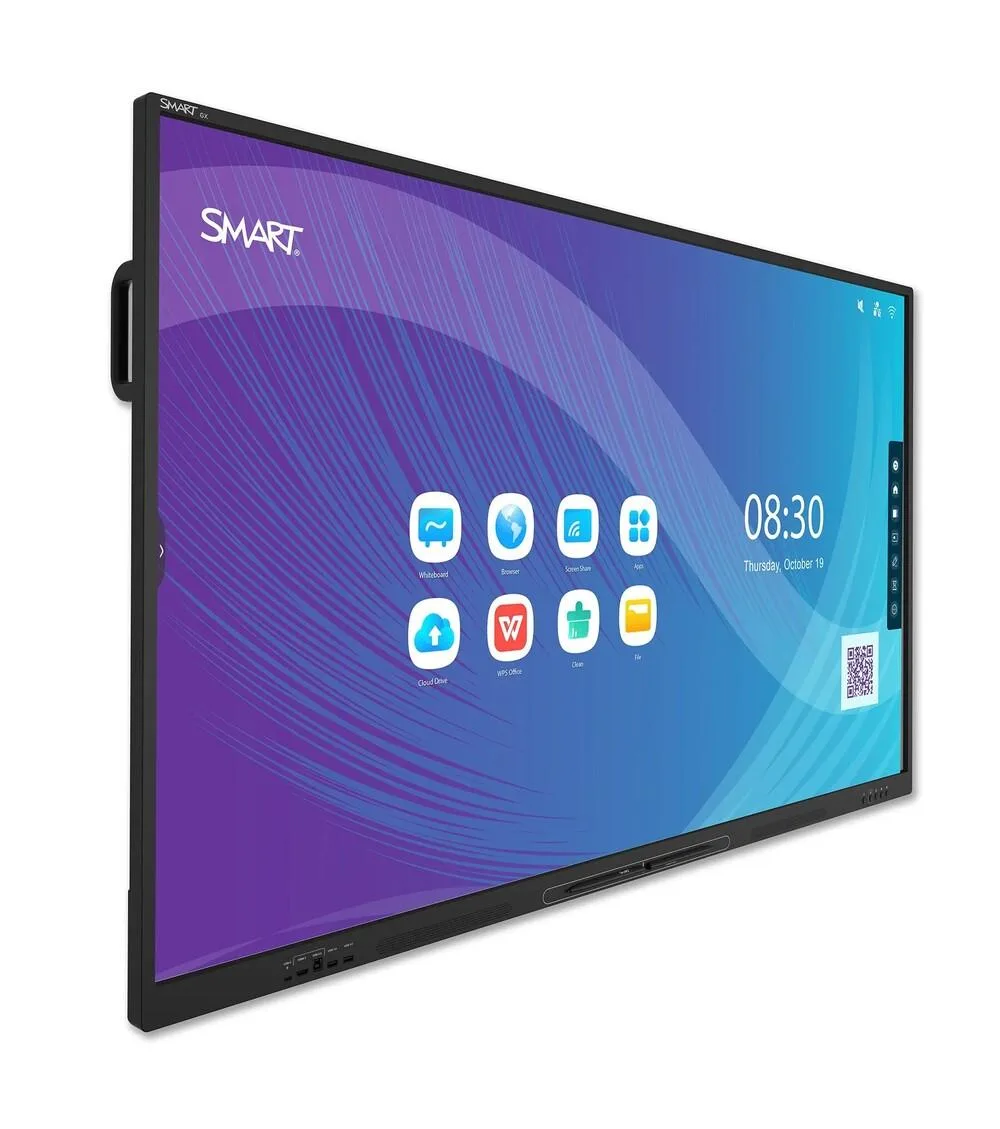

The SMART Board GX086-V3 is an 86-inch 4K Ultra HD interactive display with a flat LED panel. It delivers a maximum resolution of 3840 x 2160 at a 60 Hz refresh rate and 400 cd/m² brightness. The anti-glare touchscreen and wide 178° viewing angles suit shared viewing in meeting rooms or classrooms. Power consumption is rated at 119 Watt.

Suited for Team Collaboration Spaces

This display fits environments that need a large interactive surface with multiple video inputs including four HDMI ports, DisplayPort, and VGA. An OPS PC accessory slot allows an optional compute module to be added. Buyers who require an embedded operating system or integrated whiteboarding software should look at alternative models that include those features.

Anti-Glare Touchscreen Surface

The anti-glare coating reduces reflections under bright lighting while maintaining touch responsiveness. This surface characteristic is the primary factor for spaces with windows or overhead lighting where glare would affect readability and interaction accuracy.

Highlights

  • Crisp 4K Ultra HD detail at 3840 x 2160 resolution
  • Wide 178° viewing angles keep content clear from any position
  • Bright 400 cd/m² panel stays readable in well-lit rooms
  • Fast 8 ms response with 60 Hz refresh for smooth motion
  • Versatile OPS slot plus HDMI, DisplayPort, VGA, USB and network ports

Specifications

BrandSMART Technologies
ModelSMART Board GX (V3)
Touchscreen TypeAnti-glare
Screen Size86"
Maximum Resolution3840 x 2160
Refresh Rate60 Hz
Viewing Angle178° (H) / 178° (V)
Brightness400 cd/m2
Response Time8 Ms
Touchscreen InterfaceOPS PC accessory slot, HDMI, Display Port, VGA, Stereo 3.5 mm, RS-232 (DB-9 connector) , RJ45, USB, S/PDIF optical (fixed)
DisplayPort1
HDMI4
VideoVGA; HDMI; DisplayPort
Power Consumption119 Watt
Shipping weight89.81 kg
Package size1962 × 1172 × 89 mm

Questions about this item

How is the GX086-V3 mounted and what step is often missed?

The display uses an 800 x 600 mm VESA pattern. Installers often forget to verify that the wall or cart can support the 86 inch panel before drilling.

Which part will need replacement first during long-term use?

The LED backlight is rated for typical commercial lifetime; brightness may gradually drop from 400 cd/m2 after many thousands of hours.

What limit appears first when the panel runs continuously at full brightness?

Sustained 400 cd/m2 output at 119 Watt can raise internal temperature, so thermal throttling may reduce brightness before any other limit is reached
