Black PCIe Wi-Fi 6 card with silver heat sink and two antennas

SMA

SMA Wi-Fi 6 AX200 PCIe Adapter with Heat Sink

SKU CH-2DK2-CWPGZ

Adds Wi-Fi 6 and Bluetooth 5.0 to a desktop PC via PCIe, delivering up to 3000 Mbps across 2.4 GHz and 5.8 GHz bands with a built-in heat sink

  • TypePCIE Wi-Fi Adapter
  • ColorBlack
  • Wireless Data Rates3000Mbps
  • InterfacePCI Express
  • Frequency Band2.4 GHz / 5.8 GHz
  • AntennaDual Band Antenna
  • Intel AX200 chip delivers Wi-Fi 6 speeds up to 3000Mbps
  • Dual-band 2.4GHz and 5.8GHz with 2400Mbps on 5.8GHz
  • Heat sink keeps temperatures stable during heavy use
  • Bluetooth 5.0 extends range four times over Bluetooth 4.2
  • MU-MIMO lets the router serve three devices simultaneously

Desktop Wi-Fi 6 Upgrade

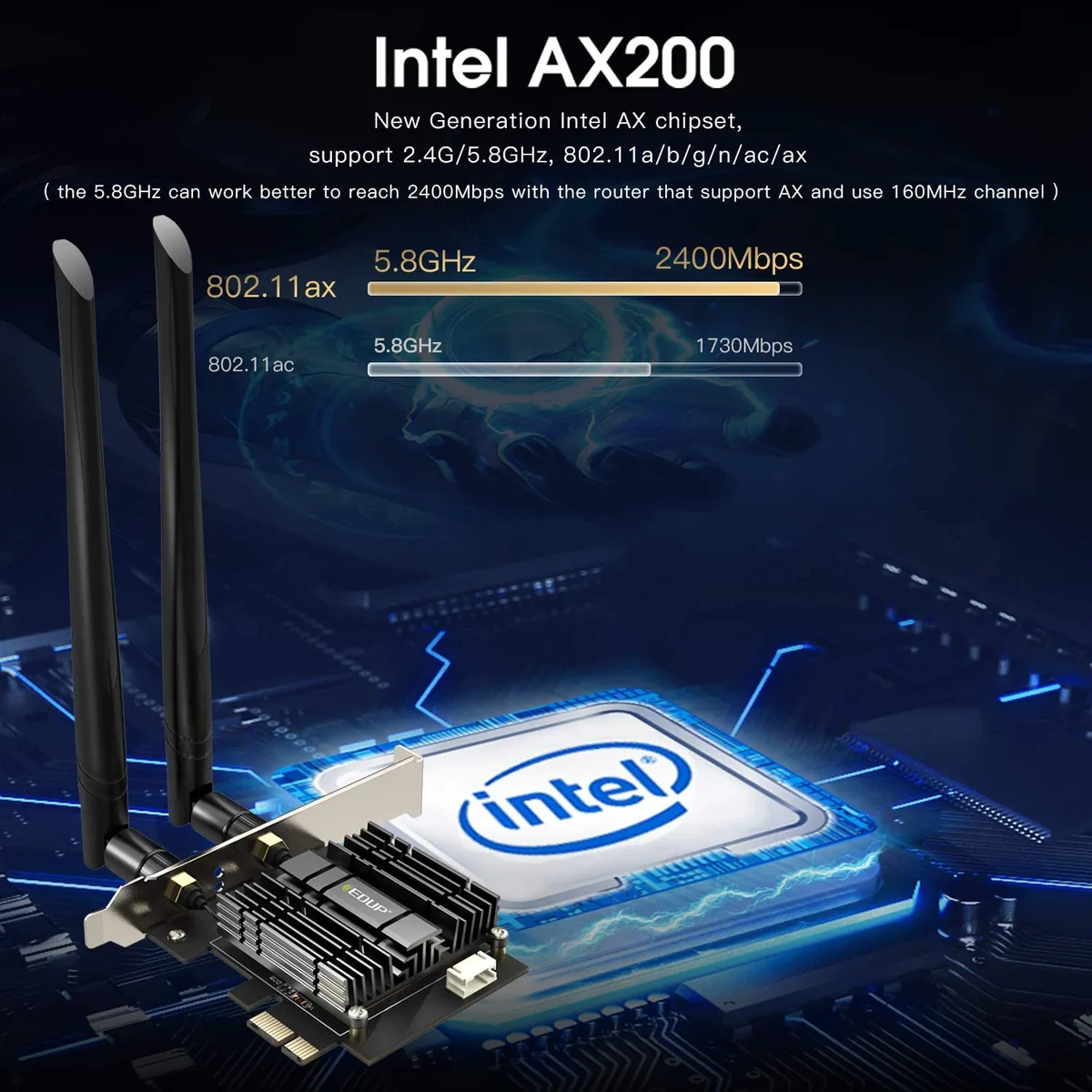

This PCI Express adapter adds Wi-Fi 6 and Bluetooth 5.0 to a desktop computer using an Intel AX200 chip. It delivers up to 3000Mbps combined throughput across dual-band 2.4 GHz and 5.8 GHz frequencies. The card requires a Windows 10 64-bit operating system and fits any standard PCIe slot from x1 to x16. An included heat sink helps manage thermal output during sustained use.

Build Integration

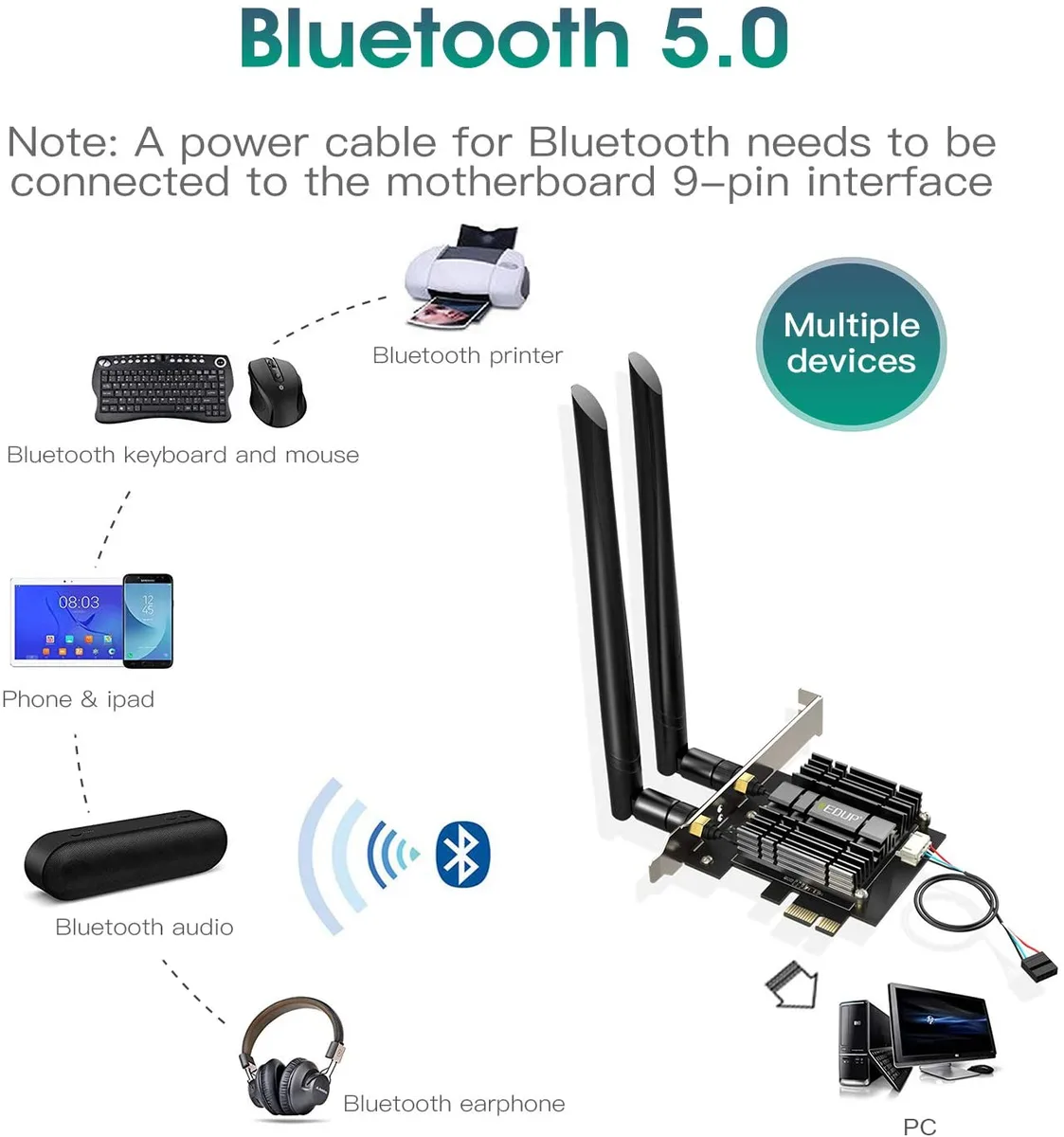

Installation requires a free PCI Express slot and an internal 9-pin USB header to enable Bluetooth functionality. Two external dual-band antennas attach to the rear bracket for signal reception. The adapter supports 160 MHz channels when paired with a compatible Wi-Fi 6 router, enabling the 2400Mbps rate on the 5.8 GHz band. MU-MIMO capability allows simultaneous data streams to multiple devices.

Ideal Use Cases

This card suits desktop owners running Windows 10 64-bit who want faster wireless speeds and Bluetooth 5.0 for peripherals such as mice, keyboards and headphones. It is not suited for laptops, Linux systems or older Windows versions. Builders lacking a spare PCIe slot or internal USB header should consider alternative connection methods. Users without a Wi-Fi 6 router will not reach the advertised throughput.

Highlights

  • Intel AX200 chip delivers Wi-Fi 6 speeds up to 3000Mbps
  • Dual-band 2.4GHz and 5.8GHz with 2400Mbps on 5.8GHz
  • Heat sink keeps temperatures stable during heavy use
  • Bluetooth 5.0 extends range four times over Bluetooth 4.2
  • MU-MIMO lets the router serve three devices simultaneously

Specifications

BrandEDUP
TypePCIE Wi-Fi Adapter
ColorBlack
Wireless Data Rates3000Mbps
InterfacePCI Express
Frequency Band2.4 GHz / 5.8 GHz
AntennaDual Band Antenna

Questions about this item

Will the 160 MHz channel saturate the PCIe x1 link under sustained 2400 Mbps 5.8 GHz traffic?

The adapter uses a PCIe x1 interface; maximum theoretical throughput on that lane is below the 2400 Mbps 5.8 GHz rate, so the bus becomes the first bottleneck.

How warm does the Intel AX200 chip get with the included heat sink during all-day 3000 Mbps dual-band operation?

The aluminium heat sink is designed to dissipate heat from the AX200 chip during continuous high-throughput use, keeping temperatures in a safe operating range.

My motherboard only has a standard PCIe x1 slot and no internal USB header — will Bluetooth 5.0 still function?

Bluetooth 5.0 requires the 9-pin internal USB connection; without an available header the wireless radio works but Bluetooth features remain inactive.
