SMA

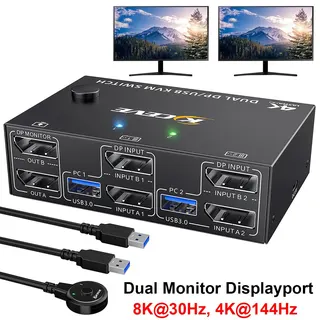

SMA USB 3.0 DisplayPort KVM Switch 2 Monitors 2 Computers 8K@30Hz 4K@144Hz
Dual-monitor DisplayPort KVM switches two computers with one keyboard, mouse and four USB 3.0 ports at up to 8K@30Hz or 4K@144Hz
- TypeDisplayPort, USB
- PC ConnectorsDP1.4, USB 3.0
- Computer Connections2 Port DisplayPort - Dual Monitor
- Monitor Connections2 Ports
- Video ResolutionKVM Switch Dual Monitor displayport support resolution 8K@30
- PC SelectionPush Buttons and Wired Remote
- Control two computers with one keyboard and mouse
- Dual monitors at 8K 30 Hz or 4K 144 Hz
- Four USB 3.0 ports transfer data up to 5 Gbps
- Switch instantly via front button or wired remote
- Driver-free on Windows 10 11 Mac OS and Linux
Dual-computer dual-monitor KVM

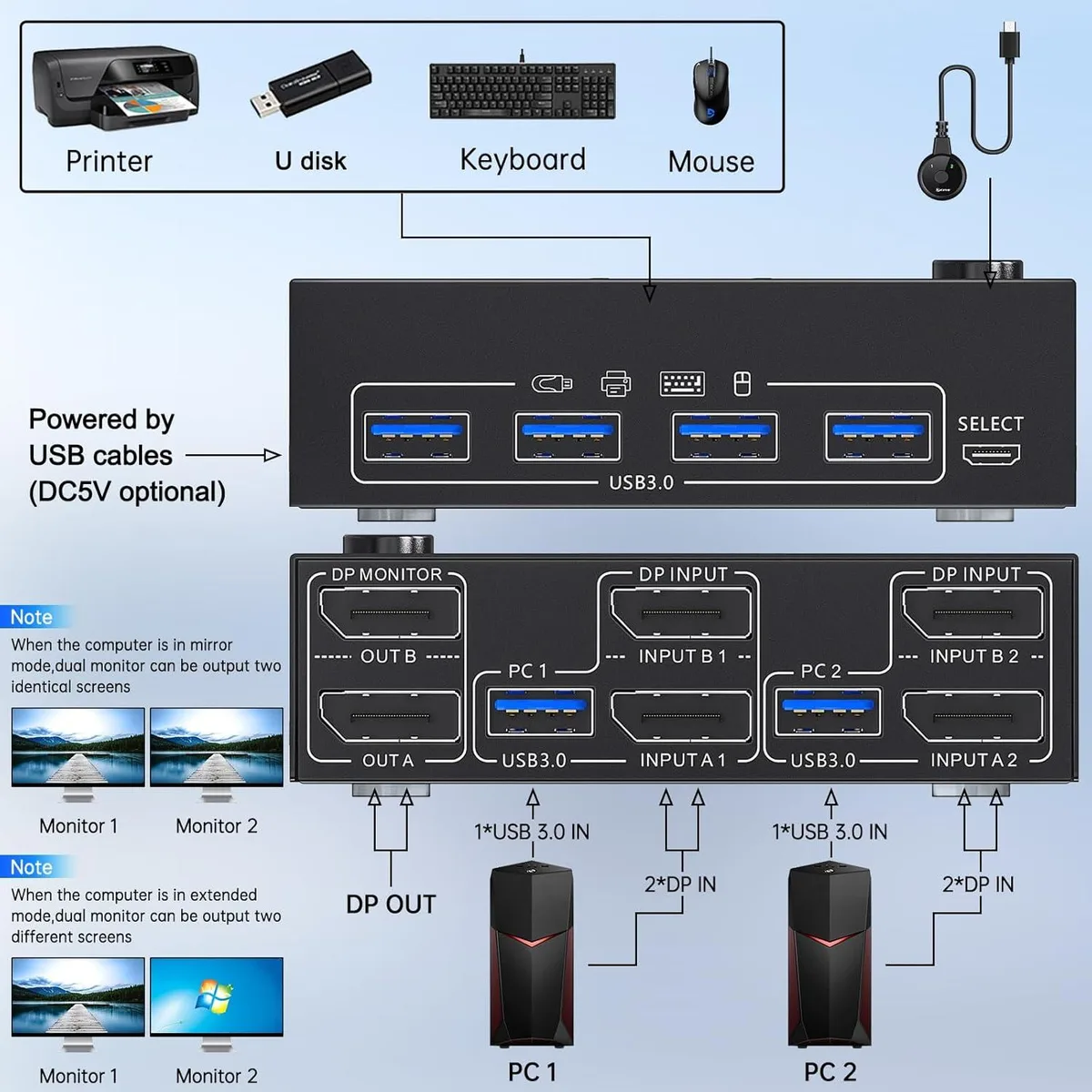

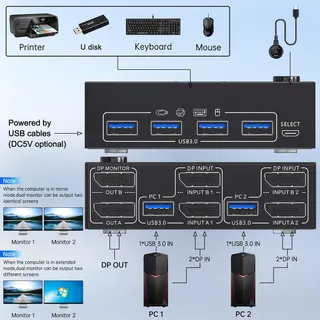

This SMA USB 3.0 DisplayPort KVM switch lets one keyboard, one mouse and two monitors control two computers or laptops. It provides four integrated USB 3.0 ports for shared peripherals such as printers or scanners. Driver-free operation covers Windows 11, 10, 8, 7, XP, Linux and Mac OS. An external 5 V power adapter is included for high-draw USB devices.
DisplayPort 1.4 bandwidth limits
The switch supports DP 1.4 signalling and is backwards compatible with DP 1.2. Maximum video throughput reaches 8K at 30 Hz or 4K at 144 Hz, with additional modes at 2560×1440 144 Hz and 1920×1080 144 Hz. Mixed-resolution inputs are accepted, for example one computer at 4K 60 Hz and the other at 1440p 60 Hz. Switching between sources takes two to four seconds via front buttons or the 1.5 m wired remote.
Capacity and headroom

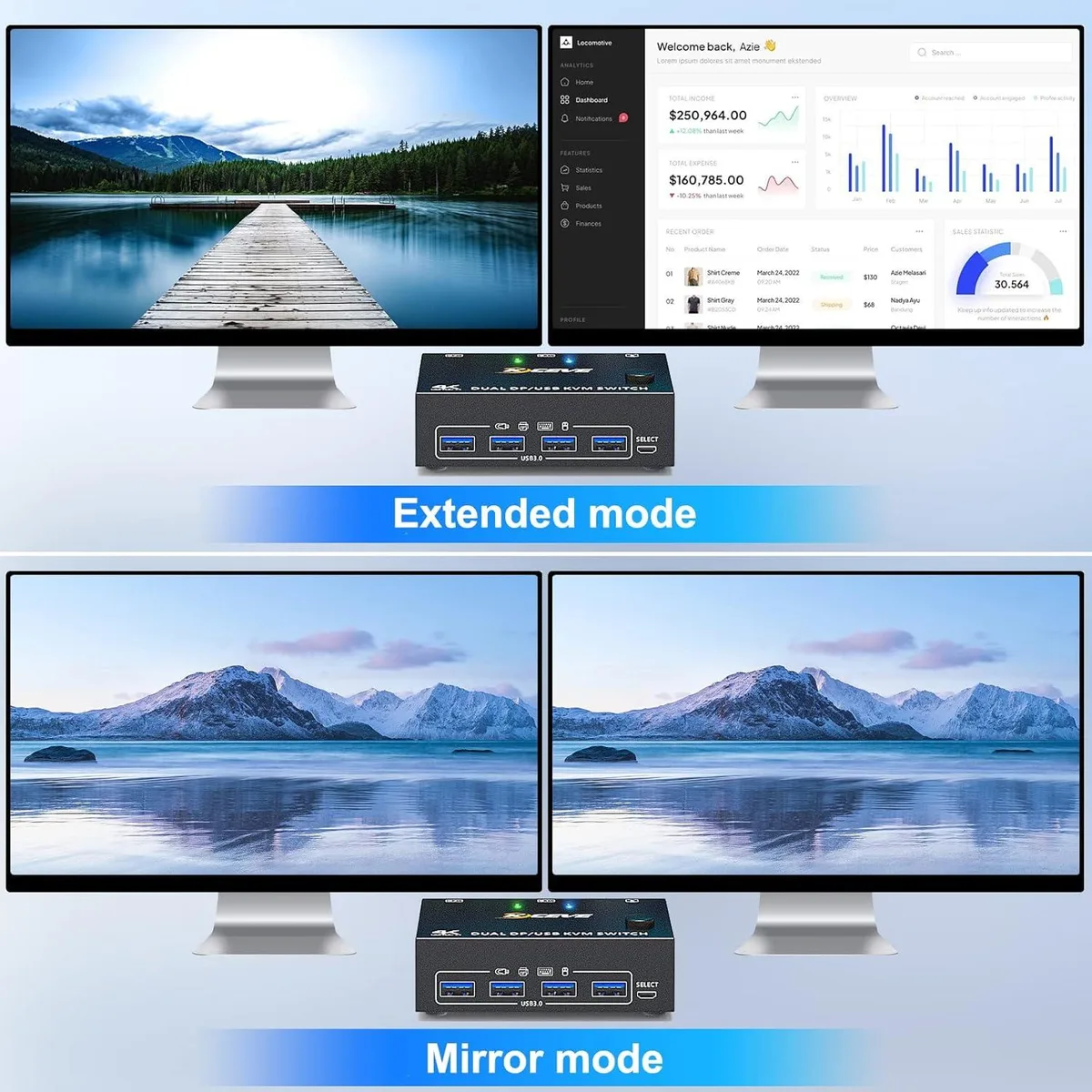

Four USB 3.0 ports deliver up to 5 Gbps each for shared storage, input devices or other accessories while remaining compatible with USB 2.0 and 1.1 gear. Dual-monitor output works in extended or mirror mode provided each connected PC natively supports multi-display. The unit measures 4.02 × 2.56 × 1.18 inches and weighs 1.57 pounds, fitting a compact desktop footprint.
Highlights
- Control two computers with one keyboard and mouse
- Dual monitors at 8K 30 Hz or 4K 144 Hz
- Four USB 3.0 ports transfer data up to 5 Gbps
- Switch instantly via front button or wired remote
- Driver-free on Windows 10 11 Mac OS and Linux
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | DP1.4, USB 3.0 |
| Computer Connections | 2 Port DisplayPort - Dual Monitor |
| Monitor Connections | 2 Ports |
| Video Resolution | KVM Switch Dual Monitor displayport support resolution 8K@30Hz/ [email protected] switch 2 computers 2 monitors aslo support input terminal to connect 2 computers with different resolutions, e.g. one is 4K@60Hz, the other is 4K@30Hz, 1440P@60Hz or lower resolution. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | Displayport, Displayport |
| LED Indicators | Yes |
| Audio Features | No |
| Power Features | external 5V adapter is required (included) |
| USB Features | with 4 integrated USB 3.0 ports,supports ultra-fast USB 3.0 data transfer, Data transfer speeds up to 5Gbps,which can recognize keyboard,mouse,printer,scaner and other USB devices.compatible with USB 2.0/1.1 devices. |
| Application | This Dual Monitor KVM switch 2 computers 2 monitors help you to control 2 computers or laptops by only one set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 2 monitors(extended mode or copy display mode). |
| Features | Support max up resolution 8K@30Hz,4K@144Hz,2560×1440@144Hz,1920x1080P@144Hz,downward compatible.support ultra-wide monitors. Dual monitors output support extended and mirror display. Switching modes: Button switch and wired remote (1.5m),switch between 2 computers just need 2-4 seconds, fast and convenient. Support wired or wireless keyboard and mouse.When use a mechanical gaming keyboard,You need to plug in the DC 5V USB power cable to the KVM to provide sufficient power. Cross support most major OS including Windows, Linux, Mac OS. Dual displayport KVM switch with 4 USB 3.0 ports f |
| Dimensions | 4.02 x 2.56 x 1.18 inch |
| Weight | 1.57 Pounds |
| Package Contents | 1 * Displayport KVM switch; 2 * USB3.0 cable; 1 * Wired remote; 1 * USB power cable； 1 * User manual. |
Questions about this item
How do I decide between the 8K@30Hz and 4K@144Hz modes on this KVM?
Both resolutions are supported simultaneously; the switch passes whatever signal each connected computer outputs, so choose the mode that matches your monitor and GPU capabilities.
What does the 8K@30Hz rating mean when I have two 4K monitors connected?
The 8K@30Hz figure is the maximum single-stream bandwidth; with dual monitors each display can run up to 4K@144Hz or 1440p@144Hz depending on your graphics cards.
Does the DisplayPort 1.4 interface limit the USB 3.0 ports to 5 Gbps in practice?
Video uses the DisplayPort 1.4 link while the four USB 3.0 ports operate independently at up to 5 Gbps each for keyboards, mice, printers or storage devices.
