SMA
SMA SW522P KVM Switch 2 Monitors 2 Computers 13-in-1 Dock 100W PD
A dual-monitor KVM switch lets two computers share displays, keyboard, mouse and a 13-port dock with 100W charging
- TypeKVM Switch 2 Monitors 2 Computers
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionThis KVM features two video output ports (HDMI + DisplayPort
- PC SelectionPush Buttons
- LED IndicatorsYes
- Share two monitors between two computers with one KVM switch
- Charge a laptop at 100W PD while switching systems via 120W adapter
- Connect USB-C or HDMI/DisplayPort sources using 13-in-1 dock
- Output 4K at 60Hz via HDMI and 4K at 120Hz via DisplayPort
- Switch instantly with push buttons and desktop controller

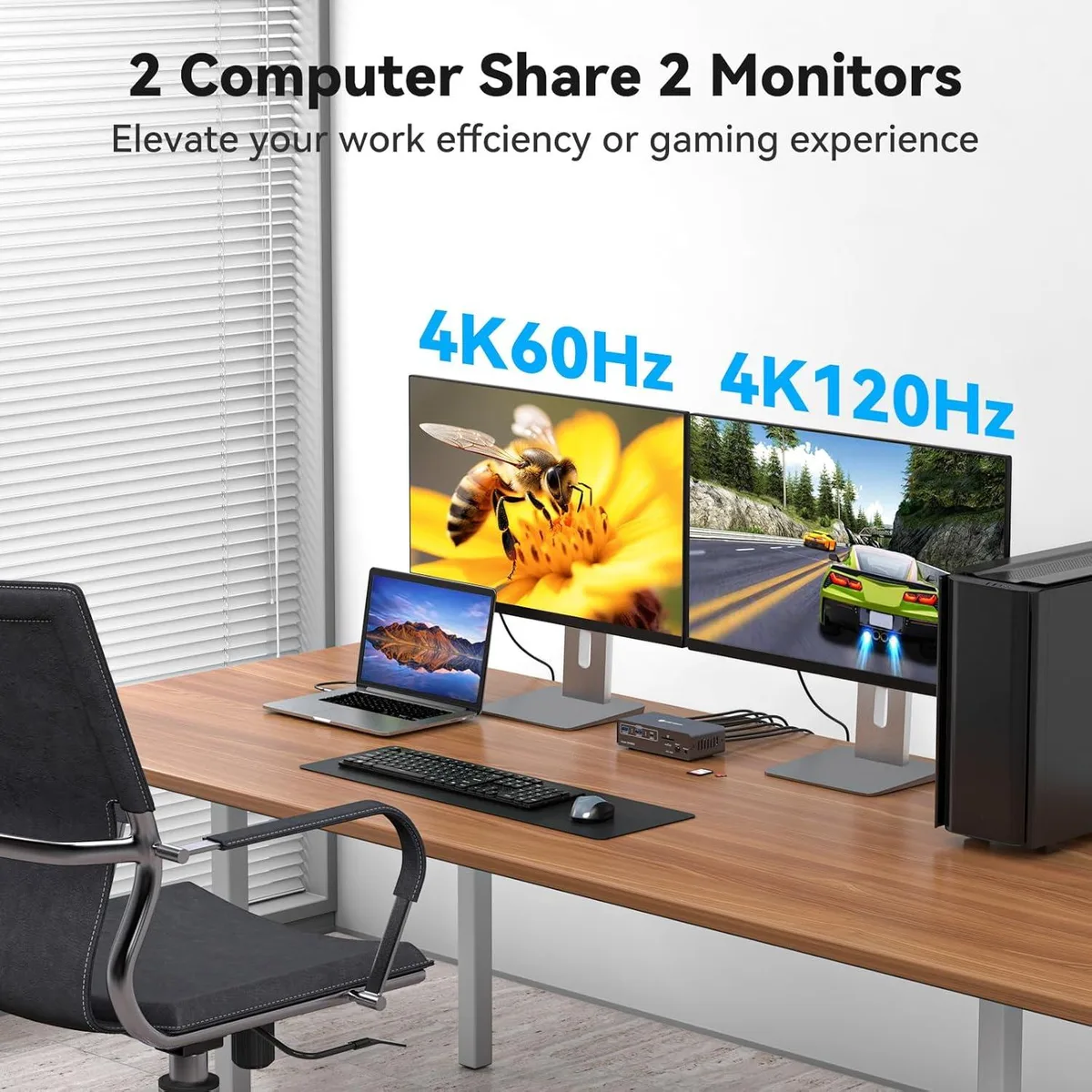

Dual-monitor KVM for two computers
The SMA SW522P lets a pair of computers share two monitors, a keyboard, a mouse and a 13-in-1 docking station. It accepts USB-C and HDMI or DisplayPort inputs from each system and routes video to one HDMI and one DisplayPort output. A wired desktop controller handles switching without software.
Aluminium chassis with front-panel ports

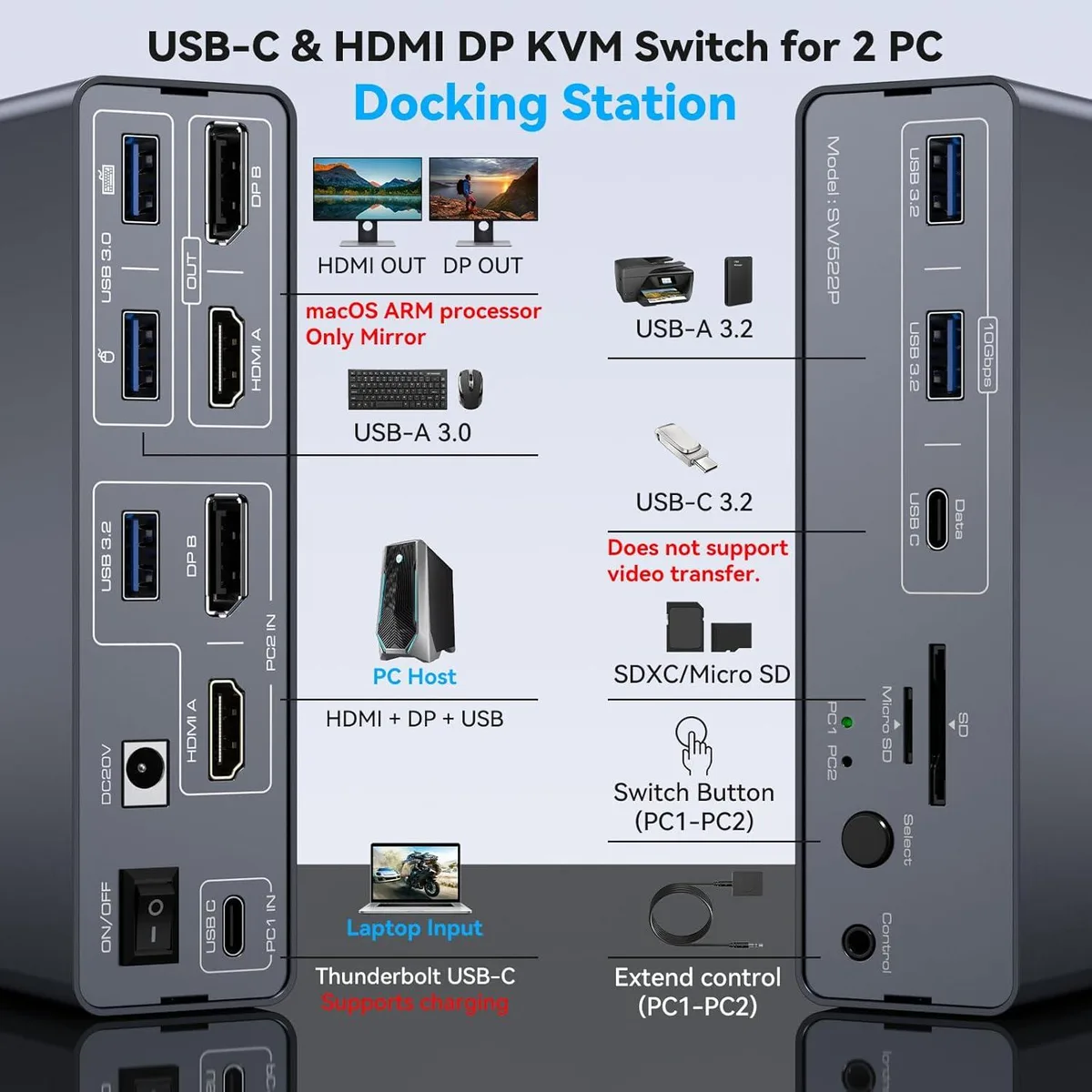

The metal case measures 5.55 by 2.95 by 1.5 inches and weighs 330g. Front-facing connectors include two USB 3.0 ports for keyboard and mouse, two 10Gbps USB 3.2 ports, one USB-C data port, plus SD and microSD slots. A 120W DC adapter powers the unit and delivers 100W PD pass-through to a connected laptop.
Replaces separate docks and cable swapping
Users who currently plug and unplug monitors, peripherals and power between a work laptop and a personal desktop can consolidate to one stationary setup. The jump is worth it when both machines have Thunderbolt 3, 4 or 5 ports and the monitors and cables support 4K at 60Hz over HDMI or 4K at 120Hz over DisplayPort. MacOS systems are limited to copy mode.
Highlights
- Share two monitors between two computers with one KVM switch
- Charge a laptop at 100W PD while switching systems via 120W adapter
- Connect USB-C or HDMI/DisplayPort sources using 13-in-1 dock
- Output 4K at 60Hz via HDMI and 4K at 120Hz via DisplayPort
- Switch instantly with push buttons and desktop controller
Specifications
| Series | HDMI + Displayport |
|---|---|
| Model | SW522P |
| Type | KVM Switch 2 Monitors 2 Computers |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | This KVM features two video output ports (HDMI + DisplayPort), allowing both computers to share the two monitors.HDMI port supports 4K60Hz, DisplayPort supports 4K120Hz and is backward compatible. |
| PC Selection | Push Buttons |
| LED Indicators | Yes |
| Power Features | Come with DC 12V Power Adapter |
| USB Features | Provides multiple shared peripheral ports,2x USB 3.0 for mouse and keyboard,2x 10Gbps USB 3.2, 1x USB-C date-ports allow you to connect more peripherals for faster transmission speed |
| Application | The KVM Switch Docking Station allows USB C laptops and desktop computers to share a 13-in-1 multi-port docking station,you can share two monitors, a mouse, and a keyboard and switch seamlessly between your work laptops and personal computers, saving space and keeping your desktop neat and tidy, eliminating the need for repeated plugging and unplugging and improving work efficiency |
| Features | Plug and Play:No drivers or software required.Simply connect all cables according to the instructions to enjoy a convenient working experience |
| Dimensions | 5.55 x 2.95 x 1.5 inches |
| Weight | 330g |
| Package Contents | 1 x KVM Switch, 1 x USB A Cable, 1 x USB C Cable, 1 x Desktop Controller, 1 x Power Adapter, 1 x User Manual |
Questions about this item
What video resolutions do the HDMI and DisplayPort outputs cap at in practice?
The HDMI output supports 4K at 60 Hz and the DisplayPort output supports 4K at 120 Hz, both backward compatible with lower resolutions.
What physical clearance does the unit need on a desk?
The aluminium case measures 5.55 by 2.95 by 1.5 inches and weighs 330 g, so it fits in a compact footprint.
How is the switch connected to two computers and what step is often missed?
Connect each computer using the supplied USB-A cable and USB-C cable, attach the external 120 W power adapter, then use the desktop controller to change sources.
