SMA
SMA KVM801 8-Port HDMI KVM Switch 4K@60Hz USB 3.0
Eight computers share one 4K@60Hz monitor, keyboard and mouse via HDMI and USB 3.0 with push-button, hotkey or remote switching
- Type8 Ports HDMI KVM Switch 8 Computers 1 Monitor
- PC ConnectorsHDMI
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution8 PC KVM switch for 8 computers 1 monitor support resolution
- PC SelectionPush Buttons
- Share one monitor, keyboard and mouse across eight computers without extra hardware
- USB 3.0 port connects hubs, drives, printers and scanners, plus wireless keyboard and mouse

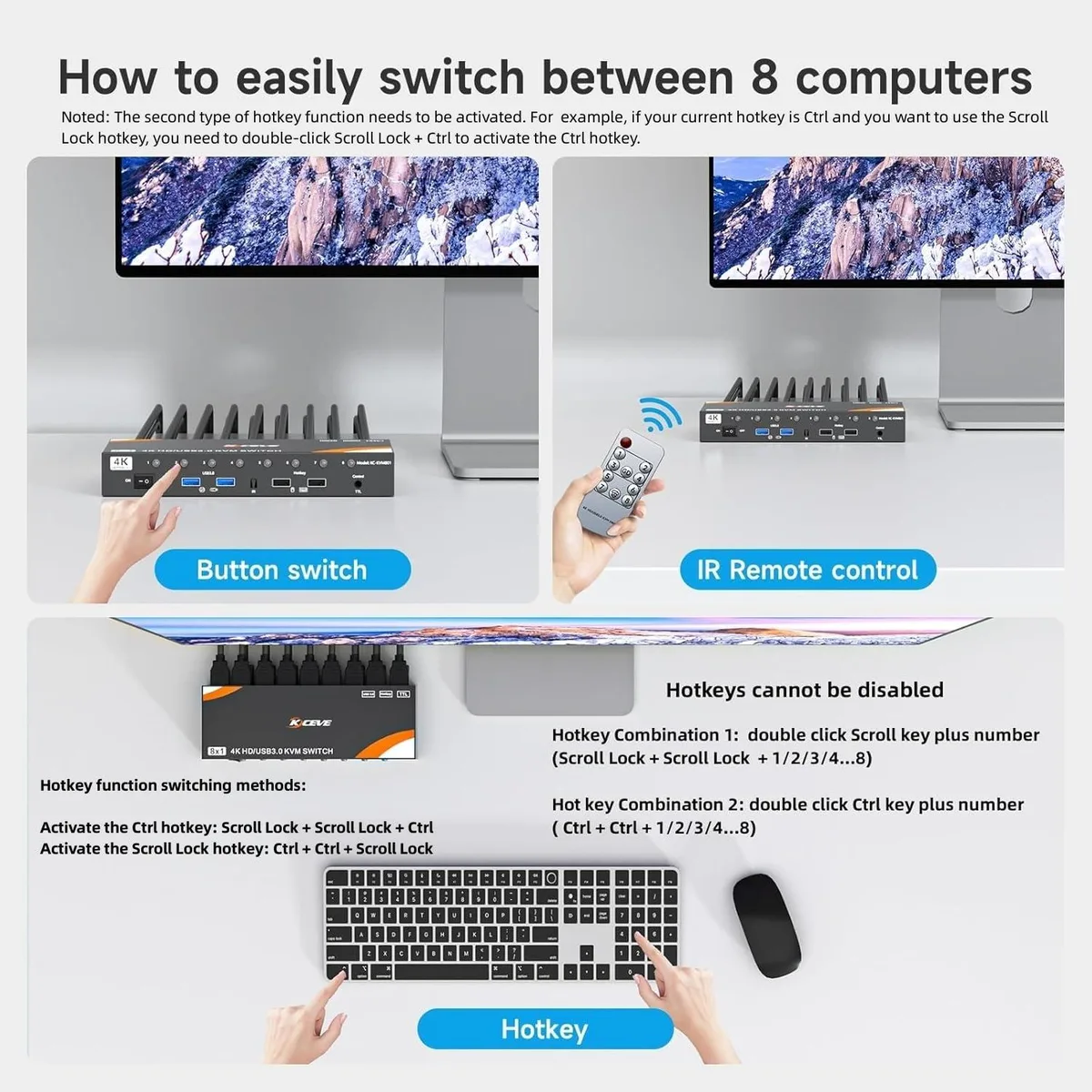

- Switch instantly via front buttons, Scroll Lock or Ctrl hotkeys, or TTL control for advanced setups
- 4K at 60 Hz output with support for 4K at 30 Hz, 3D and 1080p resolutions
- Works with PC, laptop, PS4, PS3, Nintendo Switch and Windows, Mac or Linux systems
8-Port HDMI KVM Switch for Multi-System Control

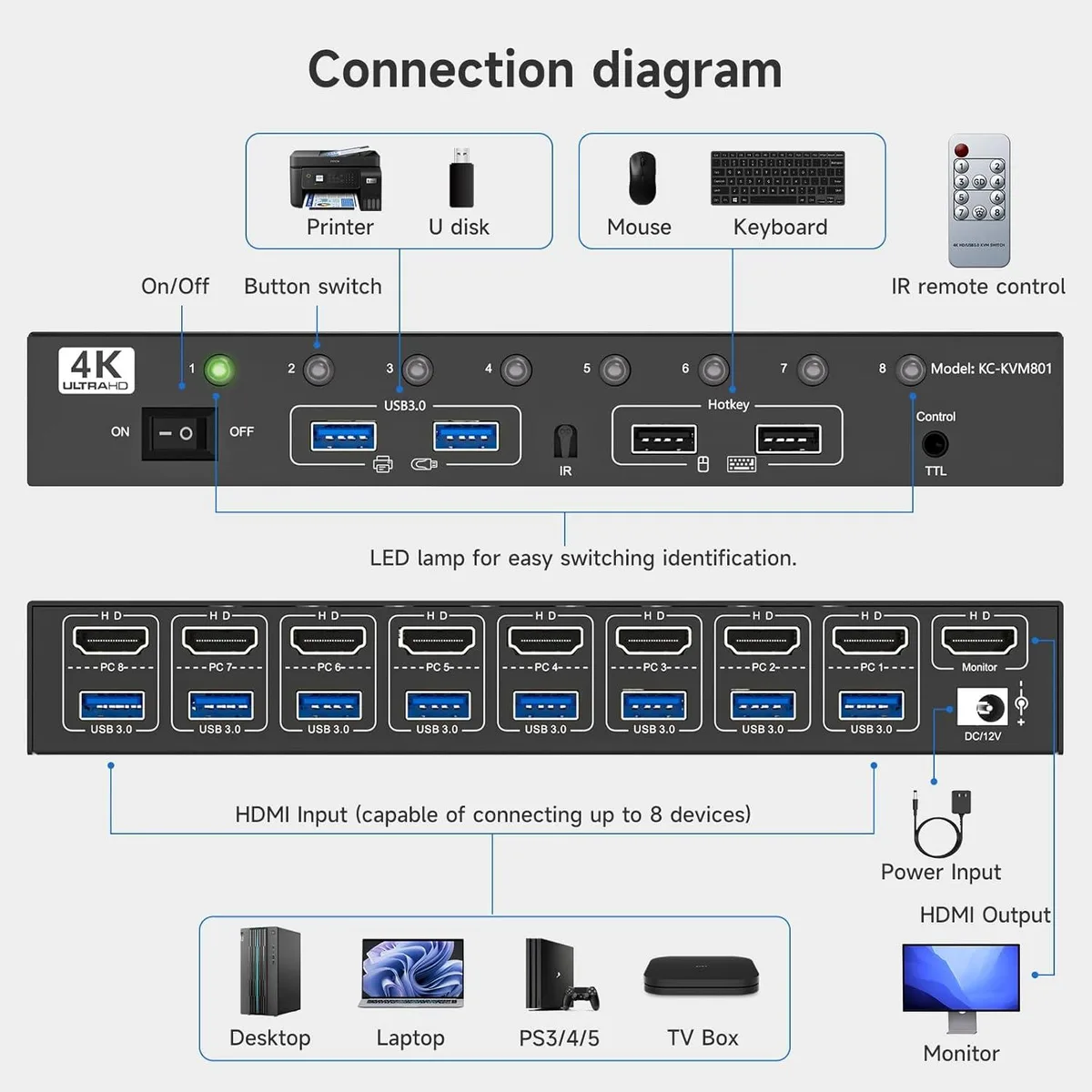

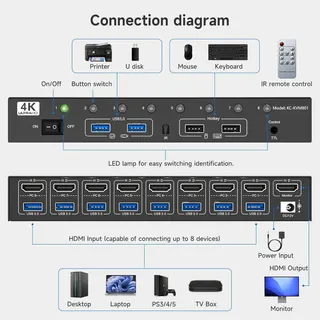

The SMA KVM801 is an 8-port HDMI KVM switch that lets one monitor, keyboard and mouse control eight computers. It supports video resolutions up to 4K at 60 Hz, plus 4K at 30 Hz, 3D and 1080p or lower. A USB 3.0 port recognises hubs, drives, printers and scanners, and works with wireless keyboard and mouse sets. Switching is handled by front push buttons, hotkey combinations or an included IR remote. The unit ships with a power adapter, eight USB 3.0 cables and one HDMI cable.
Suited for Eight Sources, Not for Fewer or More
This switch suits users who need to share a single display and peripherals across exactly eight HDMI sources such as desktops, laptops, PS4, PS3 or Nintendo Switch consoles. It runs on Windows 10 through XP, Mac OS and Linux without drivers. Buyers with only two to four computers will find smaller, cheaper switches more practical, while anyone needing to drive two or more monitors simultaneously should look at a matrix or multi-head KVM instead. The TTL control option is aimed at technicians who can supply their own cable.
4K@60Hz Single-Monitor Limit Decides Fit
The decisive specification is the 4K at 60 Hz limit on a single HDMI monitor output. If your workflow requires higher refresh rates at 4K, HDR metadata pass-through or dual-monitor extended desktop across the eight ports, this unit cannot meet those needs. For standard 4K@60Hz office, development or console switching on one screen, the specification matches the requirement.
Highlights
- Share one monitor, keyboard and mouse across eight computers without extra hardware
- USB 3.0 port connects hubs, drives, printers and scanners, plus wireless keyboard and mouse
- Switch instantly via front buttons, Scroll Lock or Ctrl hotkeys, or TTL control for advanced setups
- 4K at 60 Hz output with support for 4K at 30 Hz, 3D and 1080p resolutions
- Works with PC, laptop, PS4, PS3, Nintendo Switch and Windows, Mac or Linux systems
Specifications
| Series | HDMI KVM Switch 8 Computers 1 Monitor |
|---|---|
| Model | KVM801 |
| Type | 8 Ports HDMI KVM Switch 8 Computers 1 Monitor |
| PC Connectors | HDMI |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 8 PC KVM switch for 8 computers 1 monitor support resolution up to 4K@60Hz, of course it also support 4K@30Hz, 3D and 1080P or lower resolution. |
| PC Selection | Push Buttons |
| Monitors Supported | HDMI |
| LED Indicators | Yes |
| Power Features | Come with Power Adapter |
| USB Features | This 8 ports HDMI KVM kvm switch with USB 3.0 port which can recognize USB device, such as Hub, hard driver, printer, scaner, etc. Also compatible with wireless keyboard and mouse. |
| Application | 8 in 1 out HDMI KVM switch: Share your monitor, keyboard & mouse between your home desktop and work laptop. Saved you a lot of money and space, not having to buy more monitors and keyboards. |
| Features | Plug and Play |
| Dimensions | 8.07 x 3.03 x 1.18 inches |
| Package Contents | 1 x HDMI KVM Switch, 8 x USB 3.0 Cables, 1 x IR Remote, 1 x HDMI Cable, 1 x Power Adapter, 1 x User Manual |
Questions about this item
Will the USB 3.0 ports or the supplied cables need replacing after heavy daily use?
The unit ships with eight USB 3.0 cables and a power adapter; no user-replaceable parts are mentioned, so only a damaged cable or a failed power adapter would need swapping.
What limit appears first when all eight computers push 4K@60Hz video continuously?
The switch is rated for 4K@60Hz on each of the eight HDMI inputs, so the bandwidth ceiling of the single HDMI output is the first hard limit under sustained load.
Does the box get noisy or hot when left on all day with all eight computers connected?
The device has no fan and relies on passive cooling; the external power adapter handles the power draw, so heat and noise stay minimal during continuous operation.
