SMA
SMA KVM Switch 2 Monitors 2 Computers USB C HDMI 1.5m Wired Remote
Connects two computers to dual HDMI monitors with 4K@60Hz, four USB 3.0 ports and a 1.5m wired remote
- TypeType C, HDMI
- PC ConnectorsType C, HDMI
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution4K@60Hz
- PC SelectionPush Buttons and Wired Remote
- Control two computers with one keyboard and mouse using dual HDMI monitors
- USB-C and HDMI inputs support 4K@60Hz video on both displays
- Four USB 3.0 ports share peripherals at up to 5 Gbps
- Switch instantly via front buttons or the 1.5m wired remote
- 12V power adapter enables 60W laptop charging through USB-C
Dual-monitor KVM for laptop and desktop

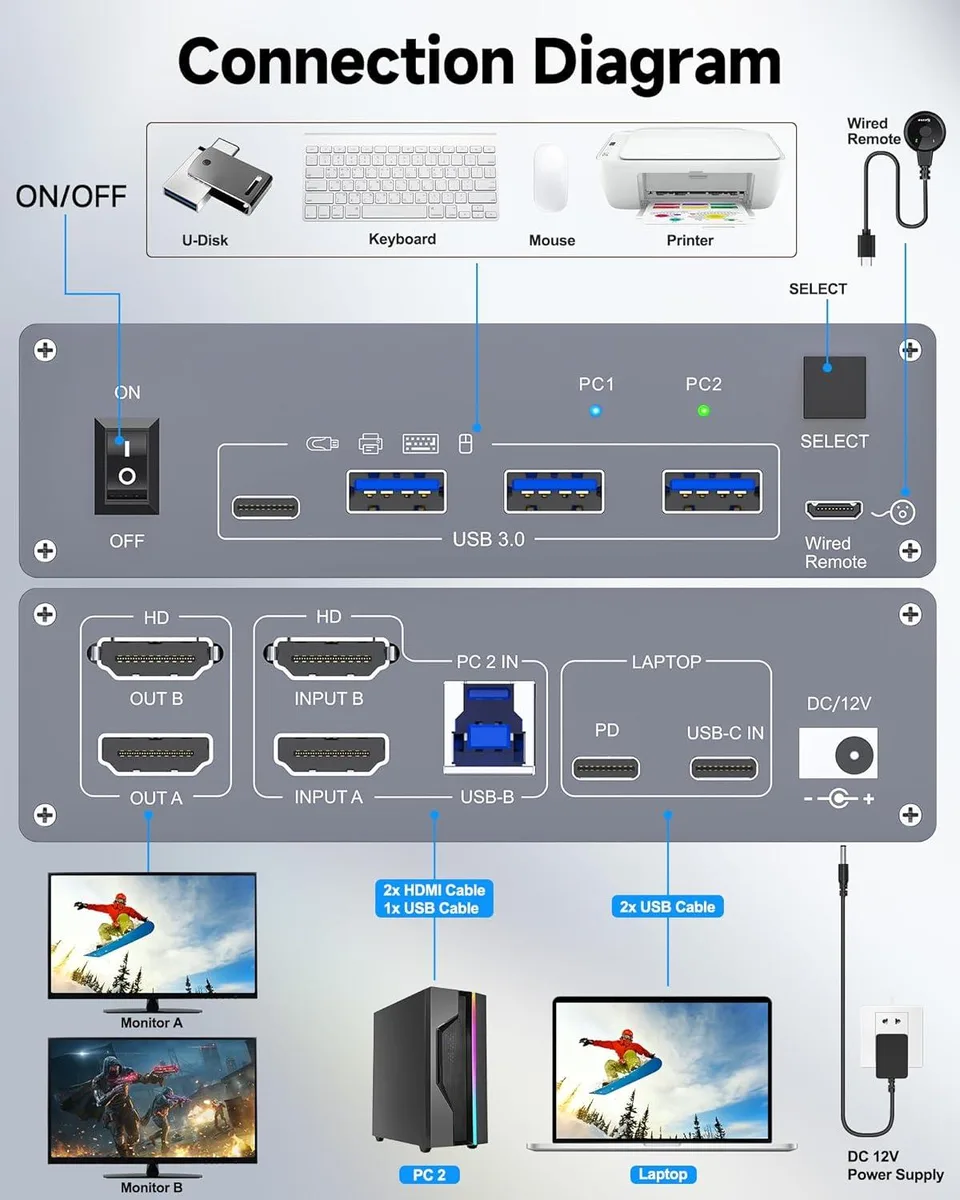

This SMA KVM switch connects one USB-C laptop and one HDMI desktop to two shared HDMI monitors. A single keyboard, mouse and up to four USB peripherals control both computers. The unit includes a 1.5 m wired remote and front push buttons for instant switching. It is aimed at users who split work between a portable and a stationary system.
Interface limits and display modes
Video travels over HDMI 2.0 and USB-C 3.1, delivering 4K at 60 Hz on both screens from the USB-C source and 4K at 120 Hz from the HDMI source. MST enables extended or mirrored desktops on the dual outputs, provided the laptop GPU supports two external displays. USB 3.0 ports run at 5 Gbps for attached storage or webcams.
Capacity and headroom
The switch handles two computers, two monitors and four USB 3.0 devices simultaneously. A 12 V power adapter supplies 60 W of reverse charging to the connected laptop through the USB-C upstream port. Systems without MST-capable USB-C alt-mode will be limited to a single external display, and the HDMI input cannot exceed its native 4K 120 Hz ceiling.
Highlights
- Control two computers with one keyboard and mouse using dual HDMI monitors
- USB-C and HDMI inputs support 4K@60Hz video on both displays
- Four USB 3.0 ports share peripherals at up to 5 Gbps
- Switch instantly via front buttons or the 1.5m wired remote
- 12V power adapter enables 60W laptop charging through USB-C
Specifications
| Type | Type C, HDMI |
|---|---|
| PC Connectors | Type C, HDMI |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K@60Hz |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | HDMI, HDMI |
| LED Indicators | Yes |
| Power Features | with 12V Power Adapter |
| USB Features | with 3 USB A + 1 USB-C ports, up to 5 Gbps |
| Application | KVM Switch Dual Monitor USB C allows you to use 1 set of mouse, keyboard to control 1 laptop and 1 computer, compatible printer, scanner, webcam, each computer is displayed on 2 HDMI monitors. |
| Features | Supports 2 switching options; 2 Monitor KVM Switch with 4 USB 3.0 Ports. |
| Dimensions | 11.6 x 9 x 3.3cm |
| Weight | 300g |
| Package Contents | 1 x KVM Switch; 1 x DC 12V power supply, 1 x TPYE C cable, 1 x USB 3.0 cable, 1 x remote control, 1 x user manual |
Questions about this item
How do I decide between the USB-C and HDMI computer ports on this SMA KVM?
Connect your laptop via the USB-C port to drive both HDMI monitors with a single cable; connect a desktop or second laptop through the HDMI port. Each computer gets its own dedicated input.
What does the 4K@60Hz rating mean when the switch is running two monitors?
Both HDMI outputs can run at 4K resolution and 60 Hz simultaneously in extended mode, provided the connected computer supports driving two external displays at that rate.
Which USB standard do the four peripheral ports use, and what speed does it cap at?
The three USB-A ports and one USB-C port all run on USB 3.0, limiting data transfers to 5 Gbps.
