SMA
SMA KVM Switch 2×2 HDMI DP 4K@60Hz 3 USB 2.0 Audio
Share one keyboard, mouse and two monitors between two computers with 4K@60Hz video, three USB 2.0 ports and audio switching
- TypeHDMI + Displayport
- PC Connectors2 PCs
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolution3840 x 2160
- PC SelectionPush Buttons
- Share one keyboard, mouse and dual monitors across two PCs
- Dual 4K@60Hz output via HDMI and DisplayPort for sharp visuals
- Three USB 2.0 ports let you share printers or peripherals
- Separate audio and microphone outputs keep sound routing simple
- Switch instantly with front-panel buttons or wired remote
Dual-monitor KVM for two PCs
This new SMA KVM switch lets one keyboard, one mouse and two displays control two computers or laptops. Each system connects through one HDMI and one DisplayPort input plus a USB link. The box supports video up to 3840 x 2160 at 60 Hz in extended, mirrored or spliced layouts, and adds separate audio and microphone output.
Suits dual-screen workflows.
Builders who run two monitors at 4K 60 Hz and want a single wired remote or front-panel toggle will find this a tidy fit. Buyers who need 8K resolution, 100 Hz, 120 Hz or 144 Hz refresh rates, or who require more than two computer ports, should look elsewhere. The three USB 2.0 ports handle peripherals but do not replace a dedicated high-speed hub.
4K 60 Hz dual-head limit
The decisive spec is the maximum supported video mode of 3840 x 2160 at 60 Hz across both outputs. If either connected graphics card or monitor cannot drive that timing, the switch will fall back to a lower resolution such as 1080p. Confirm both sources and displays meet the 4K 60 Hz requirement before purchasing.
Highlights
- Share one keyboard, mouse and dual monitors across two PCs
- Dual 4K@60Hz output via HDMI and DisplayPort for sharp visuals
- Three USB 2.0 ports let you share printers or peripherals
- Separate audio and microphone outputs keep sound routing simple
- Switch instantly with front-panel buttons or wired remote
Specifications
| Type | HDMI + Displayport |
|---|---|
| PC Connectors | 2 PCs |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons |
| Monitors Supported | Dual Monitor DP+HDMI |
| LED Indicators | Yes |
| Audio Features | with Audio Microphone Output |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | The dual monitor kvm switch using only 1 set of keyboard, mouse and 2 monitors to control 2 DisplayPort + HDMI computers/laptops, Support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card). Make your work space tidy and efficient, also a premium choice for working from home. |
| Features | No complicated installation is required, and non-professionals can easily operate it; Share one set of keyboard, mouse and dual monitors between 2 computers or laptops; Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display(Depends on your computer's graphics card.); Cross support major operation systems including Windows, Linux, Mac and more; With extra 3 USB 2.0 and Audio Microphone output; The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; Switching modes: Buttons on the front panel and w |
| Dimensions | 14cmx6cmx3cm |
| Package Contents | 1 x KVM Switch, 2 x USB Cable, 1 x Switch Button, 1 x Power Adapter, 1 x User Manual |
Questions about this item
What cables and accessories come with the SMA KVM switch, and which video cables must I supply?
The box includes the KVM unit, two USB cables, a wired remote button, a power adapter and a manual. HDMI and DisplayPort cables for both computers and both monitors are not included.
Should I choose the HDMI or DisplayPort input for each computer to get 4K at 60 Hz?

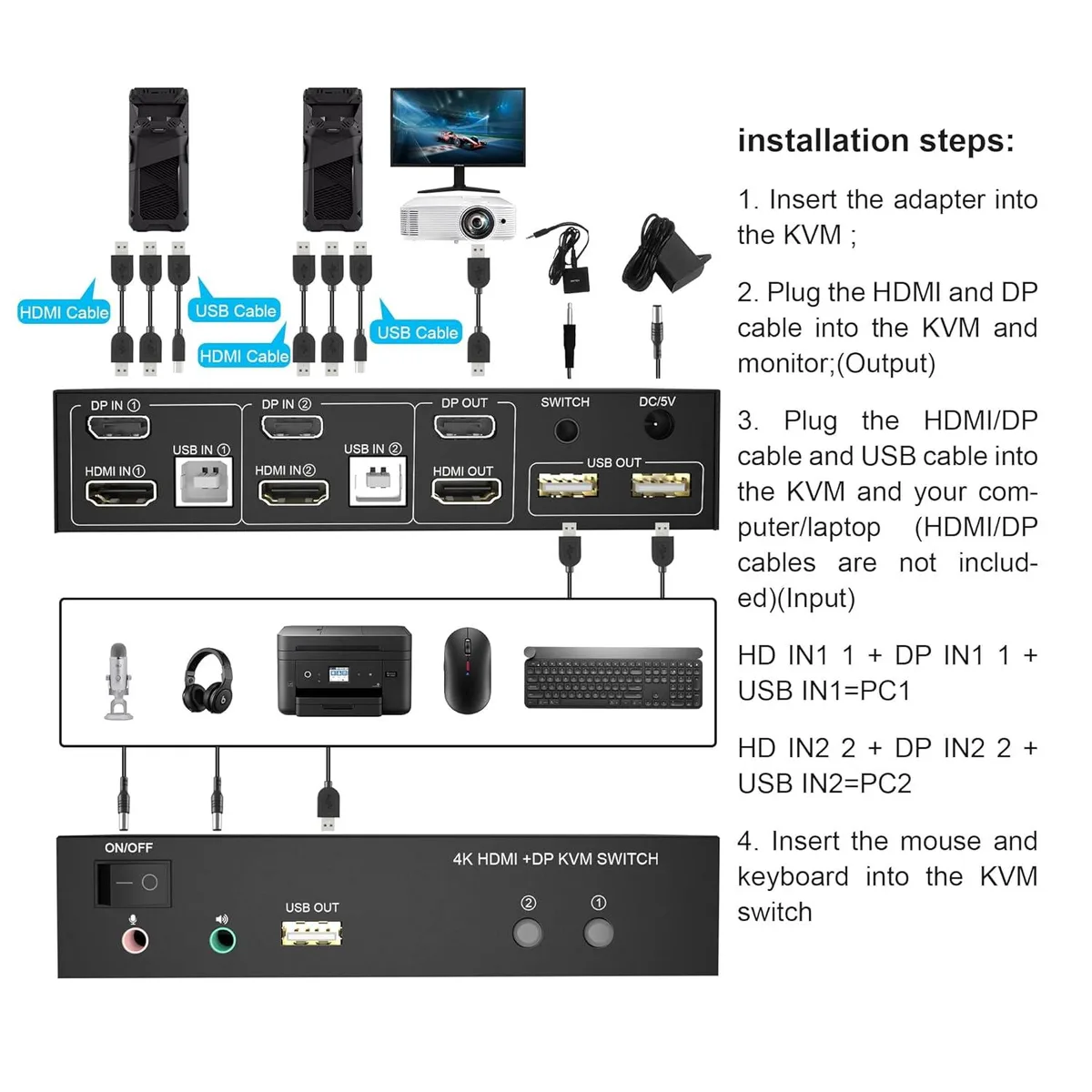

Each computer needs both its HDMI and its DisplayPort connected to the matching IN1 or IN2 group; the switch supports 3840 x 2160 at 60 Hz only when the graphics card and monitor both support that rate.
What does the 4K 60 Hz rating mean once the switch is installed in my dual-monitor setup?
It means each monitor can display up to 3840 x 2160 at 60 Hz in extended, mirrored or spliced mode, provided both the source graphics card and the monitor themselves support that resolution and refresh rate.
