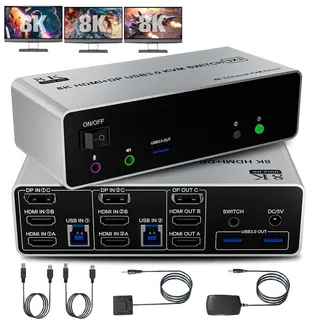

SMA 8K@60Hz KVM Switch 3 Monitors 2 Computers 4K@144Hz 2 HDMI+DP Wired Remote 5V Power Adapter
Lets two computers share three monitors and three USB 3.0 ports with 8K@60Hz support
- Type2 HDMI + 1 Displayport
- PC ConnectorsHDMI, HDMI, Displayport, USB
- Computer Connections2 Port HDMI + 1 Port Displayport
- Monitor Connections2 Port HDMI + 1 Port Displayport
- Video Resolutionsupport resolution up to 8K@30Hz/4K@144Hz.
- PC SelectionPush Buttons and Wired Controller
- Share two computers across three monitors with 2 HDMI and 1 DisplayPort
- Switch instantly via front buttons or the wired remote control
- Connect keyboard, mouse and peripherals through three USB 3.0 ports at 5 Gbps
- Add headset and microphone with the dedicated audio and mic jacks
- Supports up to 8K at 60 Hz and 4K at 144 Hz for sharp visuals
Triple-Monitor KVM for Two Computers

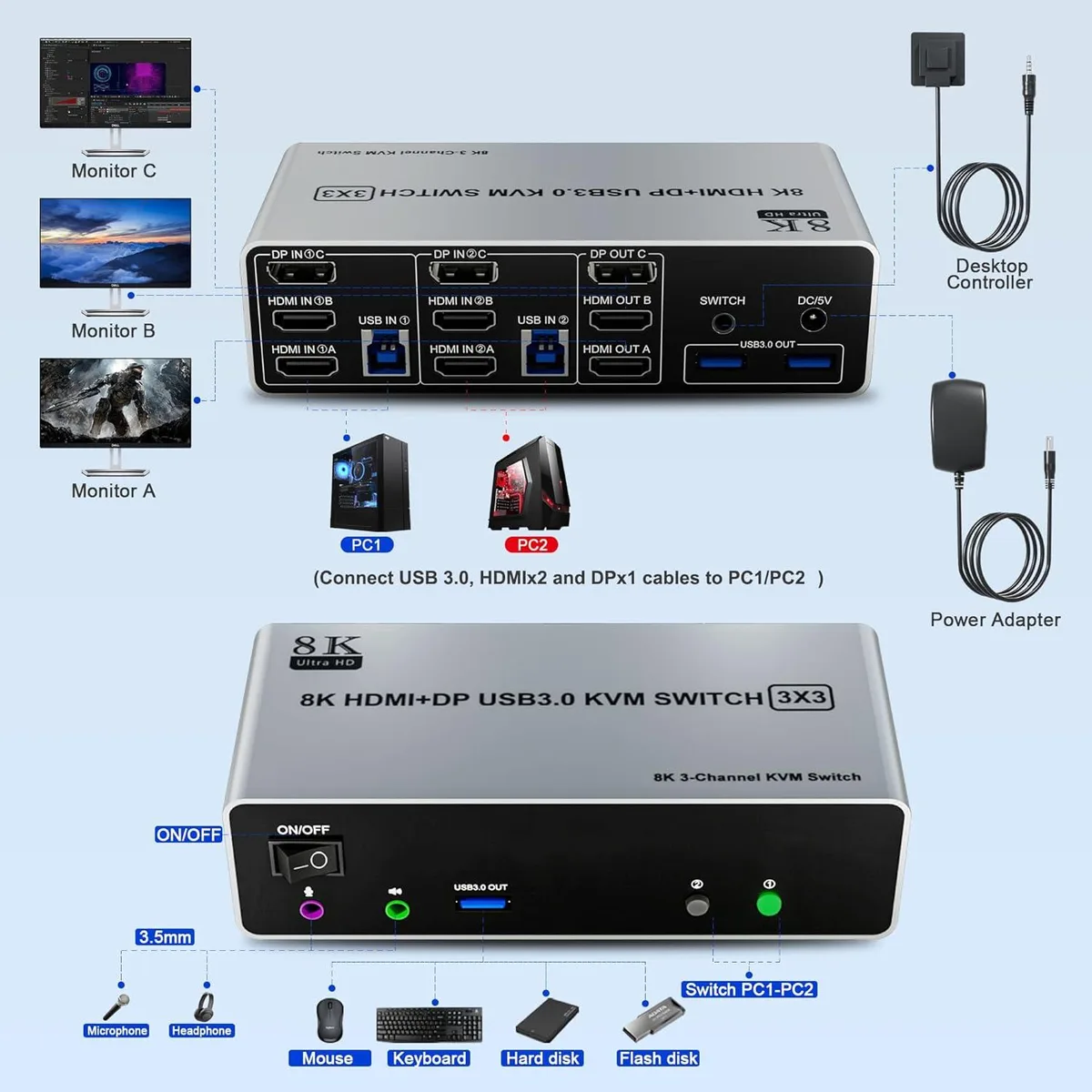

This KVM switch lets two PCs or laptops share three displays — two HDMI and one DisplayPort — along with a single keyboard, mouse and up to three USB 3.0 peripherals. It supports extended, mirrored and spliced multi-monitor layouts. Switching is handled by front-panel buttons or the included wired remote. The unit draws power from a supplied 5 V adapter.
HDMI 2.1 and DP 1.4 Interface Limits
The switch conforms to HDMI 2.1 and DisplayPort 1.4 protocols and is backward compatible with earlier versions. Maximum video throughput reaches 8K at 60 Hz or 4K at 144 Hz, but only when the source graphics card, monitor and cable all support that mode. USB 3.0 ports deliver up to 5 Gbps and remain compatible with USB 2.0 and 1.1 devices. Audio and microphone pass-through is provided.
Capacity and Practical Headroom
The device comfortably handles dual-computer workflows across three 4K high-refresh displays or a single 8K 60 Hz panel, with spare USB bandwidth for keyboard, mouse and a printer or scanner. It runs out of display ports beyond the three provided outputs and cannot accommodate a fourth monitor. Buyers needing more than two computer inputs or additional video heads will require a different solution.
Highlights
- Share two computers across three monitors with 2 HDMI and 1 DisplayPort
- Switch instantly via front buttons or the wired remote control
- Connect keyboard, mouse and peripherals through three USB 3.0 ports at 5 Gbps
- Add headset and microphone with the dedicated audio and mic jacks
- Supports up to 8K at 60 Hz and 4K at 144 Hz for sharp visuals
Specifications
| Type | 2 HDMI + 1 Displayport |
|---|---|
| PC Connectors | HDMI, HDMI, Displayport, USB |
| Computer Connections | 2 Port HDMI + 1 Port Displayport |
| Monitor Connections | 2 Port HDMI + 1 Port Displayport |
| Video Resolution | support resolution up to 8K@30Hz/4K@144Hz. |
| PC Selection | Push Buttons and Wired Controller |
| Monitors Supported | HDMI, HDMI, Displayport |
| LED Indicators | Yes |
| Audio Features | with Audio Mic Port |
| Power Features | 5V Power Adapter |
| USB Features | with 3 integrated USB 3.0 ports which can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0/1.1 devices. |
| Application | KVM Switch 3 Monitors allow two computers to share 2 HDMI + 1 DP monitors and 3 USB 3.0 ports, such as mouse, keyboard, printer, etc. And connect three displays in splicing, extend and mirror displays mode. Splicing Mode: Computer host outputs splice screens on 3 monitors. Extended Mode: PC host in output 3 different images on 3 monitors. Copy Mode: Computer host outputs 3 identical images on 3 monitors. |
| Features | 1. 8K Triple Monitor KVM Switch allows 2 computers/laptops share one set of keyboard, mouse, and 3 monitors (2 HDMI + 1 DisplayPort) 2. Support HDMI 2.1 and DP 1.4 standards and downward compatible. 3 monitors output support up to 8K@60Hz for extended,mirrored or spliced display（Depends on your computer's graphics card.）; 3. 2 Switching modes: Button switch and wired remote. 4. KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output 5. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS 6. The ports that |
| Dimensions | 148mm x 61mm x 45mm |
| Weight | 250g |
| Package Contents | 1 x Triplr Monitor KVM Switch, 2 x USB 3.0 Cable, 1 x Wired Remote, 1 x Power Adapter, 1 x User Manual |
Questions about this item
Should I pick the 2 HDMI + 1 DisplayPort version or a different port mix for three monitors?
This model only comes with two HDMI and one DisplayPort for both PC and monitor sides, so there is no alternative port mix to choose from.
What does the 8K@60Hz headline mean once the switch is in my setup?
It means the switch can pass up to 8K at 60 Hz or 4K at 144 Hz, but only if your graphics card, monitors and cables all support those modes; otherwise it falls back to lower resolutions.
Which HDMI and DisplayPort standards does the switch use, and what do they cap in practice?
It uses HDMI 2.1 and DP 1.4, capping video at 8K@60 Hz or 4K@144 Hz, while the three USB 3.0 ports are limited to 5 Gbps data throughput.
