SMA

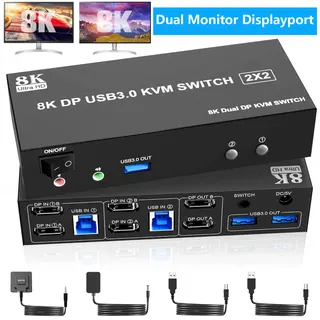

SMA 8K@60Hz DP 1.4 KVM Switch 2 Monitors 2 Computers
A dual-monitor DisplayPort 1.4 KVM switch lets two computers share two displays, three USB 3.0 peripherals and audio with 8K@60Hz or 4K@144Hz support and push-button or wired remote switching
- TypeDisplayPort, USB
- PC ConnectorsDP1.4, USB 3.0, 3.5mm Audio
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video Resolutionsupport resolution 8K@60Hz/4K@144Hz, and backward compatible
- PC SelectionPush Buttons and Wired Remote
- Control two PCs with one keyboard and mouse across dual monitors
- 8K at 60 Hz and 4K at 144 Hz via DisplayPort 1.4
- Switch instantly using front buttons or wired remote
- Share three USB 3.0 devices and separate audio or microphone ports
- Compact 5.5 by 2.4 by 1.2 inch unit needs no external power supply
Dual Monitor DP 1.4 KVM

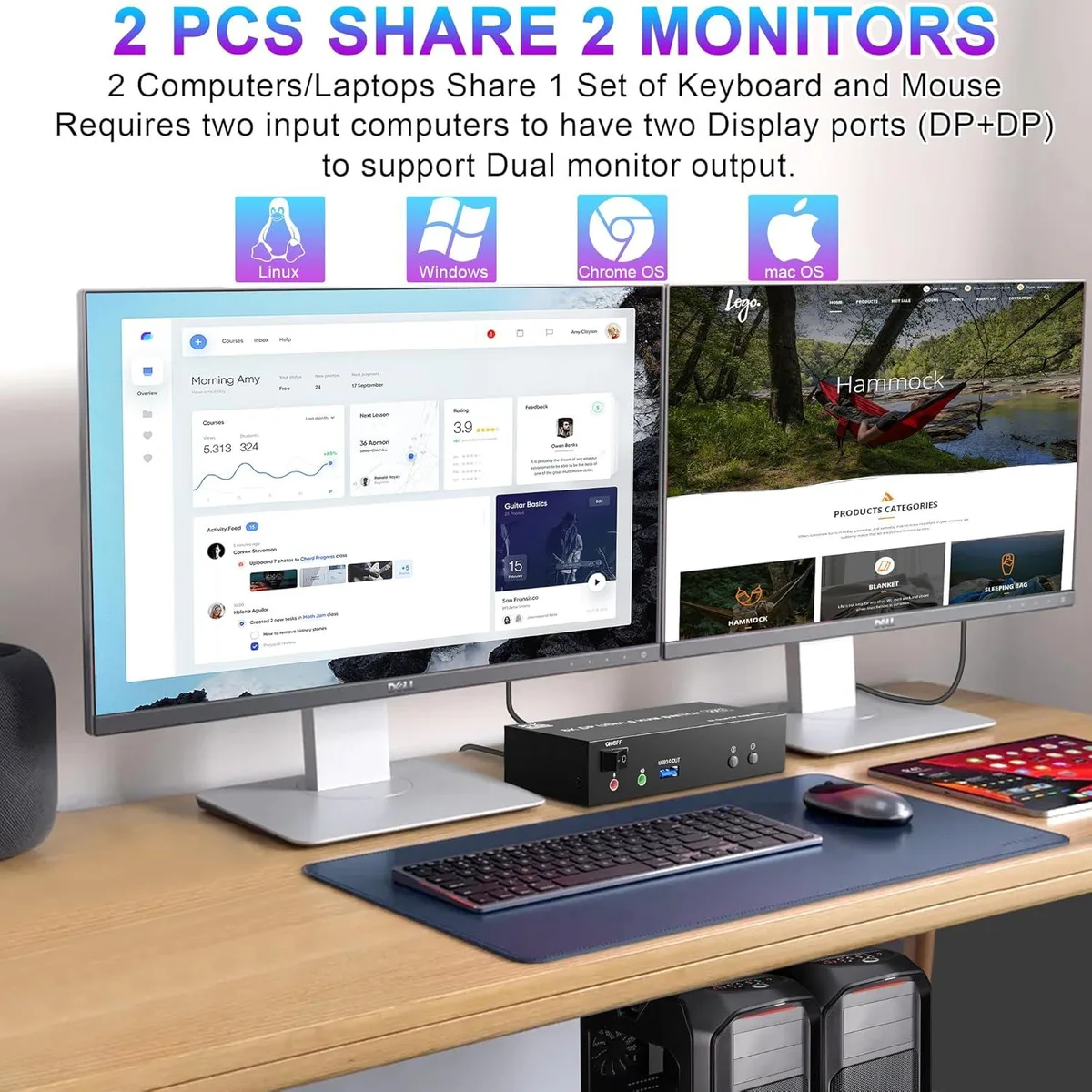

This KVM switch connects two computers to two DisplayPort monitors so a single keyboard and mouse control both systems. It targets professionals who split work between a desktop and a laptop or between separate workstations. The unit handles video, audio and USB peripherals without extra software. Buyers who need more than two computers or who rely on HDMI-only monitors cannot use this device.
Build Integration
Each computer requires two DisplayPort 1.4 outputs, one USB 3.0 port and a 3.5 mm audio jack to feed the switch. The switch then drives two monitors and shares up to three USB 3.0 devices such as a keyboard, mouse and printer. No external power brick is needed for basic operation, freeing a socket on the desk. Systems lacking dual DisplayPort outputs or USB 3.0 cannot connect both monitors simultaneously.
Thermals Noise Power
The unit draws power from the attached computers and ships with an optional adapter for stability, so it adds negligible heat to a workstation. Passive cooling means zero fan noise during switching or extended 8K@60Hz sessions. Power consumption stays low because the switch only routes signals rather than processing video. Users who need guaranteed power delivery for high-draw USB peripherals should verify the host ports can supply sufficient current.
Highlights
- Control two PCs with one keyboard and mouse across dual monitors
- 8K at 60 Hz and 4K at 144 Hz via DisplayPort 1.4
- Switch instantly using front buttons or wired remote
- Share three USB 3.0 devices and separate audio or microphone ports
- Compact 5.5 by 2.4 by 1.2 inch unit needs no external power supply
Specifications
| Type | DisplayPort, USB |
|---|---|
| PC Connectors | DP1.4, USB 3.0, 3.5mm Audio |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | support resolution 8K@60Hz/4K@144Hz, and backward compatible with 4K@60Hz 3D 1080P 720P etc. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | 2 Displayport Monitors |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | This kvm switch 2 monitors 2 computers can connect two computers and two monitors at the same time, you only need a set of mouse and keyboard to control two devices at the same time, which is convenient for you to manage your devices easily and improve work efficiency. |
| Features | 2 computers share one set of wired/wireless keyboard, mouse and 2 monitors. Support 8K@60Hz/4K120Hz. Support extended and mirror display. Switching modes: Button switch and wired remote, switch between 2 computers just need 2-4 seconds, fast and convenient. Cross support most major OS including Windows, Linux, Mac OS. Dual displayport KVM switch with 3 USB 3.0 ports for USB devices. Support DP 1.4 standard, transfer rates up to 32.4Gbps, backwards compatible with DP 1.2 standard. |
| Dimensions | 5.5 x 2.4 x 1.2 inches |
| Weight | 320g |
| Package Contents | 1x 8K Dual Monitor Displayport 1.4 KVM switch, 2x USB 3.0 Cables, 1x Power Adapter, 1x Wired Button Switch, 1x User's manual. |
Questions about this item
What is the maximum video resolution and refresh rate this KVM switch can sustain continuously?
It supports 8K at 60Hz and 4K at 144Hz continuously, with backward compatibility for 4K at 60Hz, 1080P and 720P.
How much power does the unit draw and does it generate noticeable heat or fan noise during all-day operation?
The switch requires no additional power supply beyond the included adapter, runs silently with no fan, and stays cool during extended use.
Which cables and computer ports must I already have to connect two systems to this switch?
Each computer needs two DisplayPort 1.4 outputs and one USB 3.0 port; the box includes two USB 3.0 cables and a wired remote.
