SMA 8 Port HDMI KVM Switch 4K 60Hz with 8 Cables and IR Remote
Controls eight computers from one monitor, keyboard and mouse with 4K 60 Hz video and included cables
- TypeHDMI, USB
- PC Connectors8 PC
- Computer Connections8 Ports
- Monitor Connections1 Port
- Video Resolution3840 x 2160
- PC SelectionPush Buttons
- Control eight computers from one keyboard and mouse set
- Switch instantly via front-panel buttons, IR remote, or wired desktop controller
- View 4K 60 Hz content with 3840 x 2160 resolution support
- Eight 1.5 m HDMI cables included for immediate setup
- Operates without an external power supply
8-port HDMI KVM for multi-PC control
This KVM switch lets one monitor, keyboard, mouse and up to four USB devices serve eight computers. It is built for operators who need to manage several workstations or servers from a single desk without unplugging cables. The package includes eight 1.5-metre HDMI cables, a wired desktop controller and an IR remote so you can start working immediately.
Push-button, remote and wired switching

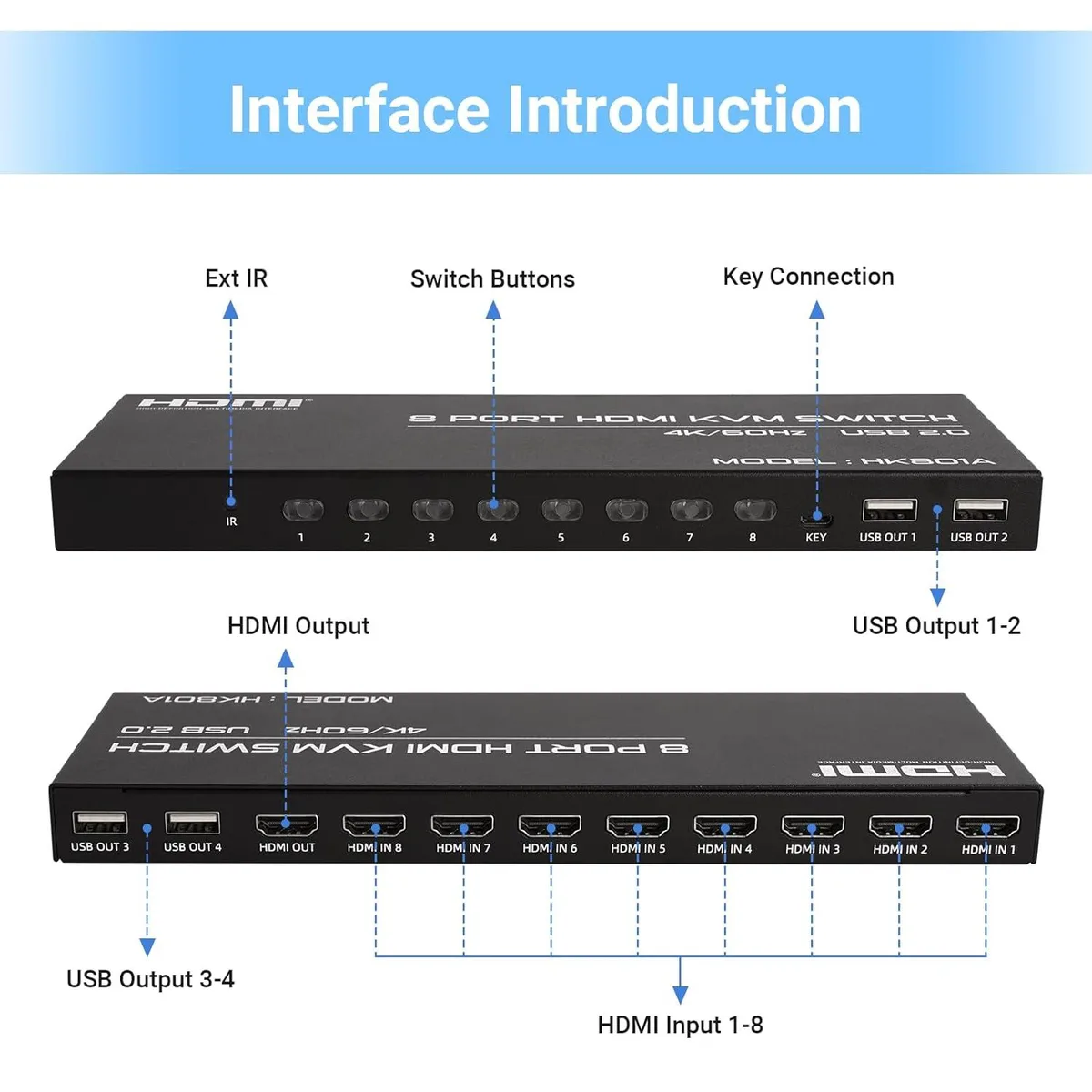

The metal chassis measures 9 by 3 by 0.8 inches and weighs 3.2 pounds, with LED indicators showing the active port. Front-panel buttons give instant manual switching while the wired controller and IR remote allow changes from a short distance. No external power adapter is required, so the unit draws power from the connected computers and keeps the desktop tidy.
Check HDMI outputs and USB peripheral count
Verify that each of the eight computers provides an HDMI video output compatible with 3840 by 2160 resolution at 60, 30, 720 or 1080 lines. Ensure the total USB devices you plan to share do not exceed four ports on the switch. The switch supports a single monitor only, so multi-display setups will not work.
Highlights
- Control eight computers from one keyboard and mouse set
- Switch instantly via front-panel buttons, IR remote, or wired desktop controller
- View 4K 60 Hz content with 3840 x 2160 resolution support
- Eight 1.5 m HDMI cables included for immediate setup
- Operates without an external power supply
Specifications
| Type | HDMI, USB |
|---|---|
| PC Connectors | 8 PC |
| Computer Connections | 8 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons |
| Monitors Supported | 1 Monitor |
| LED Indicators | Yes |
| Power Features | Requires no additional power supply |
| USB Features | with USB support |
| Application | The KVM switch allow you to control up to 8 PCs with a set of keyboard and mouse. Quickly switch between up to 8 computers by simply pressing the switch button. Make your work and life more efficient with our KVM switches. |
| Features | Support 4K Resolution - 8 port HDMI KVM switch supports resolution up to 4K@60Hz(3840*2160@60Hz), and compatible with lower resolutions, such as 4K@30Hz, 1080P, 720P. 3 Switching Modes - You can easily switch between input computers using IR remote control, wired desktop controller or button, the LED indicator light display the input device. Wide Compatibility - The HDMI KVM switch compatible with Windows10/8/7/XP, Mac OS, Linux, Dos and other operating systems. |
| Dimensions | 9 x 3 x 0.8 inches |
| Weight | 3.2 Pounds |
| Package Contents | HDMI KVM Switch*1, 1.5m HDMI cables*8, remote control*1, wired desktop controller*1, user manual*1. |
Questions about this item
Does the HDMI 4K 60 Hz interface on this KVM switch actually deliver 3840 x 2160 at 60 Hz?
Yes, the switch supports 3840 x 2160 at 60 Hz and is backward compatible with 4K 30 Hz, 1080P and 720P resolutions.
What physical space and cabling are needed to fit the 8-port unit and its included cables?
The switch measures 9 x 3 x 0.8 inches and weighs 3.2 pounds; eight 1.5 m HDMI cables are included for the PC connections.
How do I install the switch and which step do people often miss?

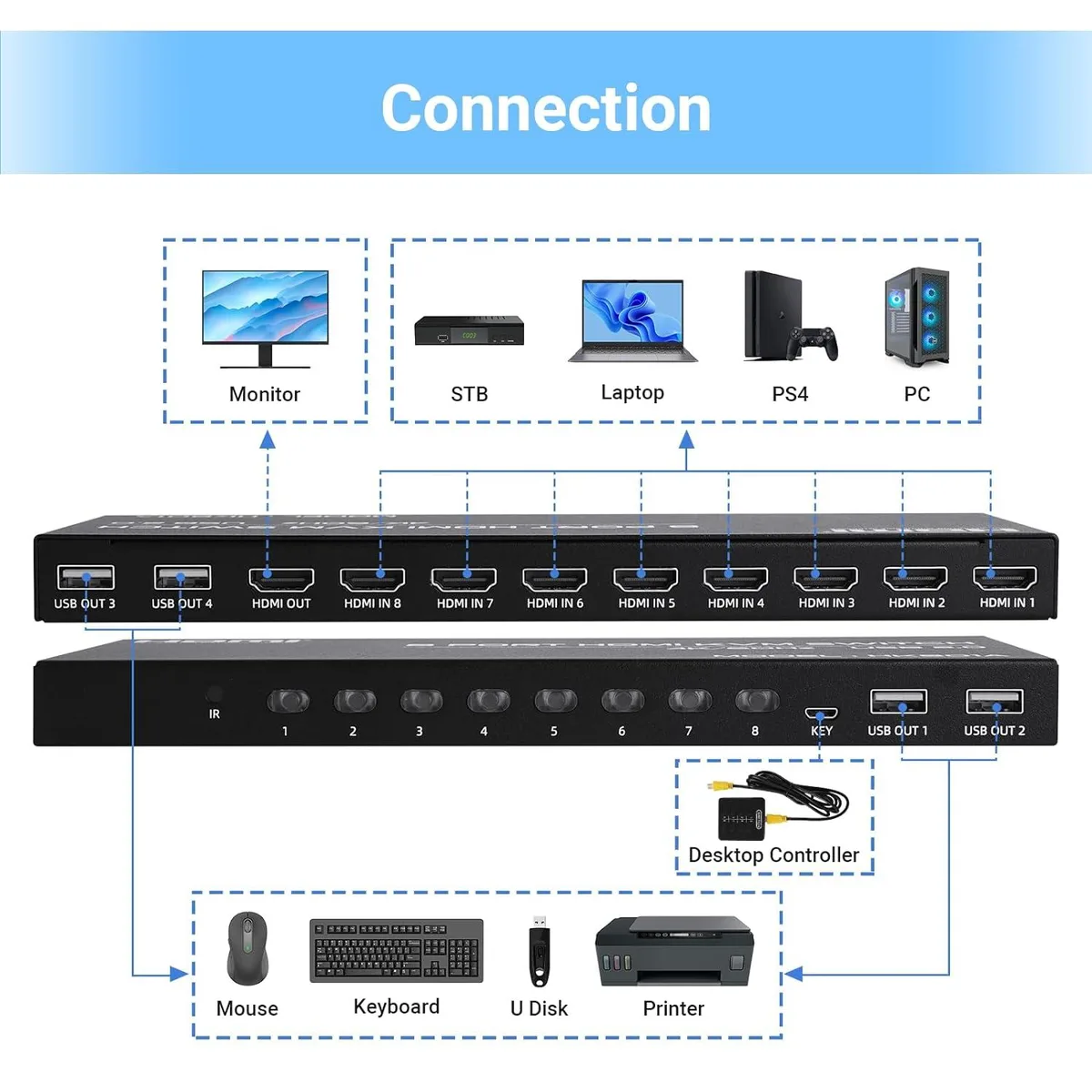

Connect each PC with a supplied HDMI cable, attach keyboard, mouse and up to four USB devices to the console ports, then power the unit — it draws power from the USB links so no external adapter is required.
