SMA
SMA 4x1 HDMI 2.0 KVM Switch 4K@60Hz USB 2.0 HDCP 2.2
Connects four HDMI sources to one display at up to 4K 60 Hz while sharing a keyboard, mouse and USB 2.0 peripherals
- TypeHDMI, USB
- Computer Connections4 Ports
- Control four computers or consoles with one keyboard, mouse and monitor
- 4K 60 Hz video via HDMI 2.0 with HDCP 2.2
- Extra USB 2.0 port shares drives, printers or webcams across all systems
- Automatic EDID handling keeps the best resolution on every switch
- Compact 11.0 × 6.0 × 3.3 cm metal case with built-in ESD protection
4-Port HDMI KVM Switch for Four Computers
This HDMI 2.0 KVM switch lets a single monitor, keyboard and mouse control up to four HDMI-equipped hosts such as PCs, laptops, game consoles or servers. It supports mechanical and wireless input devices and adds a USB 2.0 port for sharing peripherals like flash drives, printers or webcams between the connected systems.
Compact Metal Chassis with Front-Panel Buttons
The unit measures 11.0 x 6.0 x 3.3 cm and uses HDMI-A ports for video plus USB-B inputs and a USB-A output for peripheral sharing. A dedicated switch cable provides tactile source selection, while the integrated EDID reader stores each display's parameters so resolution handshake remains consistent whenever you swap between the four connected computers.
Passive Cooling Draws Maximum 2 Watts
With a maximum power dissipation of 2 W the switch runs silently without a fan and operates reliably from -5 to 70 °C at 5 to 90 % humidity. The HDMI 2.0 link handles an 18 Gbps data rate and a 340 MHz pixel clock, delivering stable 4K@60Hz video with HDCP 2.2 compliance and built-in ESD protection for continuous daily use.
Highlights
- Control four computers or consoles with one keyboard, mouse and monitor
- 4K 60 Hz video via HDMI 2.0 with HDCP 2.2
- Extra USB 2.0 port shares drives, printers or webcams across all systems
- Automatic EDID handling keeps the best resolution on every switch
- Compact 11.0 × 6.0 × 3.3 cm metal case with built-in ESD protection
Specifications
| Type | HDMI, USB |
|---|---|
| Computer Connections | 4 Ports |
Questions about this item
What does the HDMI 2.0 interface cap the data rate at in practice?
The HDMI 2.0 interface caps the maximum data rate at 18 Gbps with a maximum pixel clock of 340 MHz.
What are the physical dimensions and connection types needed to fit this KVM switch?
The unit measures 11.0 x 6.0 x 3.3 cm and uses HDMI-A interfaces for video, USB-B for PC inputs, and USB-A for the console output.

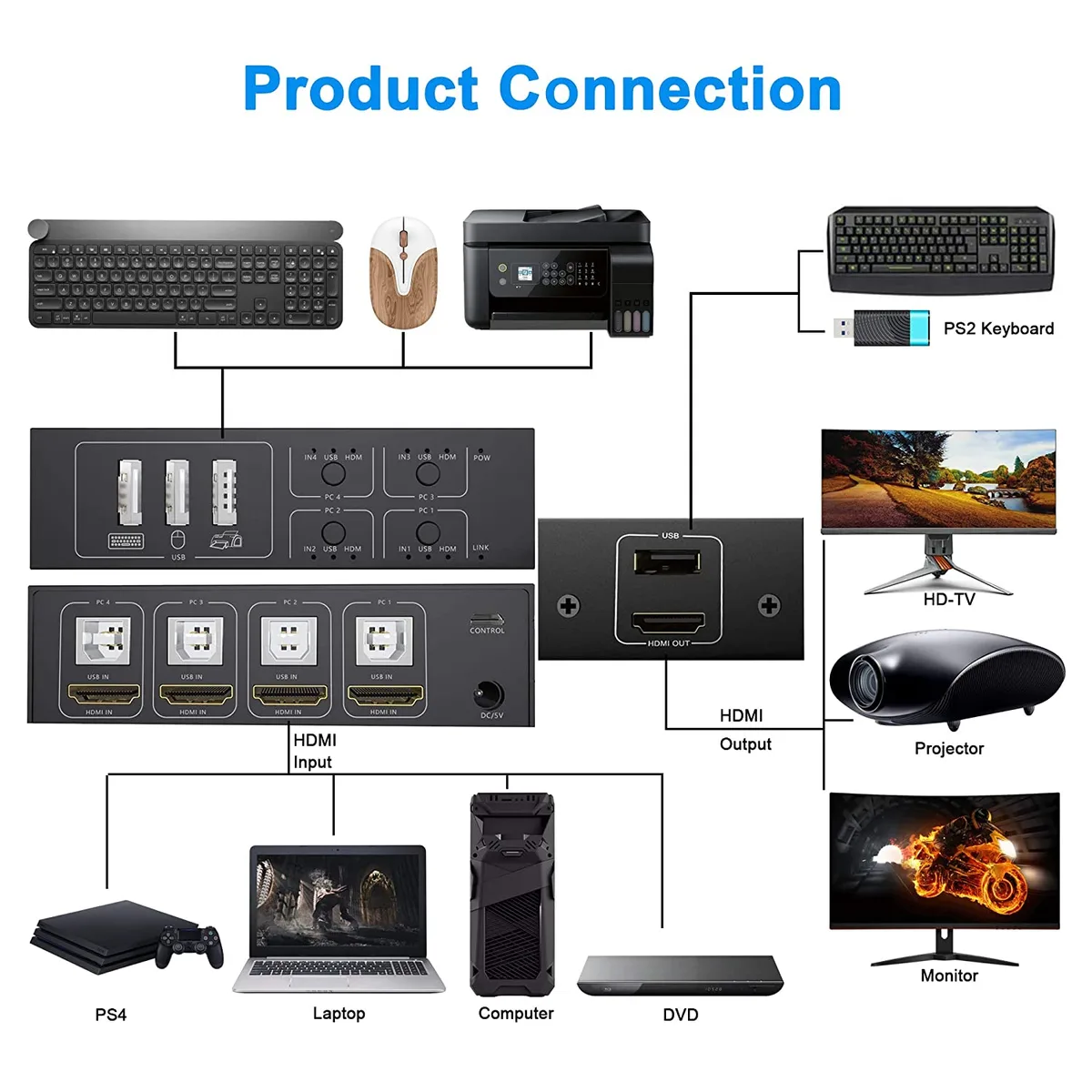

How is the switch installed and what step do people often miss?
Connect the four PCs via HDMI and USB-B cables, attach your monitor, keyboard and mouse to the HDMI and USB-A outputs, plug in the power cable, then press the front button or use hotkeys to switch; the step often missed is powering the unit before switching sources.
