SMA
SMA 2-Port DisplayPort KVM Switch 4K 60Hz 4 USB 3.0
A dual-monitor DisplayPort KVM switch lets two computers share two 4K 60 Hz displays, four USB 3.0 ports and audio with push-button or wired remote switching
- TypeDisplayport KVM Switch 2 Monitors 2 Computers
- PC ConnectorsDP, USB
- Computer Connections2 Ports
- Monitor Connections2 Ports
- Video ResolutionThis 2 In 2 Out KVM switches supports up to 4K@60Hz Output,
- PC SelectionPush Buttons and Wired Remote
- Share two DisplayPort monitors between two computers
- Four USB 3.0 ports plus audio let you share keyboard, mouse, printer and headset
- Supports 4K at 60 Hz for sharp dual-screen visuals
- Switch via front buttons or the wired desktop controller with LED status
- Compact 5.12 x 2.44 x 1.18 inch design includes power adapter and cables

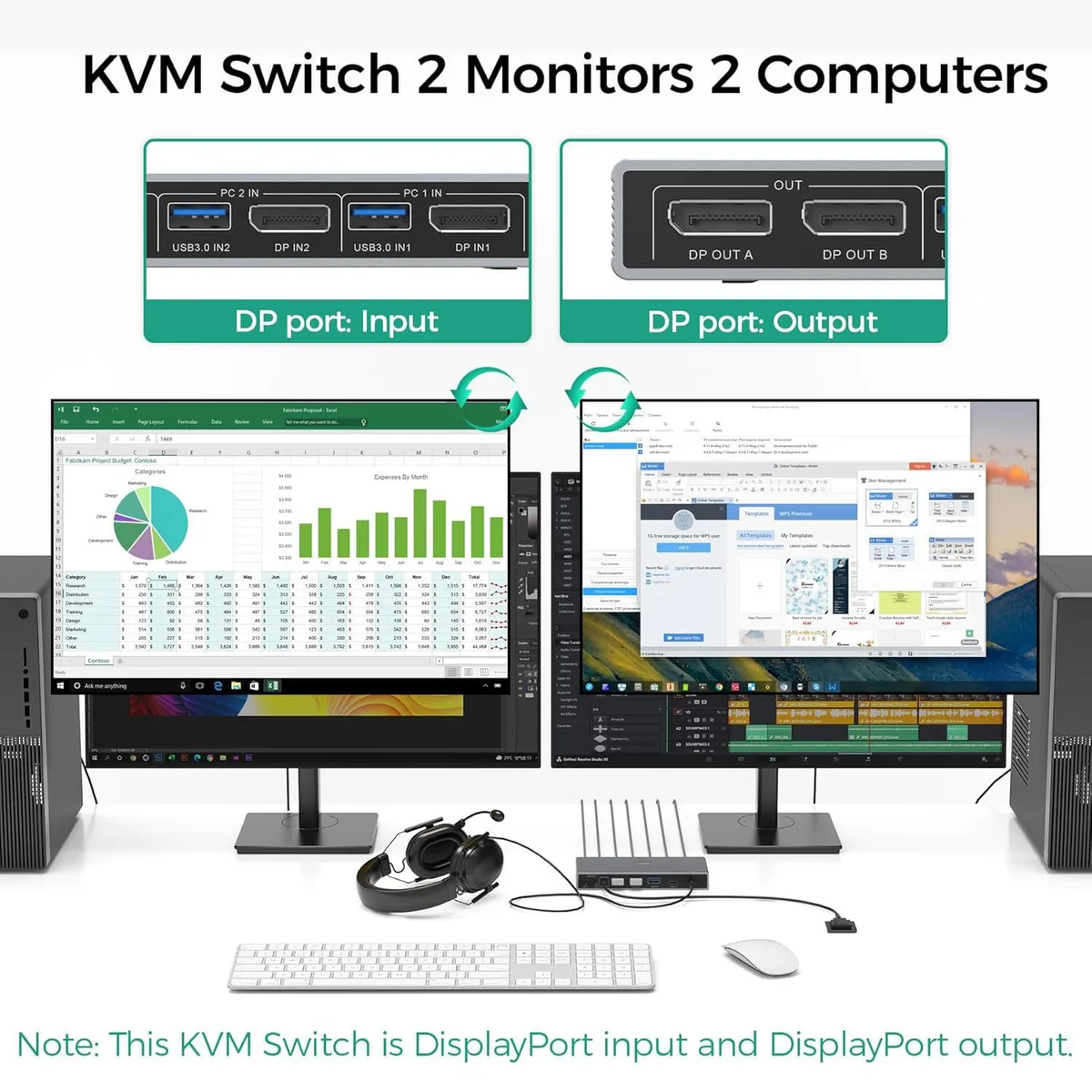

Dual-monitor DisplayPort KVM
This KVM switch lets two computers share two DisplayPort monitors, a keyboard, a mouse and up to four USB 3.0 peripherals. It supports video resolution up to 4K at 60 Hz and includes a wired remote controller for convenient switching. The unit requires the supplied DC power adapter to operate. Windows, Mac OS and Linux are all supported.
Ideal for twin-screen workstations
The switch suits users who need to control two DisplayPort-equipped PCs from one dual-monitor desk without unplugging cables. It will not suit setups that rely on HDMI, DVI or VGA monitor inputs, nor buyers who need EDID emulation or the ability to switch while a computer is in sleep mode. Each computer must provide one DisplayPort output and one USB Type-A port.
4K 60 Hz dual-head switching
The decisive specification is the 4K at 60 Hz video bandwidth across two DisplayPort channels. If your monitors and graphics cards can drive that resolution and refresh rate over DisplayPort, the switch will pass the signal; if either end is limited to a lower standard, the switch cannot improve it.
Highlights
- Share two DisplayPort monitors between two computers
- Four USB 3.0 ports plus audio let you share keyboard, mouse, printer and headset
- Supports 4K at 60 Hz for sharp dual-screen visuals
- Switch via front buttons or the wired desktop controller with LED status
- Compact 5.12 x 2.44 x 1.18 inch design includes power adapter and cables
Specifications
| Type | Displayport KVM Switch 2 Monitors 2 Computers |
|---|---|
| PC Connectors | DP, USB |
| Computer Connections | 2 Ports |
| Monitor Connections | 2 Ports |
| Video Resolution | This 2 In 2 Out KVM switches supports up to 4K@60Hz Output, allowing you to enjoy realistic and colorful visual effects. |
| PC Selection | Push Buttons and Wired Remote |
| Monitors Supported | DP, DP |
| LED Indicators | Yes |
| Audio Features | with Audio |
| Power Features | Come with DC Power Adapter |
| USB Features | This KVM Switch Computers 2 Monitors has 3*USB A ports and 1*USB C port and features a headphone port for audio output.. You can share one mouse, keyboard, USB flash drive, printer, etc. USB 3.0 ports support data transfer rates of up to 5Gbps, enabling more efficient work and faster transfers of photos, files, and more. Note: Please connect the included 5V power adapter for use |
| Application | This USB KVM switcher enables two computers with DisplayPort interfaces to share two DisplayPort monitors. When you find the connections of traditional 2 in 2 out KVM switches too complicated, the KVM switch simplify complex connections. Each computer requires only 1*DisplayPort interface and 1*USB Type-A interface, and each monitor requires only 1*HDMI interface. Note: Please ensure both your computer and monitor support DisplayPort interface |
| Features | with 4 USB 3.0 Ports and Audio Output |
| Dimensions | 5.12 x 2.44 x 1.18 inches |
| Weight | 230g |
| Package Contents | 1 x DP KVM Switch, 2 x USB A to USB A Cable, 1 x Desktop Controller, 1 x Power Adapter, 1 x Power Cable, 1 x User Manual. |
Questions about this item
What DisplayPort bandwidth does this KVM switch support, and what resolution does it cap at?
The switch handles up to 4K at 60 Hz through its DisplayPort links.

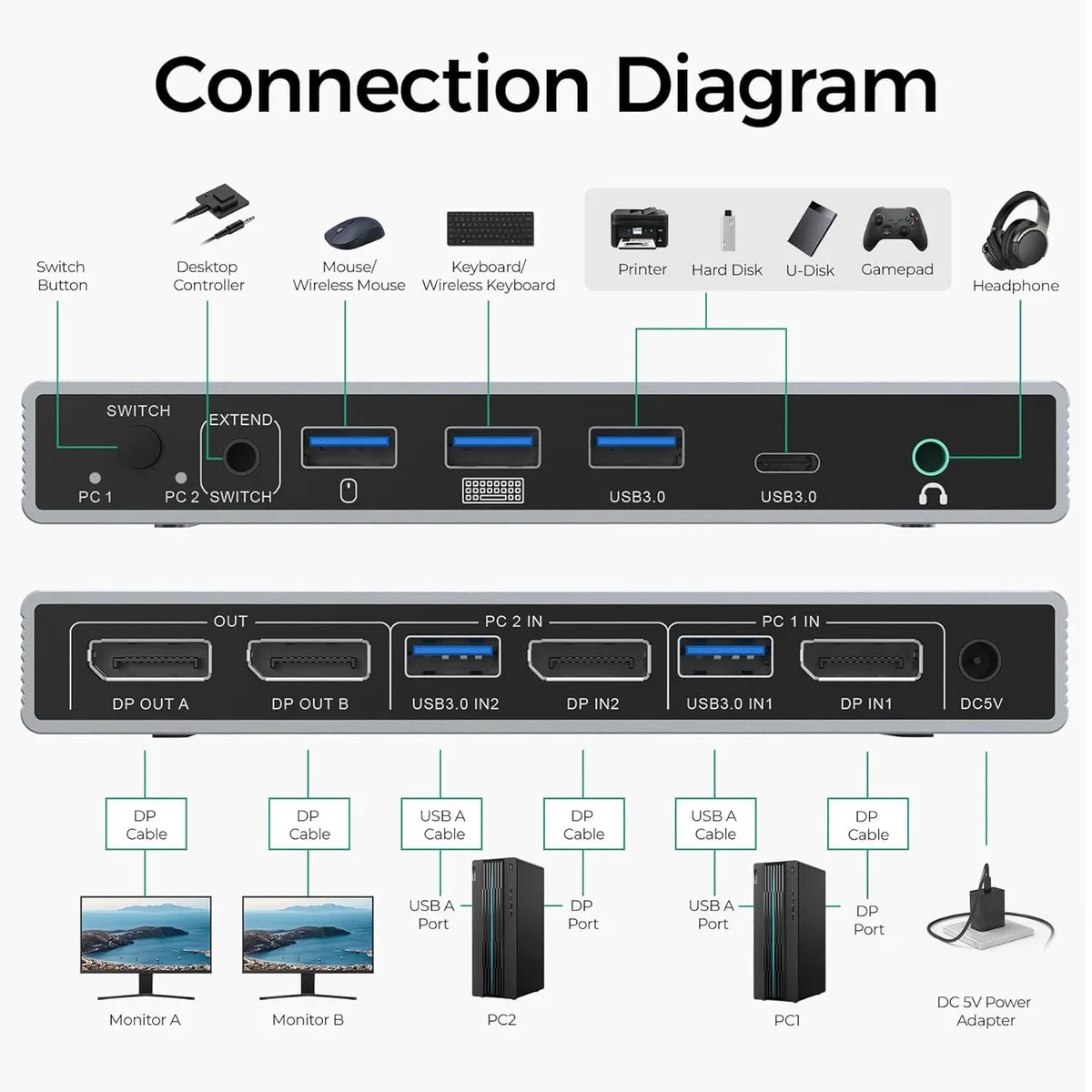

What cables and ports are required on each computer for the dual-monitor setup?
Each computer needs one DisplayPort output and one USB Type-A port; the box includes two USB A-to-A cables for those links.
How do you switch between the two connected PCs, and what step is often missed?
Press the front button or use the wired desktop controller; the included 5 V power adapter must be connected or switching will not work.
