Sky-Watcher Evoguide 50DX APO 50mm f/4.8 Guide Scope

Guide Scope for Astrophotography

The Sky-Watcher Evoguide 50DX is a 50mm aperture apochromatic guide scope designed for astrophotographers who need precise autoguiding during long exposures. Its ED doublet optical design reduces chromatic aberration to keep guide stars sharp and round. The fast f/4.8 focal ratio and 242mm focal length provide a wide field that simplifies finding and locking onto suitable guide stars. It suits imagers who want a dedicated, lightweight guide telescope rather than an off-axis guider.

Mounting and Camera Connection

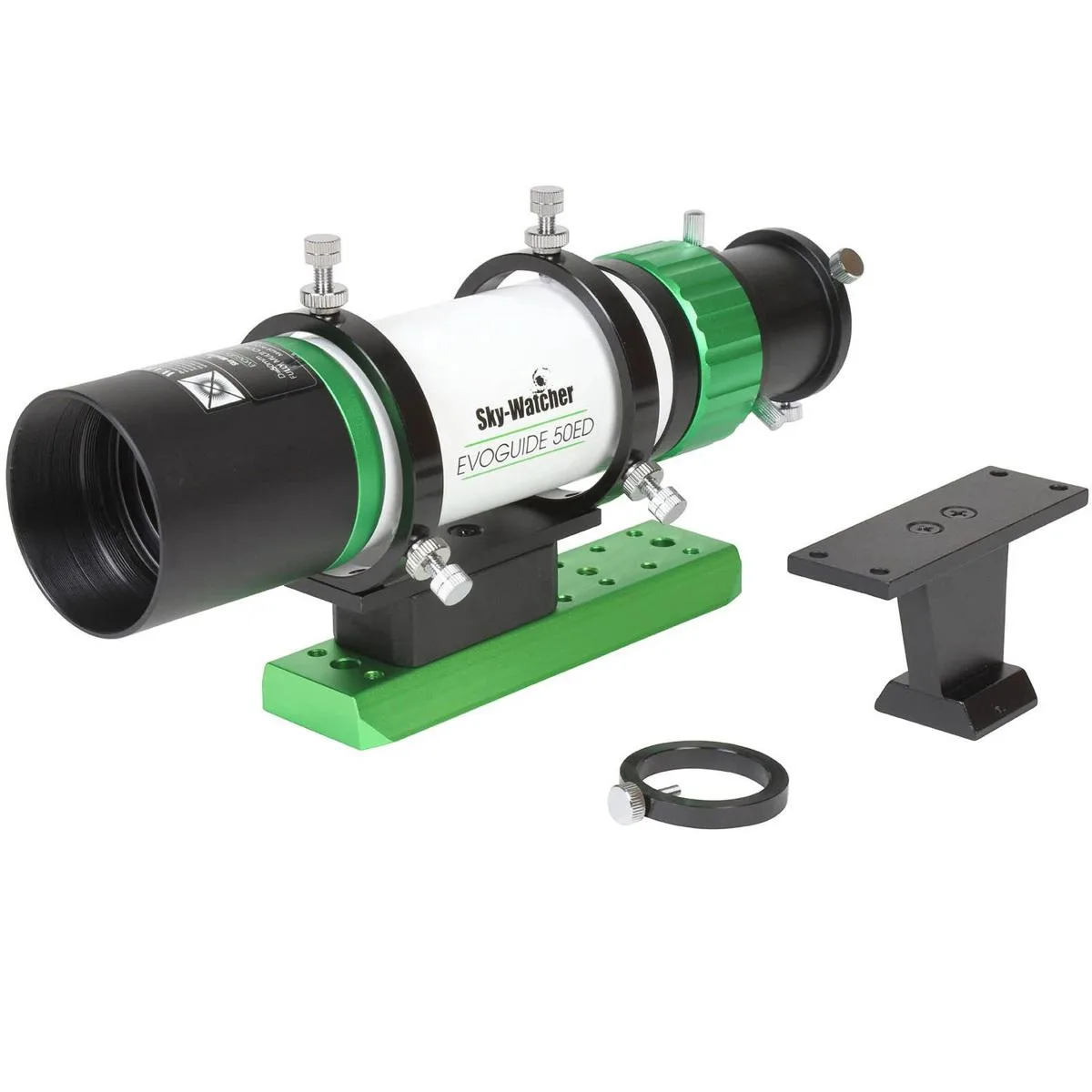

A Vixen-style dovetail plate and integrated tube rings let the scope clamp directly onto most telescope mounts without extra hardware. M42 threads on the rear barrel accept standard guide cameras and filter wheels for a secure, tool-free connection. The single-speed focus ring is positioned for easy access while the rig is pointed overhead, allowing fine focus adjustments without disturbing balance. These features remove the need for separate mounting plates or custom adapters.

50mm Aperture Decides Suitability

The 50mm objective sets the light grasp and maximum practical guide-star magnitude, so it determines whether the scope can track faint stars with your chosen guide camera. If your imaging setup demands a larger entrance pupil to reach dimmer guide stars in light-polluted skies, this aperture will limit performance. Conversely, the modest 50mm size keeps weight and flexure low on smaller mounts where a bigger guide scope would cause balancing issues.
