Satin chrome electronic pushbutton door lock with lever handle

Simplex

Simplex E5031XSWL-26D Satin Chrome Electronic Pushbutton Door Lock

SKU CH-R3K2-CD985 MPN E5031XSWL-26D

Electronic pushbutton lock stores up to 100 access codes, offers key override for Kaba cylinders with Schlage "C" keyway, and meets Grade 1 and UL fire standards

  • FinishSatin Chrome
  • Selling UnitBox
  • Backset2-3/4"
  • KeyingKeyed Different
  • Electronic pushbutton entry removes the need for physical keys
  • Stores up to 100 access codes for flexible user management
  • ANSI/BHMA A156.2 Grade 1 certification confirms heavy-duty durability
  • Key override compatible with K-I-L Kaba cylinders using Schlage "C" keyway
  • 3-hour UL/ULC fire rating approved for "A" label doors

Electronic Pushbutton Access Control

The Simplex E5031XSWL-26D is a heavy-duty cylindrical lockset that grants exterior entry by keypad combination while maintaining free egress. It stores up to 100 unique access codes programmable at the keypad or via optional software. The lock operates without wiring through the door and includes a key override for K-I-L Kaba cylinders with Schlage "C" keyway.

Door Preparation And Compatibility Checks

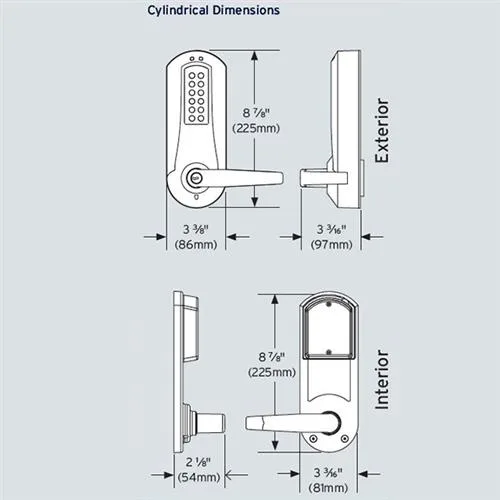

Verify the door thickness falls between 1-3/8" and 2-1/4" and that the backset measures exactly 2-3/4". Ensure the existing cut-out matches a cylindrical 1/2" throw latch with floating faceplate. Confirm the cylinder is a K-I-L Kaba type with Schlage "C" keyway for the mechanical override to function correctly.

Installation Context And Operational Benefits

The unit fits standard commercial door prep and carries a 3-hour UL/ULC fire rating for "A" label openings. ADA-compliant levers and ANSI/BHMA A156.2 Grade 1 certification support high-traffic indoor and outdoor use. By removing physical credential management, the lock frees administrators from issuing, tracking and collecting keys or cards.

Highlights

  • Electronic pushbutton entry removes the need for physical keys
  • Stores up to 100 access codes for flexible user management
  • ANSI/BHMA A156.2 Grade 1 certification confirms heavy-duty durability
  • Key override compatible with K-I-L Kaba cylinders using Schlage "C" keyway
  • 3-hour UL/ULC fire rating approved for "A" label doors

Specifications

BrandSimplex
ModelE5031XSWL-26D
FinishSatin Chrome
Selling UnitBox
Backset2-3/4"
KeyingKeyed Different

Questions about this item

What comes in the box with the Simplex E5031XSWL-26D and what must be purchased separately?

The lock body, satin chrome levers, 1/2" throw latch, and mounting hardware are included. A compatible K-I-L Kaba cylinder with Schlage "C" keyway is not supplied and must be ordered separately.

Which version of the Simplex E5031XSWL-26D should I choose for a standard commercial door?

This single model is Grade 1 certified with a 2-3/4" backset and fits doors 1-3/8" to 2-1/4" thick, covering most standard commercial preparations.

How does the 100-code capacity work once the lock is installed on a real door?

Up to 100 unique access codes can be programmed directly at the keypad or via optional Excel-based software, and the lock operates without any wiring through the door.
