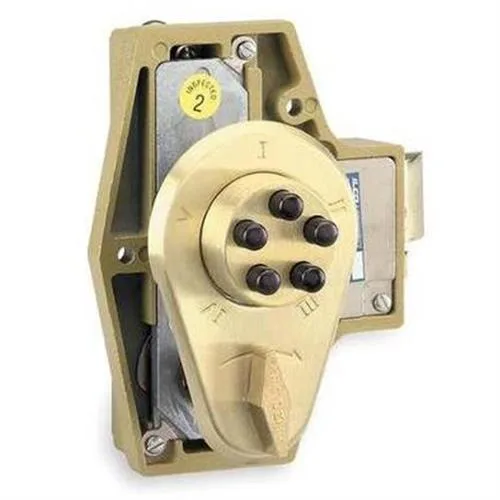

Satin brass mechanical pushbutton door lock with angled strike plate

Simplex

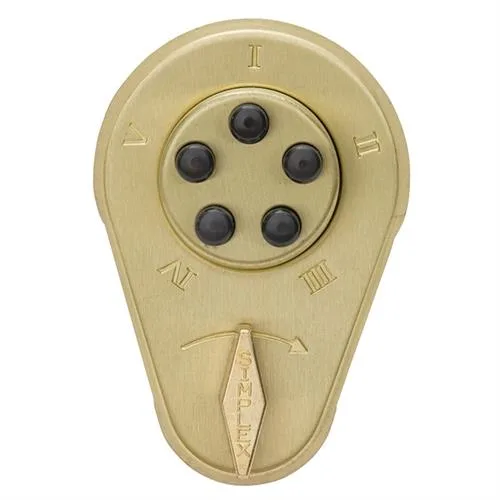

Simplex 919-04 Satin Brass Mechanical Pushbutton Combination Door Lock

SKU CH-R3D2-ZTX1P MPN 919-04

Keyless mechanical pushbutton lock with satin brass finish, deadlocking spring latch and angle strike for doors 1-3/4" to 2-1/8" thick

  • FinishSatin Brass
  • Selling UnitBox
  • KeyingKeyed Different
  • Keyless entry removes the need for physical keys
  • Mechanical operation eliminates battery replacement cost and effort
  • Deadlocking spring latch relocks automatically each time the door closes
  • Single access code programmed at the keypad without removing the lock
  • Fits doors 1-3/4" to 2-1/8" thick for versatile installation

Mechanical keyless entry for commercial doors

The Simplex 919-04 is a heavy-duty pushbutton combination lock built for doors 1-3/4" to 2-1/8" thick. It suits offices, storerooms or any interior opening where issuing physical keys is impractical. The satin brass finish resists wear in high-traffic areas. Installation requires no wiring or battery changes.

Deadlocking latch and angle strike included

The 5/8" deadlocking spring latch automatically secures the door each time it closes, preventing lock manipulation through the door gap. An angle strike is supplied in the box, so the latch engages cleanly on both inswing and outswing frames. The single access code is set at the keypad without removing the lock from the door. Free egress is always available via the interior thumbturn.

Backset choice decides fit

Outswing doors need a 2-9/16" backset; inswing doors need a 2-1/2" backset. Measure the existing bore before ordering — the lock only fits one of those two dimensions. Buyers who need a different backset or a keyed override cylinder cannot use this model.

Highlights

  • Keyless entry removes the need for physical keys
  • Mechanical operation eliminates battery replacement cost and effort
  • Deadlocking spring latch relocks automatically each time the door closes
  • Single access code programmed at the keypad without removing the lock
  • Fits doors 1-3/4" to 2-1/8" thick for versatile installation

Specifications

BrandSimplex
Model919-04
FinishSatin Brass
Selling UnitBox
KeyingKeyed Different

Questions about this item

Does the mechanical pushbutton combination mechanism on the 919-04 require any batteries or scheduled lubrication?

The lock is fully mechanical and eliminates the material and labour expense of battery replacements; no power source is needed.

What stops the latch from being forced back when the door is closed under pressure?

A 5/8" deadlocking spring latch automatically relocks each time the door closes, resisting forced retraction.

How much heat or noise does the lock produce during continuous daily operation?

As a purely mechanical device with no motor or electronics, it generates no measurable heat and operates silently.
