Simplex
Simplex 6204-86 door lock, gray mechanical pushbutton combination, 70mm backset, no key
Mechanical pushbutton combination lock with 70mm backset, 13mm latch throw and 3-hour UL fire rating for doors 35–57mm thick
- FinishGray
- TypeMechanical Pushbutton Combination Lock With 2-3/4" Backset (
- Backset2-3/4"
- KeyingNO KEY
- Keyless entry removes key management hassle
- Mechanical operation needs no batteries or wiring
- 3-hour UL/ULC fire rating protects "A" labeled doors
- Fits doors 35 to 57 mm thick for wood or metal
- 70 mm backset and 13 mm latch suit standard preps
Product Identity

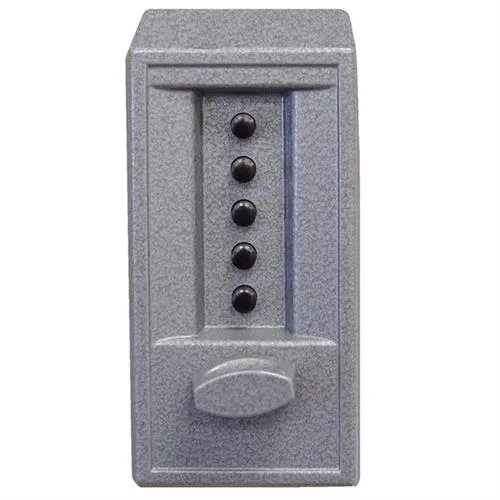

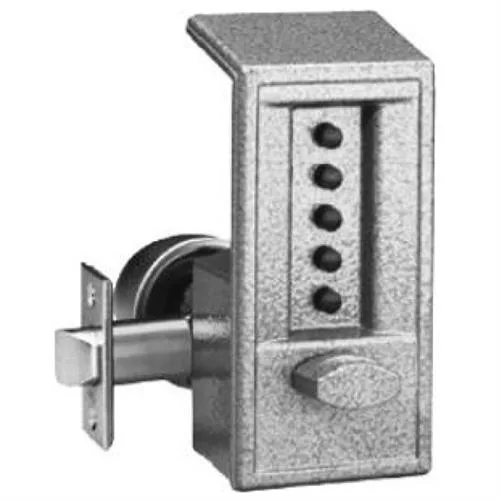

The Simplex 6204-86 is a gray mechanical pushbutton combination lock designed for exterior access without keys. It suits commercial or residential doors where a single shared code replaces physical credentials and battery maintenance is unwanted.
Deciding Specification
The lock requires a 70mm backset cut-out and fits doors between 35mm and 57mm thick. If the existing preparation or door thickness falls outside these dimensions the lock cannot be installed.
Installation Context
A floating faceplate and standard strike plate are included for wood or metal doors. The all-metal cast housing with clutch-protected thumbturn and fixed interior knob allows free egress at all times while the 3-hour UL/ULC fire rating satisfies requirements for "A" labeled doors.
Highlights
- Keyless entry removes key management hassle
- Mechanical operation needs no batteries or wiring
- 3-hour UL/ULC fire rating protects "A" labeled doors
- Fits doors 35 to 57 mm thick for wood or metal
- 70 mm backset and 13 mm latch suit standard preps
Specifications
| Brand | Simplex |
|---|---|
| Model | 6204-86 |
| Finish | Gray |
| Type | Mechanical Pushbutton Combination Lock With 2-3/4" Backset (NO KEY) |
| Backset | 2-3/4" |
| Keying | NO KEY |
Questions about this item
How does the 70mm backset affect where I drill the hole in my door?
The 70mm backset means you drill the bore hole centre 70mm from the door edge. This matches the common 2-3/4 inch standard used on many commercial and residential doors.
What does the 3-hour UL/ULC fire rating cover for this lock?
The lock carries a 3-hour UL/ULC fire rating for "A" labeled doors, meaning it can remain secure and operable during a three-hour fire test on a rated door assembly.
What door thicknesses does the 6204-86 fit without extra parts?
It fits doors from 35mm to 57mm thick (1-3/8 to 2-1/4 inches) using the supplied components, with a unified interior trim plate and fixed interior knob included.
