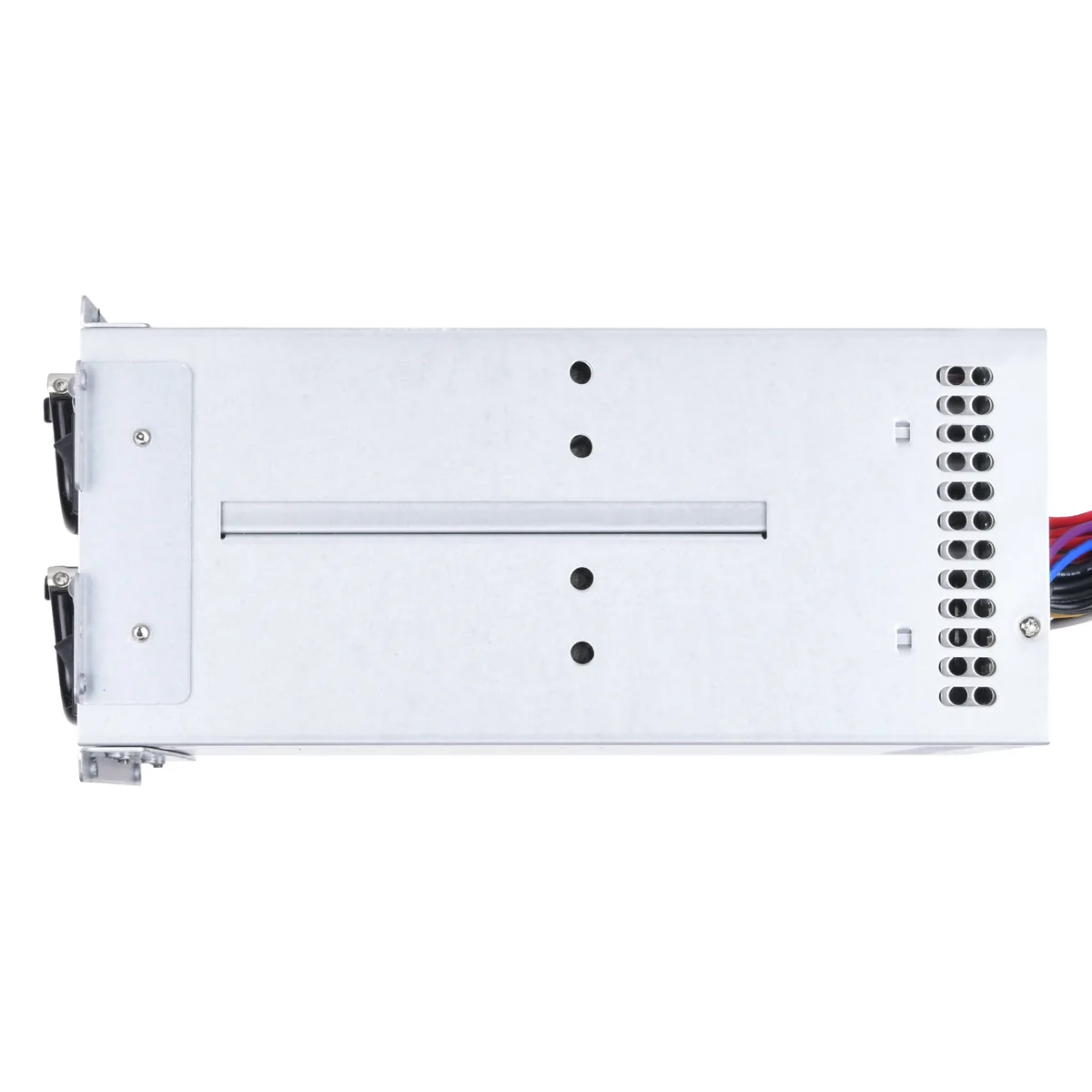

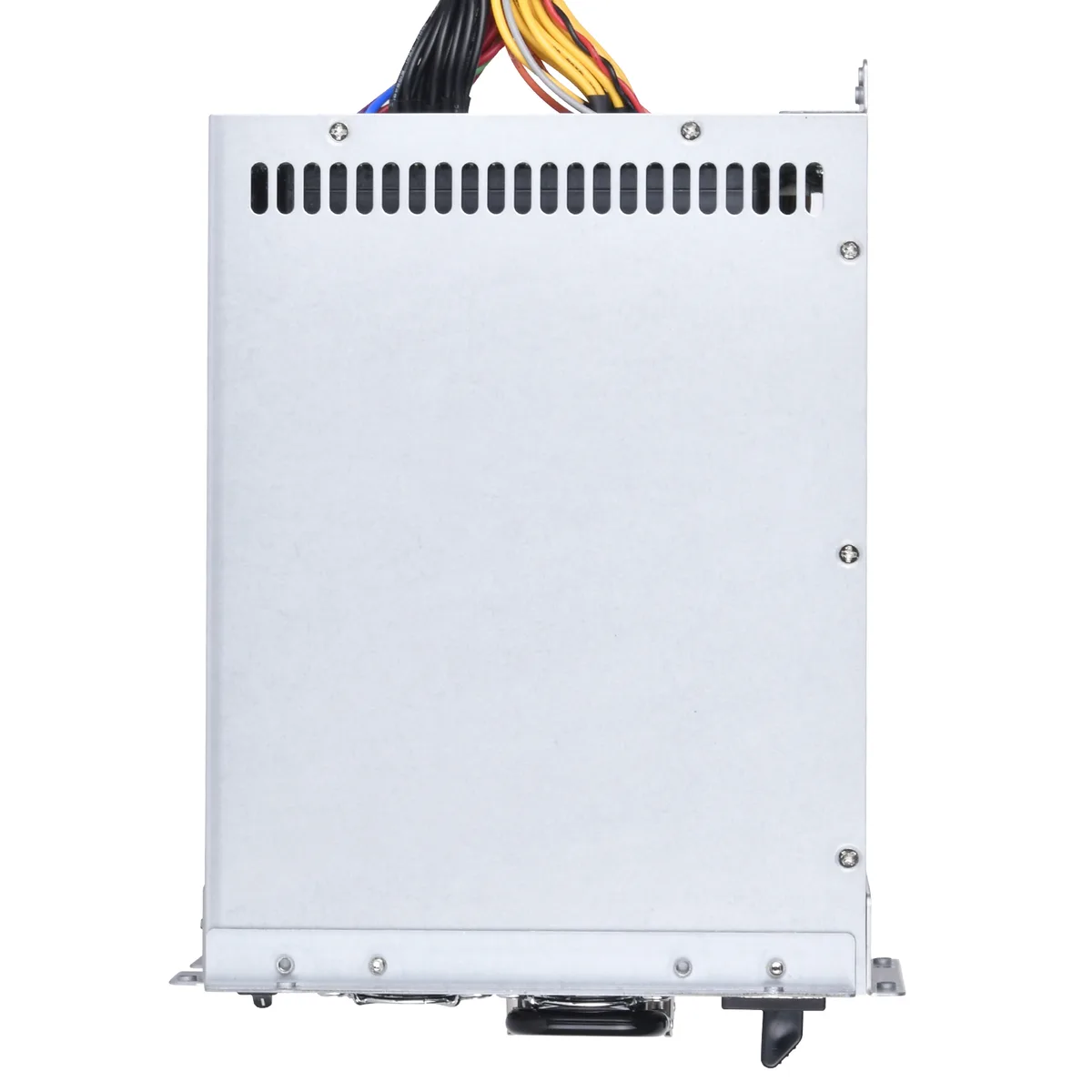

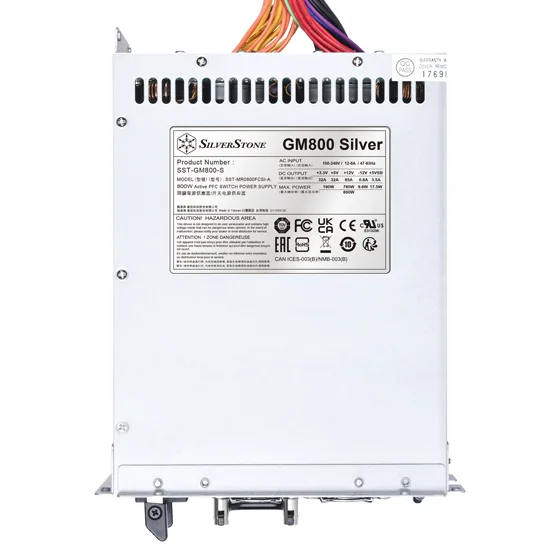

Silver rectangular server power supply with pull-out handle, 5.91 by 3.39 by 7.83 inches

Silverstone Technology

Silverstone Technology GM800-S 800W 1+1 redundant server power supply

SKU CH-W9Y7-B60VP MPN GM800-S

An 800W 1+1 redundant server PSU with hot-swappable modules, Japanese capacitors and 85–87% efficiency at 50°C

  • TypeATX
  • 1+1 redundant design keeps systems running if one unit fails
  • Hot-swappable modules allow replacement without downtime
  • Japanese electrolytic capacitors support 100000-hour MTBF
  • Cybenetics Silver efficiency between 85% and 87% cuts waste heat
  • Pull-out handle bars simplify installation and maintenance

Redundant 800 W server power supply

The Silverstone GM800-S delivers 1+1 redundant power in a PS/2 mini redundant form factor. Two hot-swappable modules each provide 800 W continuous output at 50 °C for 24-hour operation. It targets rack-mount servers and workstations that cannot tolerate downtime during a module swap.

Japanese capacitors and pull-out handles

Japanese electrolytic capacitors back the single +12 V rail rated at 780 W combined. Active PFC maintains a power factor above 0.9 at full load across 90–264 V input. Pull-out handle bars let technicians replace a module without tools while the system stays online.

51 dBA noise and Cybenetics Silver efficiency

Four 40 mm DC fans cool the unit, producing 51 dBA under load. Overall efficiency sits between 85 % and 87 % with a single module, meeting Cybenetics Silver level. MTBF is rated at 100,000 hours at 0–50 °C operating temperature.

Highlights

  • 1+1 redundant design keeps systems running if one unit fails
  • Hot-swappable modules allow replacement without downtime
  • Japanese electrolytic capacitors support 100000-hour MTBF
  • Cybenetics Silver efficiency between 85% and 87% cuts waste heat
  • Pull-out handle bars simplify installation and maintenance

Specifications

TypeATX
Shipping weight2.27 kg
Package size127 × 127 × 127 mm

Questions about this item

What input voltage range does the GM800-S accept?

The unit operates from 90 to 264 V AC across a 47 to 63 Hz frequency range with active power factor correction above .9 at full load.

What chassis space does the PS/2 mini redundant form factor require?

The housing measures 5.91 inches wide, 3.39 inches high and 7.83 inches deep without the mounting bracket.

How do I install the hot-swappable module without losing redundancy?

Slide the replacement unit firmly into the bay until the handle bar latches; the system maintains power through the second module during the swap.
