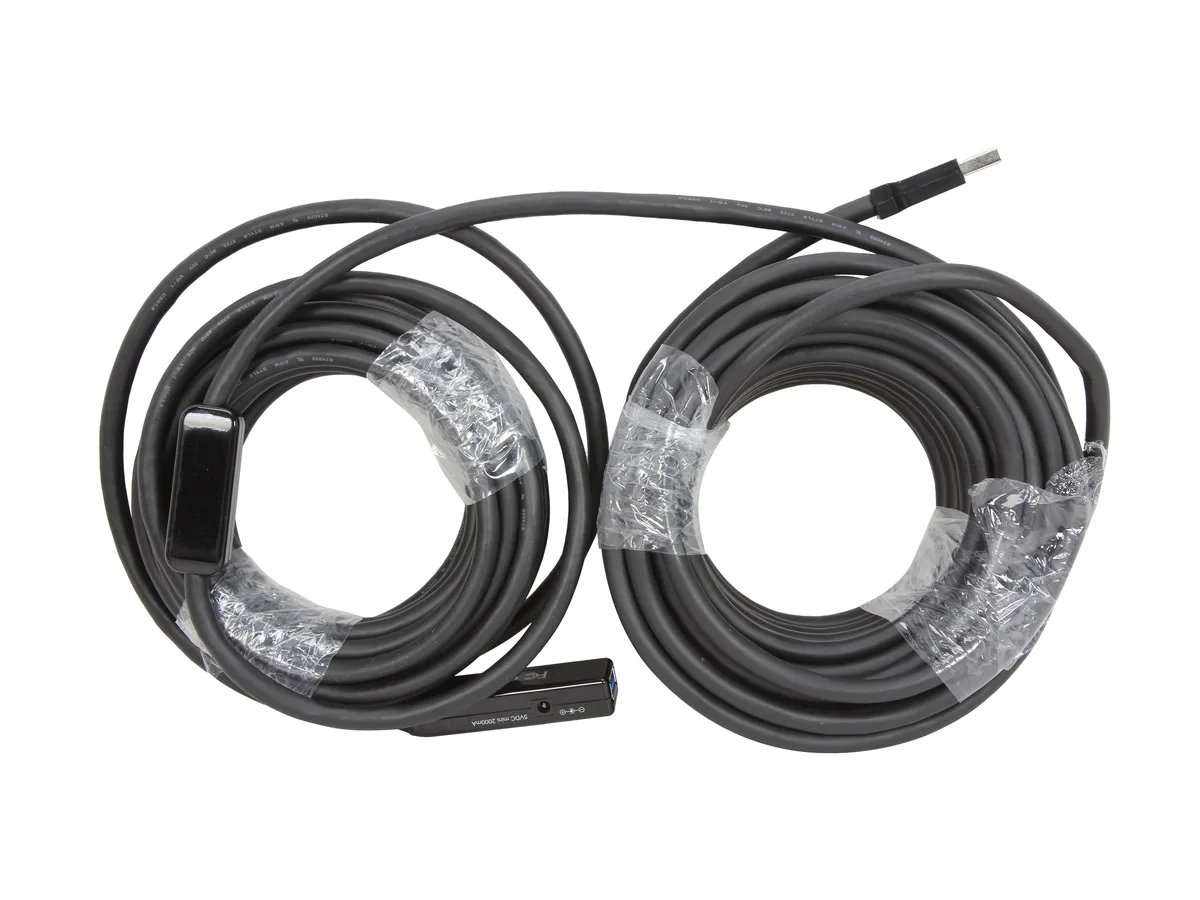

Black USB 3.0 active repeater cable 15m male to female with power adapter jack

SIIG, Inc

SIIG, Inc JU-CB0711-S1 USB 3.0 Active Repeater Cable 15m

SKU CH-1VCM-K1PJP MPN JU-CB0711-S1

Extends USB 3.0 connections to 15 metres with an active repeater and optional power adapter for daisy-chaining up to 30 metres

  • TypeUSB 3.0
  • Connector TypeUSB A to USB A
  • ColorBlack
  • Connector Number2
  • Connector DetailConnectors A: 9-pin, Type A, Male Connectors B: 9-pin, Type
  • Terminal GenderMale to Female
  • Extends USB data transmission up to 15 metres with active repeater technology
  • Daisy-chain two cables for a maximum 30 metre reach using the power adapter jack
  • Supports 5 Gbps data transfer rates for USB 3.0 devices
  • Operates reliably from 32 °F to 122 °F (0 °C to 50 °C)
  • FCC, CE and RoHS certified for safety and environmental compliance

USB 3.0 Active Repeater Cable 15m

This 15 metre USB 3.0 active repeater cable extends data transmission beyond the standard USB distance limit. It uses a male Type-A to female Type-A connector arrangement to bridge longer runs. The black cable weighs 2.25 lbs and operates between 0 and 50 °C. It is suited for users who need to place USB peripherals farther from the host computer.

Maximum daisy-chain reach 30m

The single specification that decides suitability is the maximum daisy-chain distance of 30 metres using two cables. One cable covers 15 metres; linking two with the optional external power adapter doubles that reach. If the installation requires a longer single span without intermediate power, this product will not meet the need.

Sustained operation 0 to 50 °C

Under continuous load the cable is rated for an operating temperature range of 0 to 50 °C and a storage range of -40 to 55 °C. The built-in power adapter jack supplies extra current for power-hungry devices during extended transfers. Plug-and-play operation requires no driver installation for steady performance.

Highlights

  • Extends USB data transmission up to 15 metres with active repeater technology
  • Daisy-chain two cables for a maximum 30 metre reach using the power adapter jack
  • Supports 5 Gbps data transfer rates for USB 3.0 devices
  • Operates reliably from 32 °F to 122 °F (0 °C to 50 °C)
  • FCC, CE and RoHS certified for safety and environmental compliance

Specifications

BrandSIIG
ModelJU-CB0711-S1
TypeUSB 3.0
Connector TypeUSB A to USB A
ColorBlack
Connector Number2
Connector DetailConnectors A: 9-pin, Type A, Male
Connectors B: 9-pin, Type A, Female
Terminal GenderMale to Female
SpecificationsOperating temperature: 32 to 122 F (0 to 50 C)
Storage temperature: -40 to 131 F (-40 to 55 C)
Product weight: 2.25 lbs (1 kg)
Max daisy chain distance: 30m (2 cables)
Certifications/Standards: FCC, CE, RoHS
Power adapter:
Input: 100-240VAC, 50/60Hz, 0.5A
Output: 5V, 2.0A
Dimensions: 2.5" (W) x 2.65" (H) x 1.10" (D)
Power cable length: 5 ft.
Requirements:
Desktop or notebook computer with an available USB port
Windows 7 (32-/64-bit) ) / Vista (32-/64-bit) / XP (32-/64-bit)
FeaturesSupports data transfer rates up to 5Gbs
Supports daisy chain connection up to 2 cables with optional external power adapter
Built in power adapter jack for supporting power hungry USB devices
Plug-n-play, no driver installation required
Fully shielded for error-free data transmissions
Built-in over current protection
Shipping weight1.54 kg
Package size328 × 200 × 94 mm

Questions about this item

How far does the 15 m length actually let me place a USB 3.0 device from the host?

The active repeater extends reliable USB 3.0 signalling to 15 m, and two cables can be daisy-chained for a total of 30 m.

What does the USB 3.0 Type-A interface limit in real use?

The connection runs at up to 5 Gbps and uses the standard Type-A 9-pin layout, so speed and connector fit are bound by the USB 3.0 specification.

What clearance and mounting points does the 15 m cable need?

The cable weighs 2.25 lbs and has male-to-female Type-A ends; it requires only the depth of a standard USB-A port and operates from 0 to 50 °C.
