SIIG, Inc
SIIG, Inc JU-CB0611-S1 USB 3.0 Active Repeater Cable 10m
A 10 metre USB 3.0 active repeater cable extends data transmission up to 40 metres with a built-in power adapter jack
- TypeUSB 3.0
- ColorBlack
- Connector Number2
- Connector DetailConnectors A: 9-pin, Type A, Male Connectors B: 9-pin, Type
- Terminal GenderMale to Female
- SpecificationsOperating temperature: 32 to 122 F (0 to 50 C) Storage tempe
- Extends USB reach to 10 metres with active repeater
- Daisy-chain up to four cables for 40 metre total distance
- Built-in power adapter jack supports power-hungry USB devices
- Plug-and-play operation requires no driver installation
- Certified FCC, CE and RoHS compliant

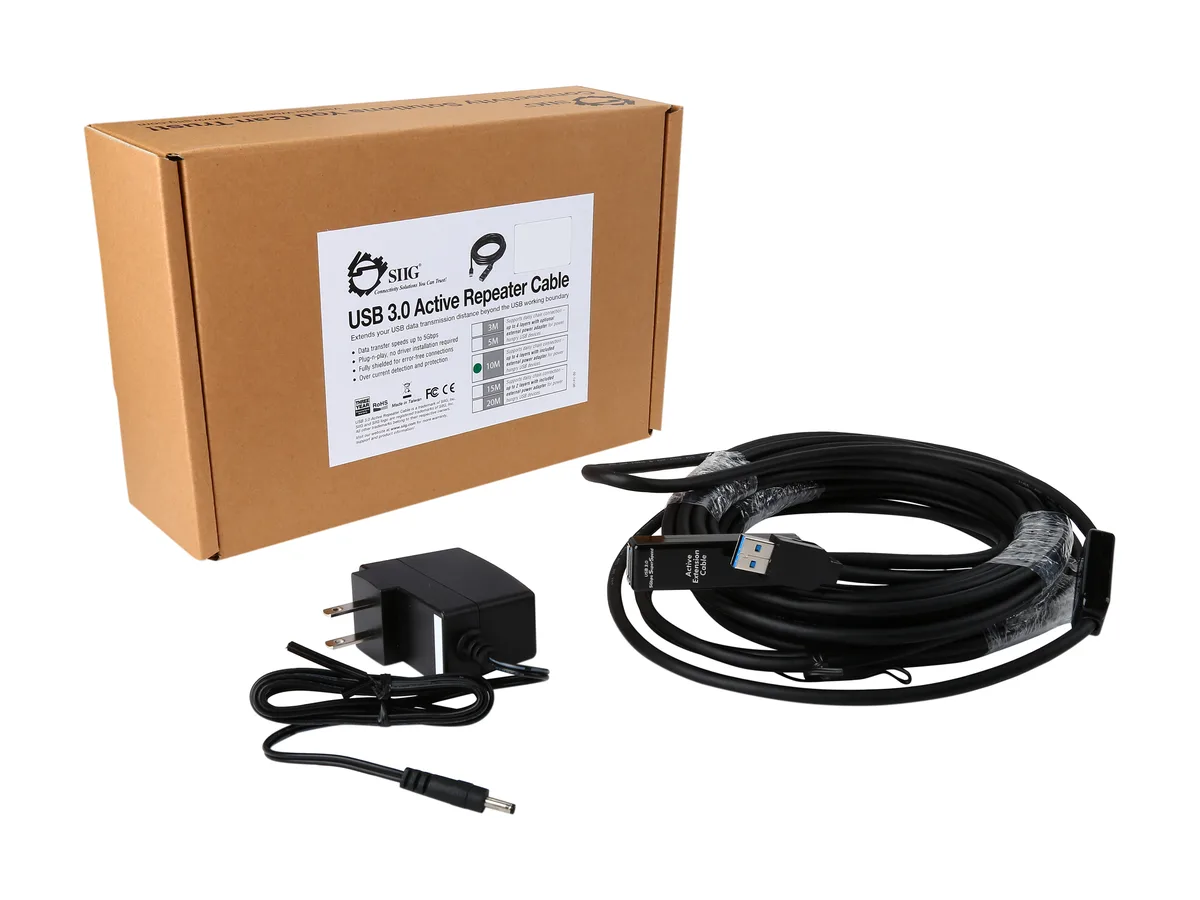

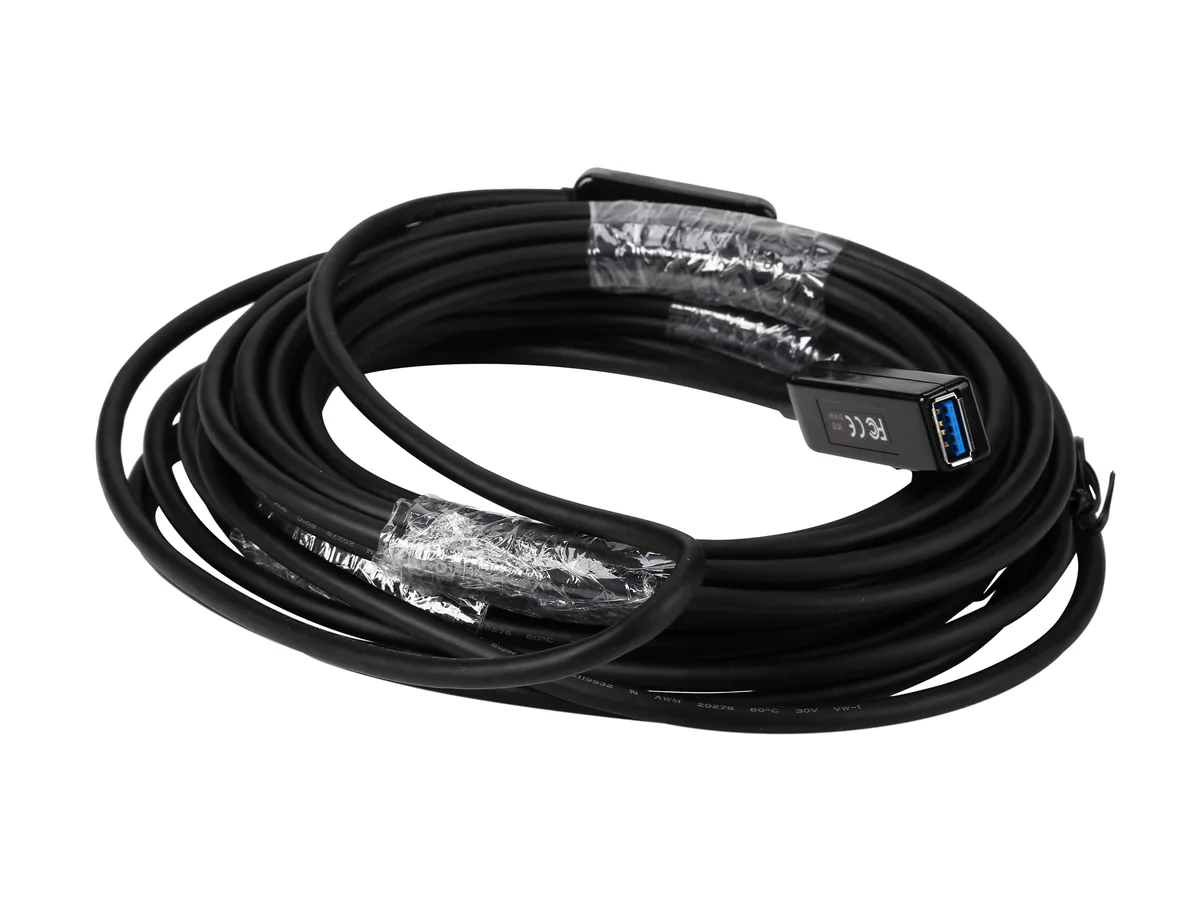

10-metre active USB 3.0 repeater cable
This ten-metre active repeater cable extends a USB 3.0 connection beyond the standard length limit. It uses a built-in signal booster to maintain data integrity over the full distance. A Type-A male plug connects to the host and a Type-A female port accepts the device. The cable supports daisy-chaining up to four units for a total reach of forty metres.
Suits fixed installations needing long USB runs.
The cable is designed for permanent setups such as kiosks, industrial equipment or wall-mounted displays where the host sits far from the peripheral. Its 1.71 lb weight and external power-adapter jack make it impractical for laptop bags or frequent replugging. Buyers who need a lightweight, bus-powered cable for travel should look elsewhere.
5 Gb/s maximum data rate
The link operates at up to 5 Gb/s, the full USB 3.0 signalling speed, provided the host and device also support that rate. If your application requires the higher throughput of newer USB standards, this cable will not deliver it.
Highlights
- Extends USB reach to 10 metres with active repeater
- Daisy-chain up to four cables for 40 metre total distance
- Built-in power adapter jack supports power-hungry USB devices
- Plug-and-play operation requires no driver installation
- Certified FCC, CE and RoHS compliant
Specifications
| Brand | SIIG |
|---|---|
| Model | JU-CB0611-S1 |
| Type | USB 3.0 |
| Color | Black |
| Connector Number | 2 |
| Connector Detail | Connectors A: 9-pin, Type A, Male Connectors B: 9-pin, Type A, Female |
| Terminal Gender | Male to Female |
| Specifications | Operating temperature: 32 to 122 F (0 to 50 C) Storage temperature: -40 to 131 F (-40 to 55 C) Product weight: 1.71 lbs (776 g) Max daisy chain distance: 40m (4 cables) Certifications/Standards: FCC, CE, RoHS Power adapter: Input: 100-240VAC, 50/60Hz, 0.5A Output: 5V, 2.0A Requirements: Desktop or notebook computer with an available USB port Windows 7 (32-/64-bit) ) / Vista (32-/64-bit) / XP (32-/64-bit) |
| Features | Supports data transfer rates up to 5Gb/s Supports daisy chain connection – up to 4 cables with optional external power adapter Built in power adapter jack for supporting power hungry USB devices Plug-n-play, no driver installation required Fully shielded for error-free data transmissions Built-in over current protection |
| Shipping weight | 0.72 kg |
| Package size | 267 × 175 × 76 mm |
Questions about this item
What do I need to plug into the power adapter jack on this 10 m cable?
Connect the included external power adapter to the built-in jack when the attached USB device draws more current than the host port can supply.
Will my USB 2.0 devices still work when connected through this 10 m active repeater?
Yes, the cable is backward compatible so USB 2.0 peripherals will operate at their normal High-Speed rate.
How can I verify the 10 m cable is delivering SuperSpeed performance after setup?
Check the device manager or system profiler on your computer; it should list the connected device at SuperSpeed rather than High-Speed.
