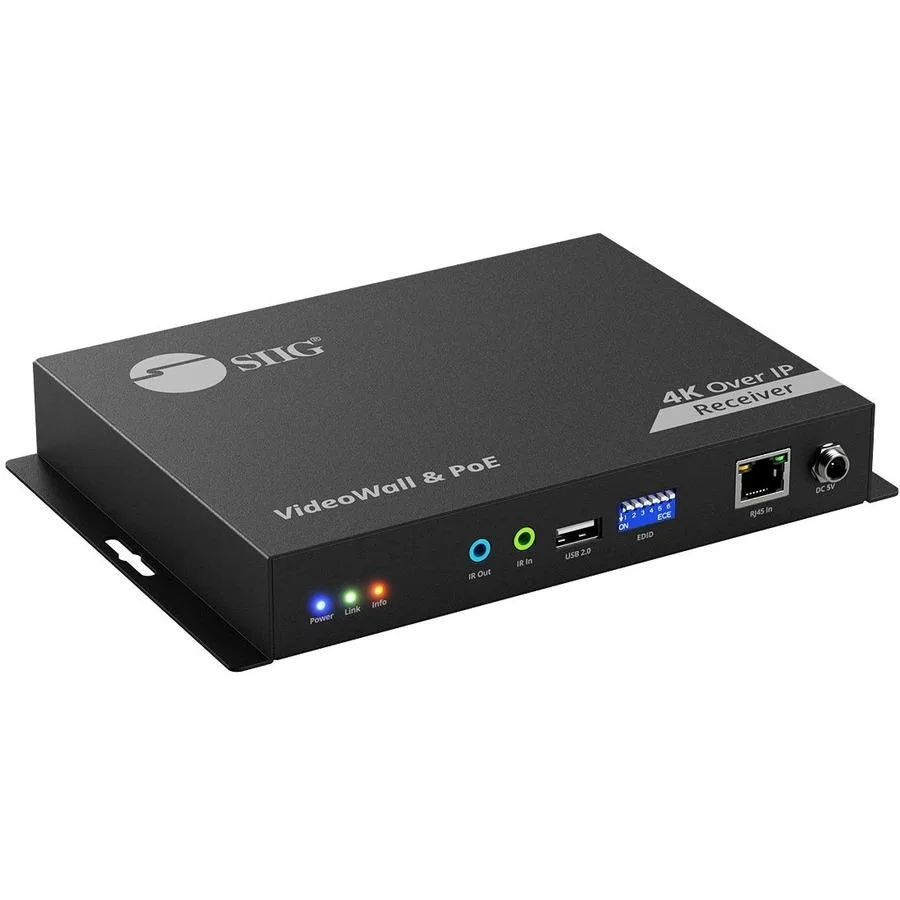

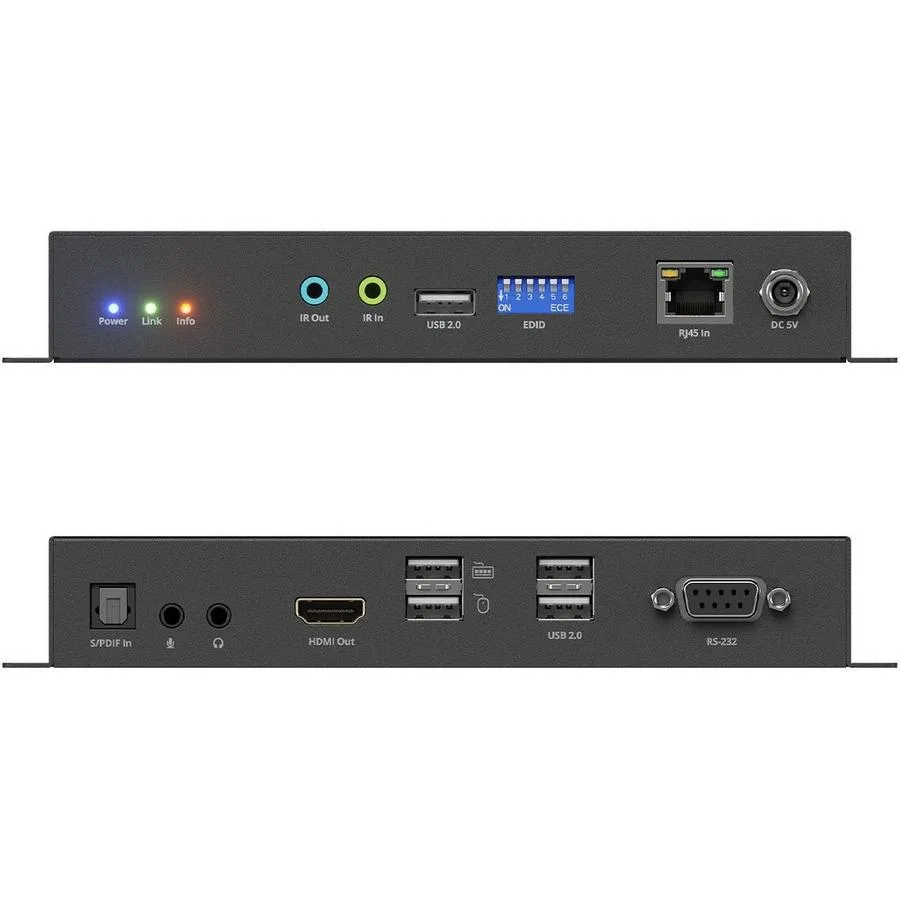

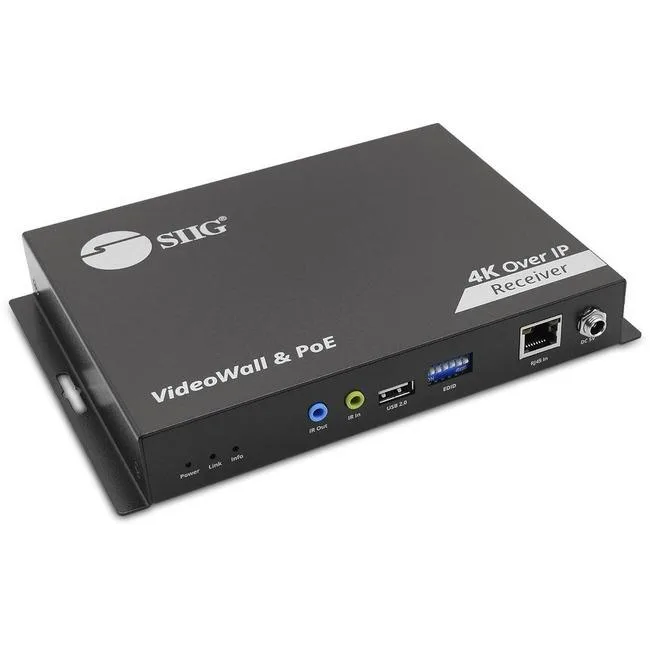

Small black metal network decoder unit with HDMI and RJ45 ports

SIIG, Inc

SIIG, Inc CEH27G11S1 HDMI over IP Matrix Decoder RX 394ft 4K 60Hz 18Gbps repeater

SKU CH-JWR5-8W2SZ MPN CEH27G11S1

Receives 4K 60 Hz HDMI up to 394 ft over Cat6/7 with PoE, HDCP 2.2, HDR 10 and 7.1-channel audio in a scalable IP matrix

  • Receives 4K 60 Hz HDR video up to 394 ft over one Cat6 cable
  • Powers both units through a single PoE connection, no extra adapter needed
  • Scales to 65,536 devices with up to 1,023 transmitters on a dedicated IP network
  • Supports 18 Gbps bandwidth, HDCP 2.2, 7.1-channel audio and HDR 10
  • Controls remote sources via bi-directional IR and RS-232, TAA compliant

Matrix Decoder for Distributed Video

The SIIG CEH27G11S1 is a decoder unit that receives HDMI signals over a dedicated IP network using Cat6 or Cat7 cabling. It is designed for installers and system integrators building scalable AV distribution systems in commercial or residential environments. The unit operates as a receiver in point-to-point, point-to-multipoint, video wall or KVM configurations.

Maximum 394ft Transmission Over Cat6/7

The single specification that determines suitability is the 394ft (120m) extension distance for 4K 60Hz 18Gbps signals over a single Cat6/7 cable. This range covers most in-building runs without intermediate repeaters. Exceeding this distance will require additional network infrastructure not supported by this decoder alone.

PoE-Powered Stability in Large Arrays

Under sustained load the decoder draws power through the Ethernet link via PoE, eliminating the need for a local power adapter at the display side. The architecture supports up to 65536 total units with a limit of 1023 transmitters, allowing large matrices to operate continuously without external power supplies at every receiver.

Highlights

  • Receives 4K 60 Hz HDR video up to 394 ft over one Cat6 cable
  • Powers both units through a single PoE connection, no extra adapter needed
  • Scales to 65,536 devices with up to 1,023 transmitters on a dedicated IP network
  • Supports 18 Gbps bandwidth, HDCP 2.2, 7.1-channel audio and HDR 10
  • Controls remote sources via bi-directional IR and RS-232, TAA compliant

Specifications

No published specifications for this item yet.

Questions about this item

What does the 394ft distance mean for a real installation?

It means the decoder can receive a 4K 60Hz signal over a single Cat6 or Cat7 cable up to 120 metres from the encoder without signal loss.

What does the 18Gbps HDMI interface cap in practice?

It caps the video path at 4K 60Hz 4:4:4 with HDR10 and HDCP 2.2, supporting up to 7.1 channel audio and bi-directional IR plus RS-232 control.

What does the decoder need to mount and power up?

It connects by a single RJ45 port for Cat6/7 cabling and draws power over PoE from the encoder side, so no separate power adapter is required.
