SIIG, Inc
SIIG, Inc CE-KV0E11-S1 2x1 HDMI 4K HDR KVM Switch
A 2-port HDMI KVM switch shares one 4K 3840×2160 display, USB 3.2 Gen 1 peripherals and 7.1-channel audio between two computers with push-button, hotkey or IR remote control
- TypeHDMI, USB
- PC Connectors2x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen1 Type-B, Femal
- Console Connectors1x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen 1 Type-A, for
- Computer Connections2 Port HDMI
- Monitor Connections1 Port
- Video Resolution3840 x 2160
- Switch between two HDMI computers on one 4K display
- Share USB 3.2 Gen 1 peripherals across both systems
- Control via front buttons, keyboard hotkeys or IR remote
- Hear 7.1 surround over HDMI or stereo through 3.5 mm jacks
- Compact 1.02" x 7.00" x 2.95" design fits any desk
Two-computer HDMI KVM for single-display
This KVM switch lets two computers share one HDMI monitor, a keyboard, a mouse and two additional USB 3.2 Gen 1 peripherals. It supports video up to 3840 x 2160 and passes 7.1-channel audio through the HDMI link. The unit is aimed at desk setups that need to toggle between a pair of PCs without unplugging cables.
Bundled cables and remote simplify first
The package includes two USB 3.2 Gen 1 Type-A to B cables, an IR extender cable, a handheld IR remote and a 5V/3A DC power adapter. These items let you connect both computers and operate the switch from a distance without sourcing extra leads. A printed reference guide is also supplied for initial configuration.
Compact metal chassis with front-panel controls

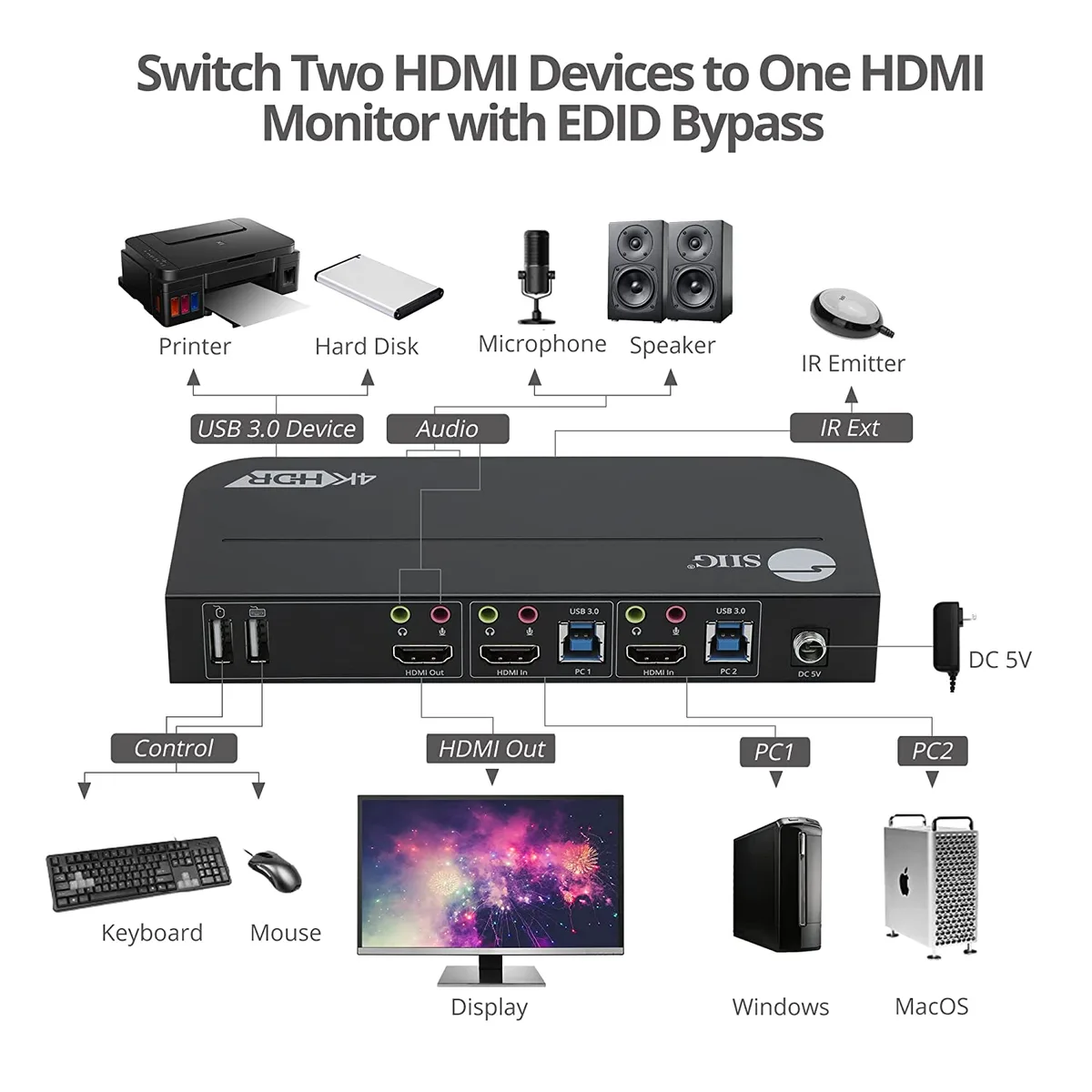

The enclosure measures 1.02" x 7.00" x 2.95" and weighs .81 lb, fitting easily on a crowded desk. Front-mounted push buttons give immediate PC selection, while keyboard hotkeys and the IR remote provide alternative switching methods. Rear-facing HDMI, USB 3.2 Gen 1 Type-B, 3.5 mm audio and microphone jacks keep cable routing tidy.
Highlights
- Switch between two HDMI computers on one 4K display
- Share USB 3.2 Gen 1 peripherals across both systems
- Control via front buttons, keyboard hotkeys or IR remote
- Hear 7.1 surround over HDMI or stereo through 3.5 mm jacks
- Compact 1.02" x 7.00" x 2.95" design fits any desk
Specifications
| Brand | SIIG |
|---|---|
| Model | CE-KV0E11-S1 |
| Type | HDMI, USB |
| PC Connectors | 2x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen1 Type-B, Female 4x 3.5mm phone jacks, for microphone, Female 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse 1x 3.5mm Infrared jack, IR extender 1x IR sensor 2x Switch buttons, for PC1/C2 switching 1x Power button, on/off 1x DC power jack, 5V/3A |
| Console Connectors | 1x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices 4x 3.5mm phone jacks, for stereo audio, Female |
| Computer Connections | 2 Port HDMI |
| Monitor Connections | 1 Port |
| Video Resolution | 3840 x 2160 |
| PC Selection | Push Buttons/USB keyboard hotkeys/IR Remote Control |
| Audio Features | 7.1 channel surround sound from HDMI port PCM 2.1 channel stereo digital audio for 3.5mm audio jack |
| Power Features | AC 100-240V / 50-60Hz |
| Dimensions | 1.02" x 7.00" x 2.95" |
| Weight | 0.81 lb. |
| Package Contents | 1x 2x1 HDMI 4K HDR KVM USB 3.0 Switch with Remote Control 2x USB 3.2 Gen 1 Type-A to B cables 1x IR extender cable 1x IR remote control 1x DC power adapter, 5V/3A 1x User reference guide |
| Shipping weight | 0.83 kg |
| Package size | 232 × 180 × 65 mm |
Questions about this item
Will the 5V/3A DC power adapter need replacing after extended use?
The switch ships with a 5V/3A DC power adapter rated for AC 100-240V 50-60Hz; no internal battery or consumable power module is listed, so the external adapter is the only power item that could require replacement.
At 3840 x 2160 resolution, what bandwidth ceiling appears first during continuous operation?
The unit supports 3840 x 2160 video through its HDMI 19-pin ports and USB 3.2 Gen 1 Type-B links; the HDMI and USB 3.2 Gen 1 interfaces set the practical throughput limit for sustained 4K switching.
How much heat or fan noise does the 0.81 lb chassis produce when left on all day?
The specifications list no internal fan or thermal rating; the compact 1.02 x 7.00 x 2.95 inch enclosure relies on passive cooling, so audible noise is limited to button clicks or relay switching.
