SIIG, Inc CE-KV0C11-S1 2x1 DisplayPort 4K KVM Switch
A 2-port DisplayPort KVM switch shares one 4K monitor, USB 3.2 Gen 1 peripherals and 7.1-channel audio between two computers with push-button, hotkey or IR remote control
- TypeDisplayPort, USB
- PC Connectors2x 20-pin, DisplayPort, Female 2x 9-pin, USB 3.2 Gen 1 Type-
- Console Connectors1x 20-pin, DisplayPort, Female 1x 19-pin, HDMI, Female 2x 9-
- Computer Connections2 Port DisplayPort
- Monitor Connections1 Port
- Video ResolutionDisplayPort 1.4: HDR, resolution: up to 8K (7680x4320)@30Hz,
- Control two computers from one DisplayPort console
- Switch via front buttons, keyboard hotkeys or IR remote
- Supports 8K at 30 Hz or 4K at 60 Hz over DisplayPort 1.4
- HDMI console output with HDCP 2.2 and HDR up to 4K 60 Hz
- USB 3.2 Gen 1 hub adds two high-speed peripheral ports
2-Port DisplayPort KVM for Dual-PC Desk
This switch lets one monitor, keyboard, mouse, and audio set control two computers that each output DisplayPort video. It is aimed at professionals who run a workstation and a personal rig side by side, or developers who need a test machine and a main machine on a single desk. Buyers who need to manage more than two computers or who require HDMI or USB-C video inputs on the PC side will not be served by this unit.
Sustained 4K60 and 8K30 switching without signal
The switch passes DisplayPort 1.4 signals at up to 8K resolution at 30Hz and 32.4Gbps bandwidth, and DisplayPort 1.2 at 4K 60Hz and 21.6Gbps, maintaining a stable link during long sessions. HDMI output supports 4K 60Hz at 18Gbps with HDCP 2.2 and HDR. USB 3.2 Gen 1 ports sustain 5Gbps peripheral throughput while audio carries 7.1-channel surround over DisplayPort or HDMI and 2.1-channel PCM over the 3.5mm jacks. Hotkey, push-button, and IR remote selection all operate instantly without re-negotiating the video link.
Compact metal chassis

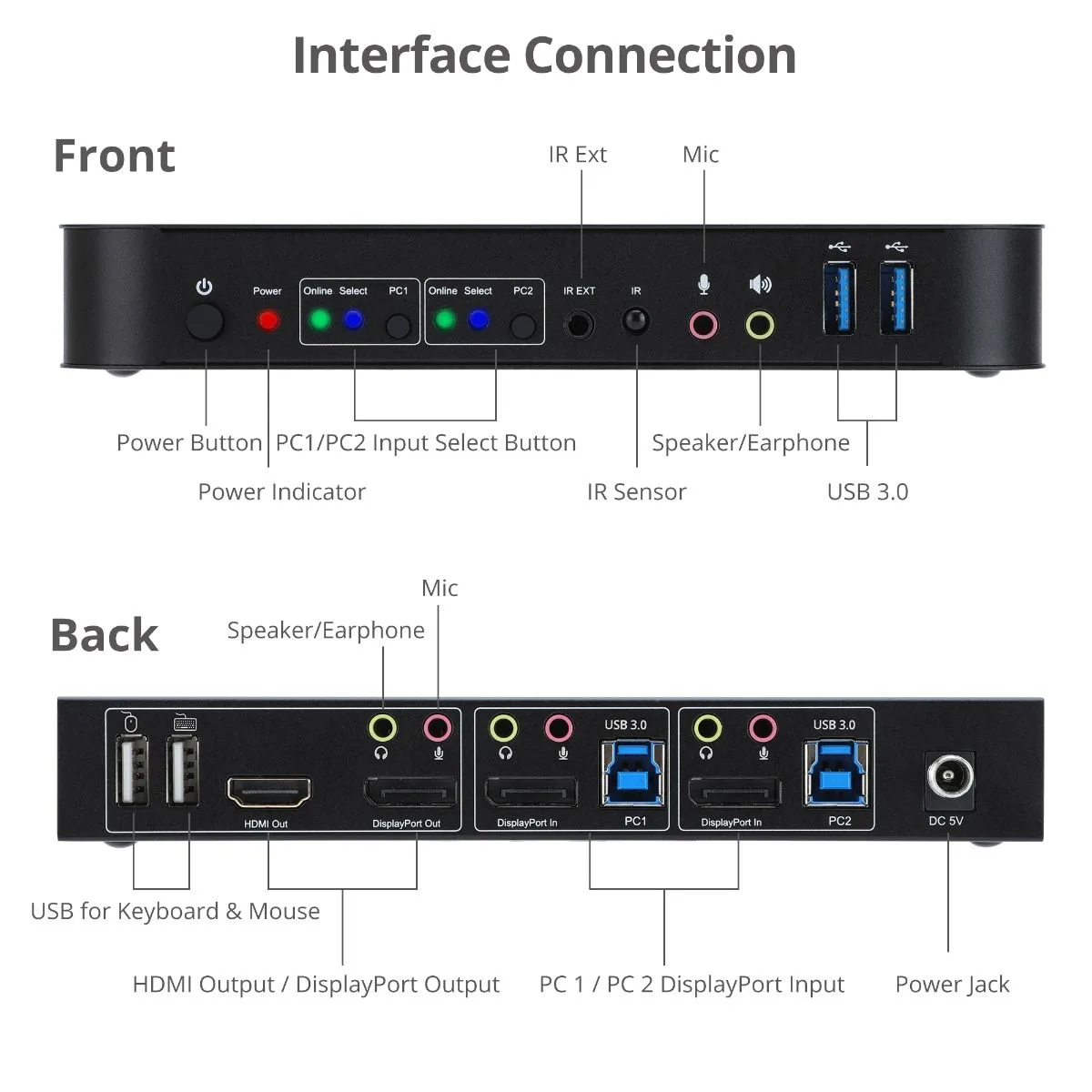

The enclosure measures 1.02 by 7.00 by 2.95 inches and weighs 0.80 lb, fitting neatly between monitors. Rear-facing DisplayPort, USB 3.2 Gen 1 Type-B, USB 2.0 Type-A, and 3.5mm microphone jacks keep cables directed away from the user, while the front panel offers two USB 3.2 Gen 1 Type-A ports for flash drives, an IR sensor, and an IR extender jack for hidden placement. An included 5V/3A DC adapter powers the unit, and the package supplies two USB 3.2 Gen 1 Type-A to B cables, the IR remote, and the extender cable.
Highlights
- Control two computers from one DisplayPort console
- Switch via front buttons, keyboard hotkeys or IR remote
- Supports 8K at 30 Hz or 4K at 60 Hz over DisplayPort 1.4
- HDMI console output with HDCP 2.2 and HDR up to 4K 60 Hz
- USB 3.2 Gen 1 hub adds two high-speed peripheral ports
Specifications
| Brand | SIIG |
|---|---|
| Model | CE-KV0C11-S1 |
| Type | DisplayPort, USB |
| PC Connectors | 2x 20-pin, DisplayPort, Female 2x 9-pin, USB 3.2 Gen 1 Type-B, Female 4x 3.5mm phone jacks, for microphone, Female 2x 4-pin, USB 2.0 Type-A, for Keyboard & Mouse 1x 3.5mm Infrared jack, IR 1x IR sensor 2x Switch buttons, for PC1/PC2 switching 1x Power button, on/off 1x DC power jack, 5V/3A |
| Console Connectors | 1x 20-pin, DisplayPort, Female 1x 19-pin, HDMI, Female 2x 9-pin, USB 3.2 Gen 1 Type-A, for USB devices 4x 3.5mm phone jacks, for stereo audio, Female |
| Computer Connections | 2 Port DisplayPort |
| Monitor Connections | 1 Port |
| Video Resolution | DisplayPort 1.4: HDR, resolution: up to 8K (7680x4320)@30Hz, video bandwidth: 32.4Gbps DisplayPort 1.2: Resolution: up to 4K (3840x2160)@60Hz, video bandwidth: 21.6Gbps HDMI: HDCP 2.2, HDR, resolution: up to 4K (3840x2160)@60Hz, video bandwidth: 18Gbps |
| PC Selection | Push Buttons/USB keyboard hotkeys/IR Remote Control |
| Audio Features | 7.1 channel surround sound from DisplayPort/HDMI port PCM 2.1 channel stereo digital audio for 3.5mm audio jack |
| Power Features | AC 100-240V / 50-60Hz |
| Dimensions | 1.02" x 7.00" x 2.95" |
| Weight | 0.80 lb. |

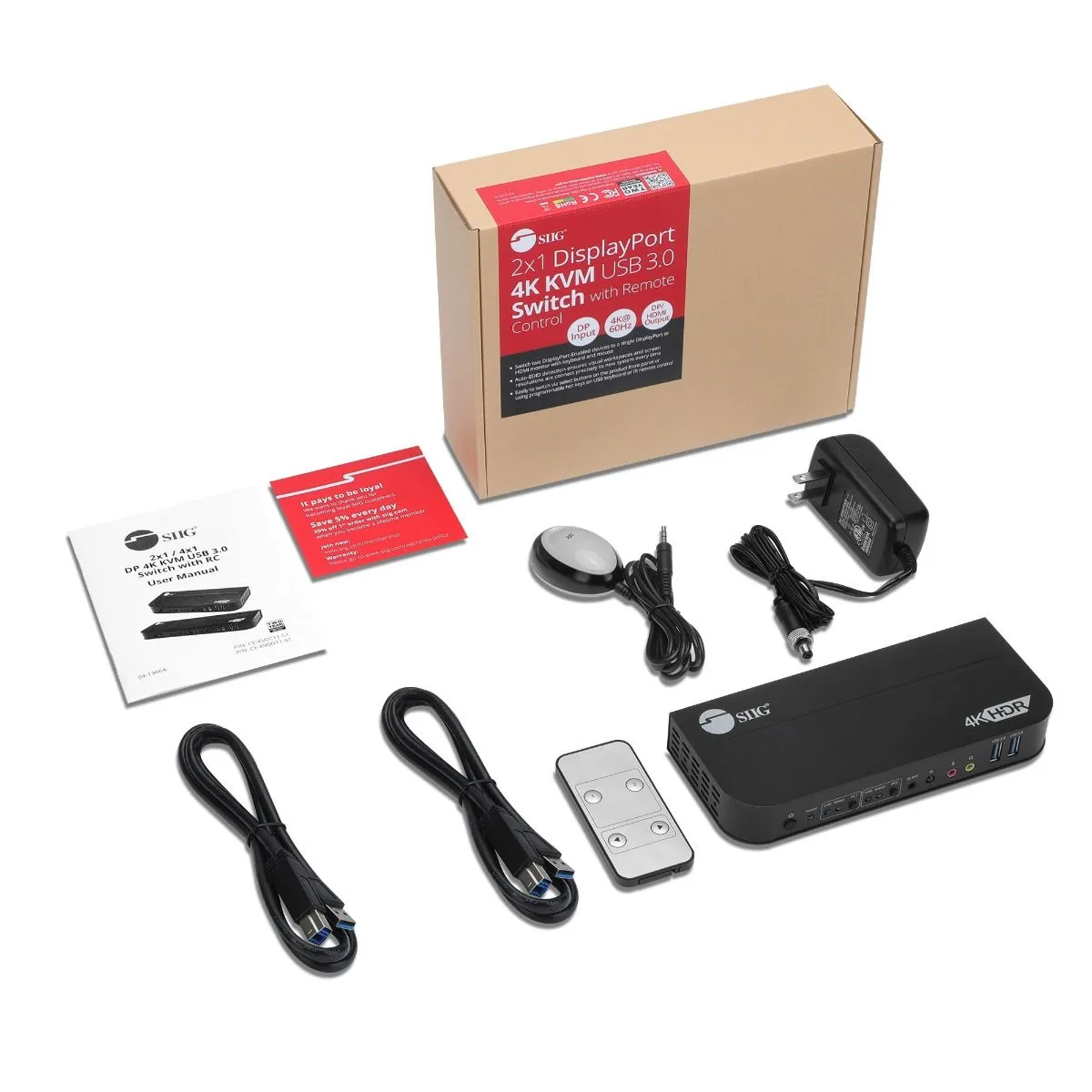

| Package Contents | 1x 2x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control 2x USB 3.2 Gen 1 Type-A to B cables 1x IR extender cable 1x IR remote control 1x DC power adapter, 5V/3A 1x User reference guide |
| Shipping weight | 0.82 kg |
| Package size | 232 × 180 × 65 mm |
Questions about this item
Does the 5V/3A power adapter draw much electricity or generate noticeable heat when the KVM runs 24/7?
The unit ships with a 5V/3A DC adapter and has no fan, so power draw and heat output are minimal during continuous operation.
My keyboard and mouse use USB 2.0 Type-A plugs — will they connect directly to the console ports?
The console side provides two USB 3.2 Gen 1 Type-A ports; USB 2.0 Type-A devices plug in and work normally.
I still use a monitor that only accepts HDMI — can I run it at 4K 60 Hz through this switch?
Yes, the HDMI console output supports HDCP 2.2 and HDR at up to 4K (3840x2160)@60Hz with 18Gbps bandwidth.
