Black metal transmitter with eight RJ45 ports and HDMI loopout, plus compact receiver unit

SIIG, Inc

SIIG, Inc CE-H27B11-S1 1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232

SKU CH-C2AA-ZZE25 MPN CE-H27B11-S1

Distributes one HDMI source to eight Cat6 outputs reaching 70 metres at 4K 60 Hz with loopout, IR, ARC and RS-232 control

  • Splitter TypeHDMI
  • ColorBlack
  • SpecificationCompliant with HDCP 2.2 Transmission Distance: 4K@60Hz: Up t
  • Resolution SupportUp to 3840x2160 @60Hz, 2160p / 1080p / 1080i / 720p / 480p
  • AudioHDMI: PCM2/5.1/7.1, Dolby & DTS 5.1 Toslink: PCM2, Dolby & D
  • HDMITransmitting unit (TX): 1x 19-pin HDMI, Type A, Female, Inpu
  • Extends 4K@60Hz up to 70 metres over Cat6
  • Splits one source to eight displays simultaneously
  • Local HDMI loopout keeps a monitor at the rack
  • IR blaster and receiver enable remote control from each zone
  • RS-232 and EDID DIP switch simplify system integration

1x8 HDMI Splitter Over Cat6

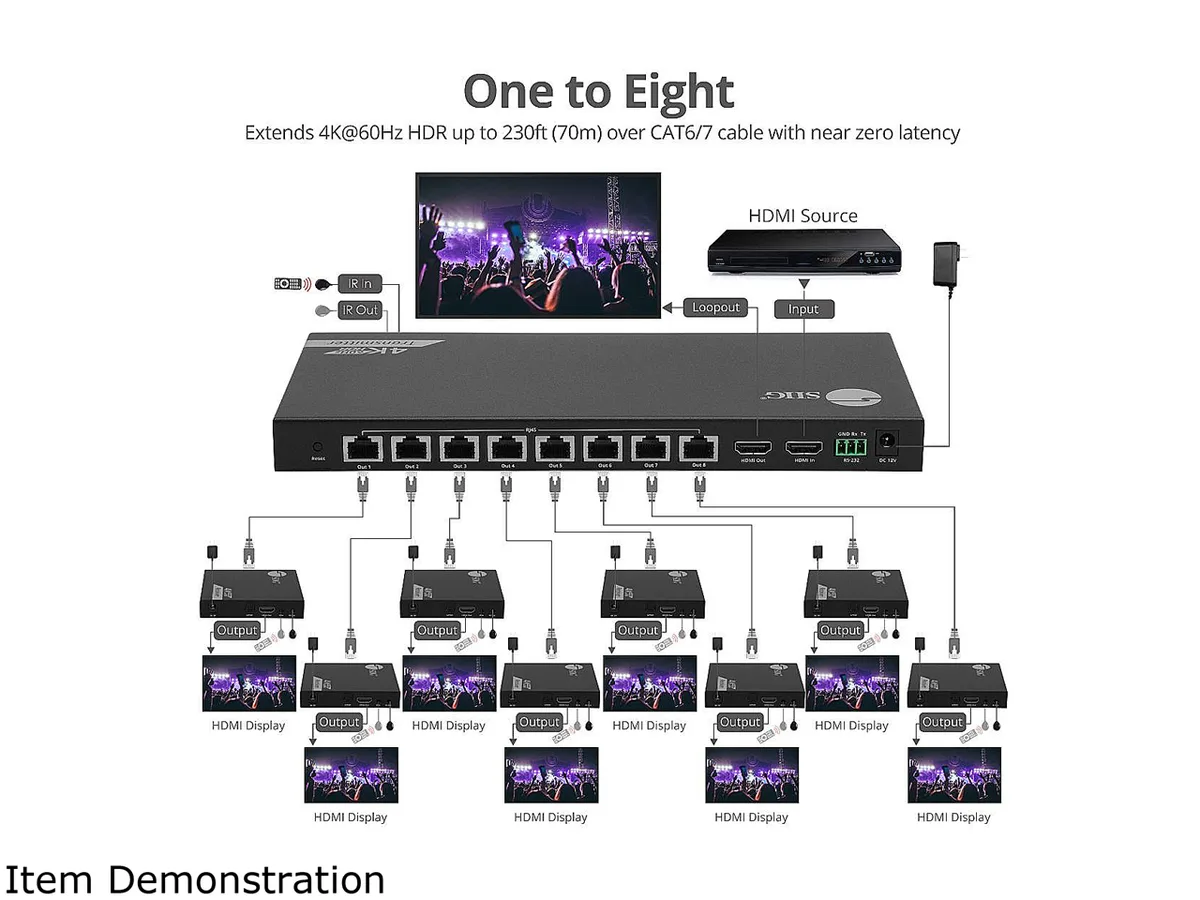

This HDMI splitter extends a single 4K source to eight displays using Cat6 cabling. It includes a local HDMI loopout for a nearby monitor. HDCP 2.2 compliance protects premium content. The unit suits installers needing long-distance distribution in commercial or residential settings.

Sustained 4K transmission stability

Cat6 or Cat7 cable carries 4K at 60 Hz up to 70 metres without signal degradation. Cat5 cable supports the same resolution up to 40 metres. The transmitter powers eight RJ45 outputs simultaneously while maintaining full-frequency IR and RS-232 control paths. EDID management via DIP switch keeps handshakes stable across all receivers.

70-metre 4K reach over Cat6

Maximum 4K 60 Hz distance is 70 metres on Cat6/7 and 40 metres on Cat5. This range decides whether the extender fits the installation. Shorter runs work on cheaper cable; longer runs require Cat6/7. No other specification overrides this distance limit.

Highlights

  • Extends 4K@60Hz up to 70 metres over Cat6
  • Splits one source to eight displays simultaneously
  • Local HDMI loopout keeps a monitor at the rack
  • IR blaster and receiver enable remote control from each zone
  • RS-232 and EDID DIP switch simplify system integration

Specifications

BrandSIIG
ModelCE-H27B11-S1
Splitter TypeHDMI
ColorBlack
SpecificationCompliant with HDCP 2.2
Transmission Distance:
4K@60Hz: Up to 70m via Cat6/7 cable
4K@60Hz: Up to 40m via Cat5 cable
Full frequency IR signal from 20KHz to 60KHz
RS-232: 3-pin: GND-RxD-TxD, follow RS-232 Levels, Support up to 115200 baud rates
Network cable: UTP/STP CAT5e/6/6a/7
Resolution SupportUp to 3840x2160 @60Hz, 2160p / 1080p / 1080i / 720p / 480p
AudioHDMI: PCM2/5.1/7.1, Dolby & DTS 5.1
Toslink: PCM2, Dolby & DTS 5.1

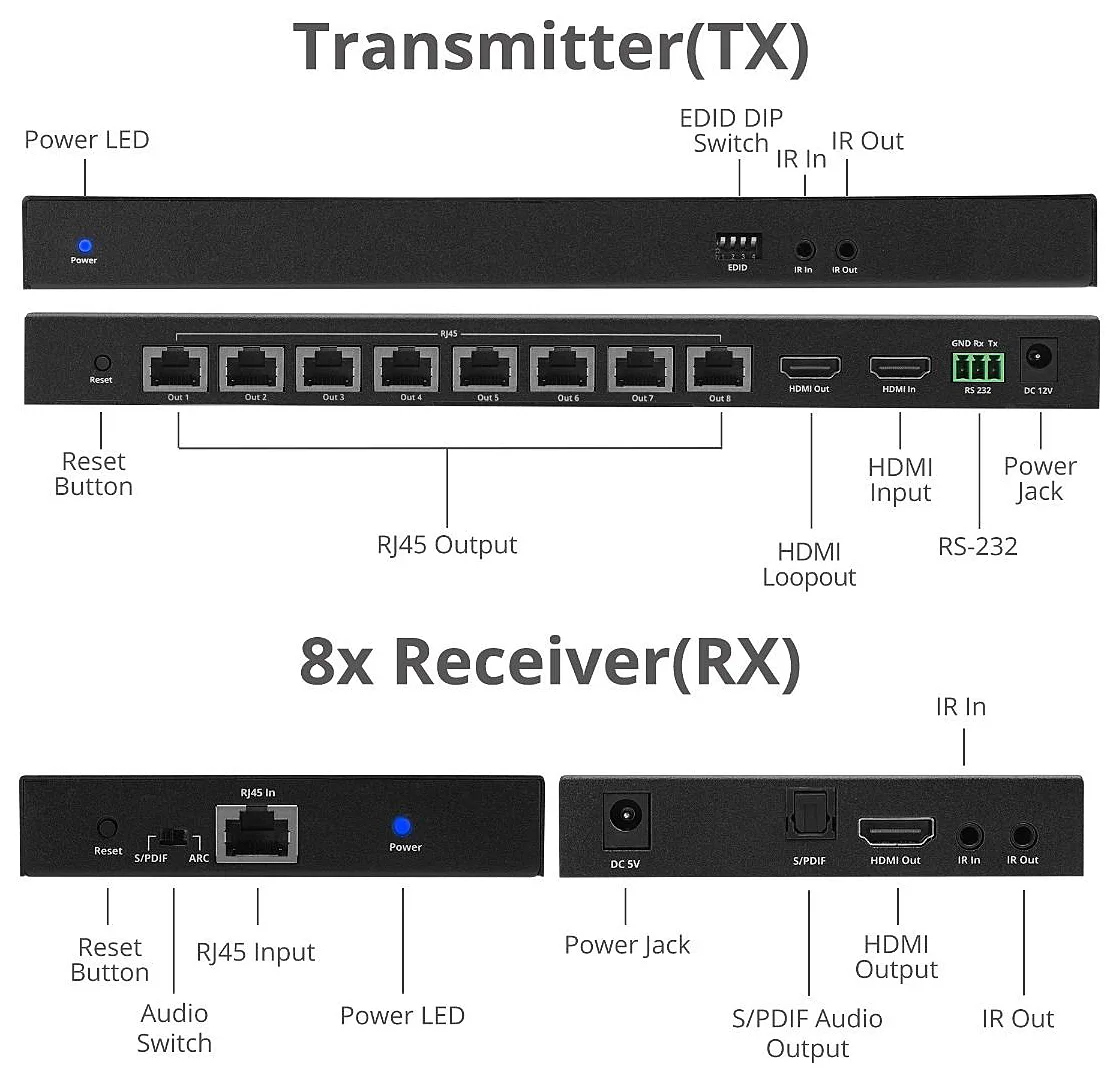

HDMITransmitting unit (TX):
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Female, Loopout
Receiving unit (RX):
1x 19-pin HDMI, Type A, Female, Output
Network InterfaceTransmitting unit (TX):
8x 8-pin, RJ45, video output
Receiving unit (RX):
1x 8-pin, RJ45, video input
Other ConnectorTransmitting unit (TX):
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x 3-pin Terminal Block, RS-232 for control
1x 4-pin DIP Switch for EDID management
1x Power jack
1x Reset button
Receiving unit (RX):
1x 3.5mm jack, IR Blaster
1x 3.5mm jack, IR Receiver
1x S/PDIF Toslink, Audio & ARC
1x Slide switch, (S/PDIF & ARC)
1x Power jack
1x Reset button
Power SupplyInput: 100-240V / 50-60Hz
TX: DC 12V/3A
RX: DC 5V/2A
Feature4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over economical Cat6/7 cabling to up to 8 displays
Advanced Transmission Technology - Unique ultra-high-definition video digital transmission and connection extender technology, can extend and transmit 4K@60Hz YUV 4:4:4 video and audio, with zero latency, HDR
HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out for additional local display connections and extender 8 receivers for HDTV or Projector via Cat6/7 cable
EDID Management - Support EDID management capability to controls the resolution outpu

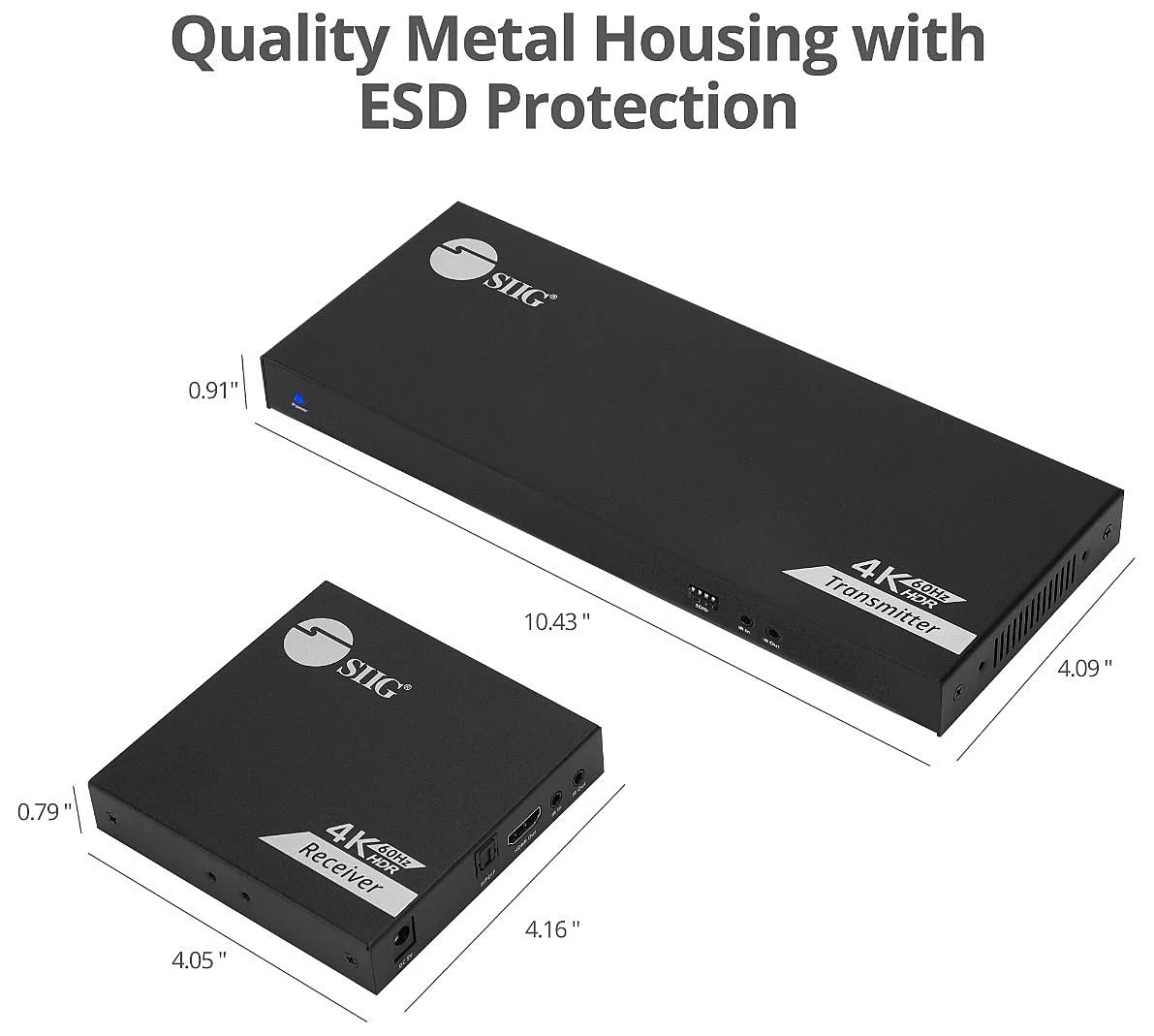

DimensionsTransmitting unit (TX): 0.91" x 10.39" x 4.72"
Receiving unit (RX): 0.79" x 4.15" x 4.04"
WeightTransmitting unit (TX): 1.61 lbs.
Receiving unit (RX): 0.54 lb.

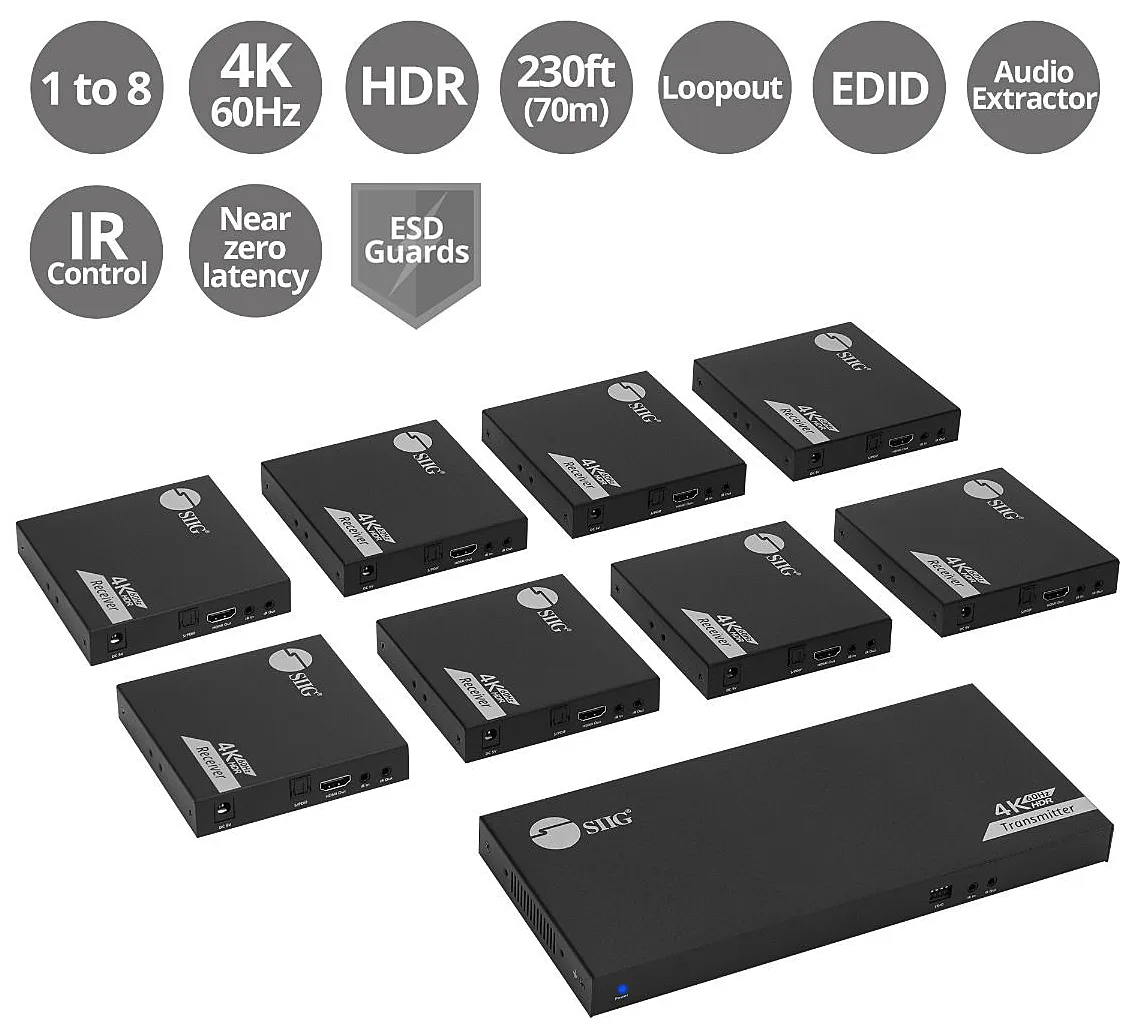

Package Content1x8 HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232
Power adapter (x9)
IR Blaster extension cable (x1)
IR Receiver extension cable (x8)
Terminal block
Mounting kit
User Manual
Shipping weight5.10 kg
Package size465 × 425 × 80 mm

Questions about this item

How much heat does the transmitter generate when running all day with eight Cat6 cables at 70m?

The TX unit is passively cooled and rated for continuous operation; its 12V 3A power adapter supplies the maximum needed power.

Which cables and displays must I already own to use the 1x8 splitter?

You need one HDMI source, eight Cat5e/6/6a/7 cables, and up to eight HDMI displays; IR and RS-232 accessories are included.

Will the loopout port on the transmitter work with my older 1080p projector while the eight receivers show 4K?

The loopout mirrors the input signal; EDID is managed by the 4-pin DIP switch on the TX so you can force a compatible resolution for all outputs.
