SIIG, Inc
SIIG, Inc CE-H25611-S1 4-Port 3840x2160 KVM Switch
A four-port KVM switch with 3840 x 2160 video resolution, USB support, 11 USB ports, 5 HDMI ports and included 1.8 m cables
- TypeKVM Switchbox
- Computer Connections4 Ports
- Video Resolution3840 x 2160
- USB Featureswith USB support
- FeaturesNumber of Local Users Supported:1 Package Contents: KVM Swit
- DimensionsHeight:1.5" x Width:4.4" x Depth:11.1"
- Control four computers from one console using 4 USB and HDMI ports
- View content in true 4K clarity at 3840 x 2160 resolution
- Simplify setup with included 1.8 m HDMI and USB cables
- Connect multiple peripherals via 11 USB ports on the switch
- Compact 1.5 x 4.4 x 11.1 inch design fits tight workspaces
Four-Port 4K KVM Switch
This SIIG KVM switch lets one user control four computers from a single keyboard, mouse and display. It supports video up to 3840 x 2160 resolution and includes USB peripheral sharing. The package provides all cables needed to connect four systems right away. It is suited for multi-system workstations, server rooms or test benches.
Compact Metal Chassis With Five HDMI Ports

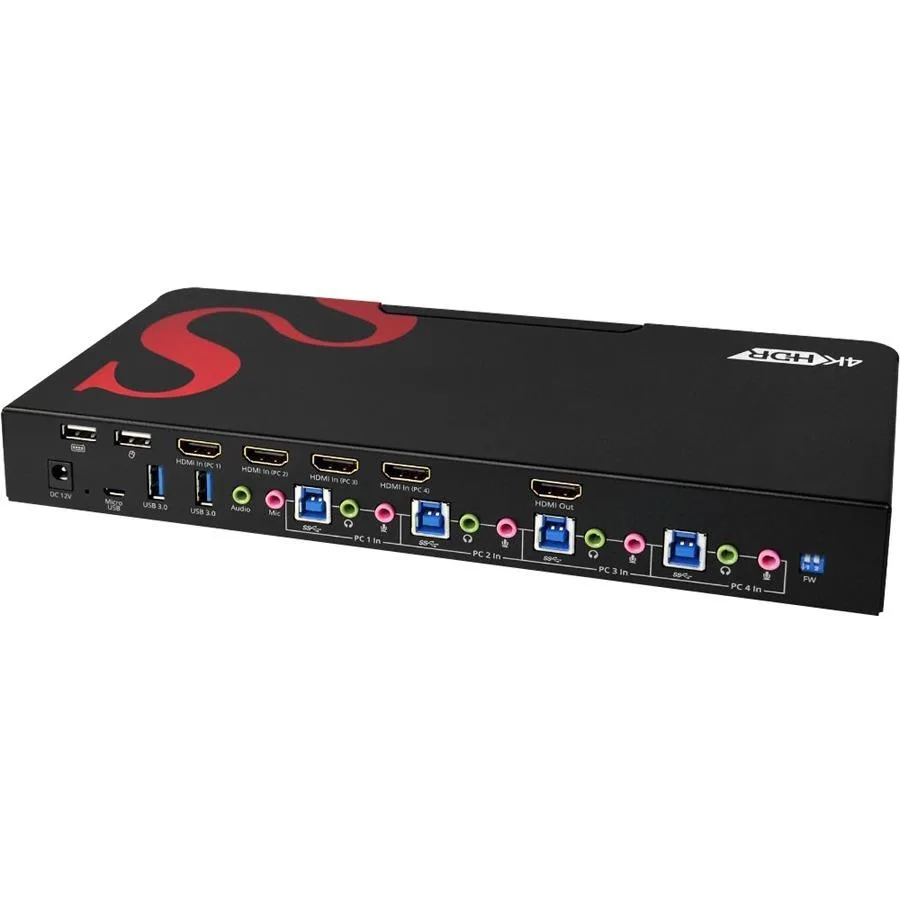

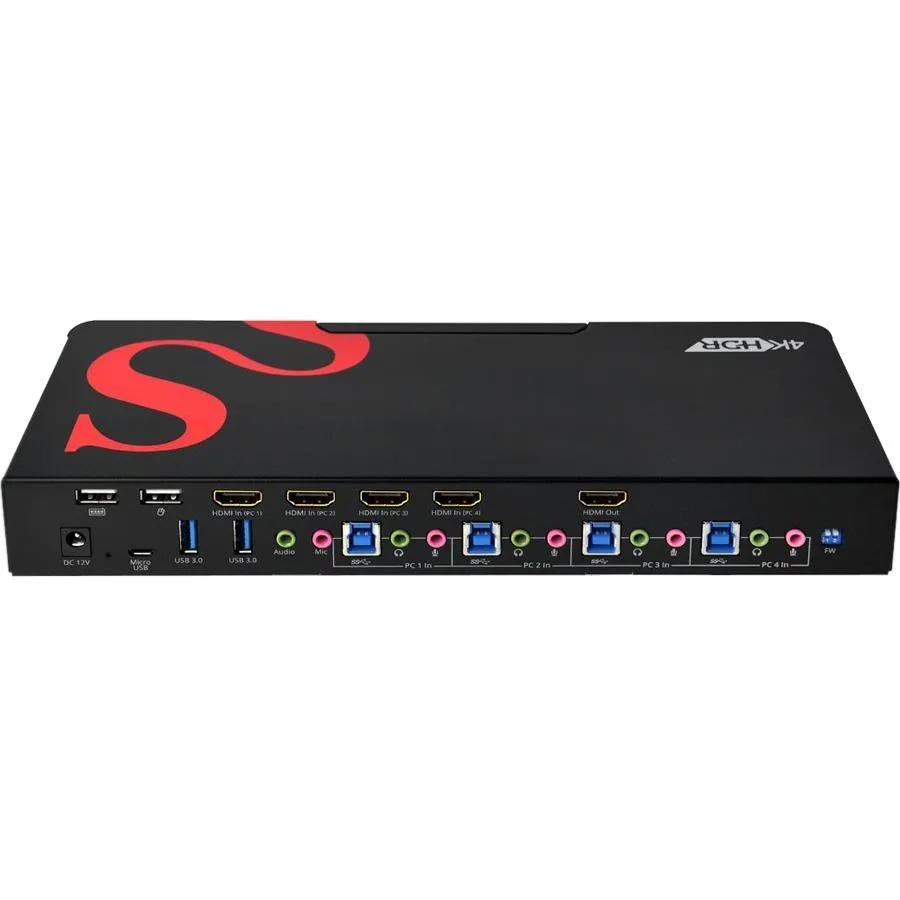

The unit measures 1.5 by 4.4 by 11.1 inches and weighs 2.09 lb, fitting easily on a desk or in a rack tray. Five HDMI ports handle four computer inputs and one console output at 18 Gbps bandwidth. Eleven USB ports distribute keyboard, mouse, microphone, stereo audio and USB 3.0 data across the connected PCs. An external power adapter ensures stable operation without drawing power from the host systems.
Replaces Separate Video And USB Switches
This device consolidates a 4K video switch, USB 3.0 hub, audio selector and microphone switch into one box. It eliminates the cable clutter and desk space consumed by individual switchers for each signal type. The upgrade is worthwhile when managing four computers simultaneously and true 3840 x 2160 output is required. Buyers needing more than four computer ports or multi-user access should consider other solutions.
Highlights
- Control four computers from one console using 4 USB and HDMI ports
- View content in true 4K clarity at 3840 x 2160 resolution

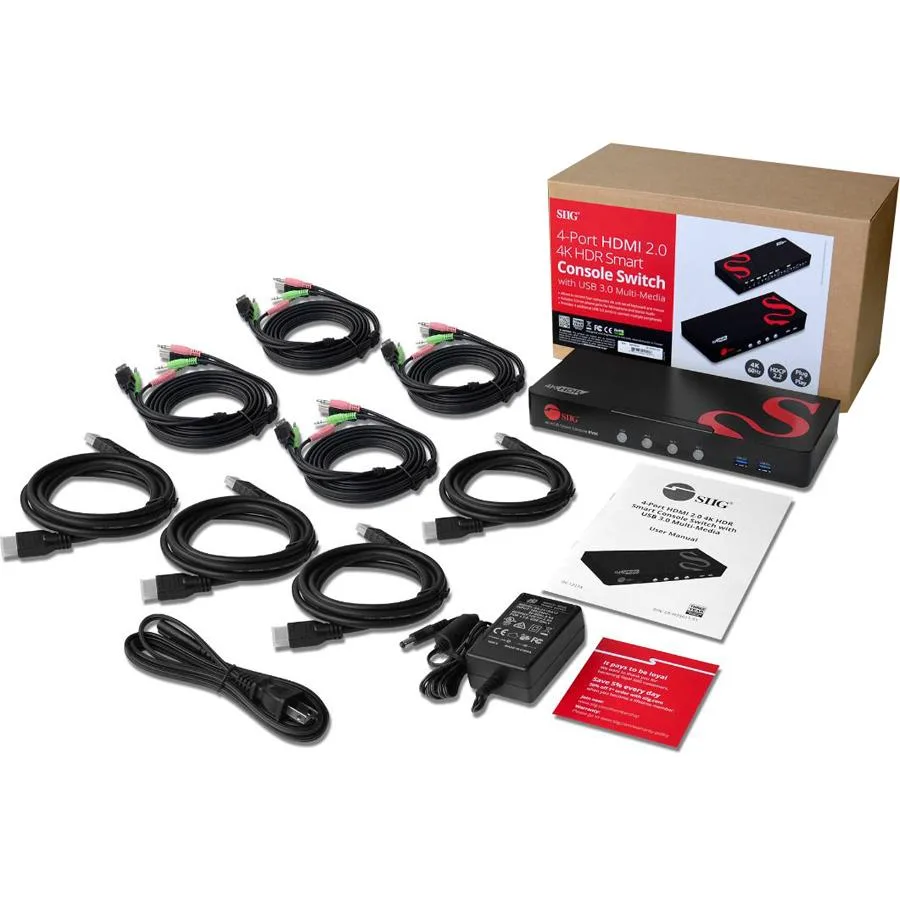

- Simplify setup with included 1.8 m HDMI and USB cables
- Connect multiple peripherals via 11 USB ports on the switch
- Compact 1.5 x 4.4 x 11.1 inch design fits tight workspaces
Specifications
| Brand | SIIG |
|---|---|
| Type | KVM Switchbox |
| Computer Connections | 4 Ports |
| Video Resolution | 3840 x 2160 |
| USB Features | with USB support |
| Features | Number of Local Users Supported:1 Package Contents: KVM Switchbox Power Adapter 4 x HDMI 2.0 Cable 1.8m 4 x USB 3.0 + MIC + Stereo 3-in-1 Cable User Manual Number of HDMI Ports:5 Number of USB Ports:11 |
| Dimensions | Height:1.5" x Width:4.4" x Depth:11.1" |
| Weight | 2.09 lb |
| Shipping weight | 2.60 kg |
| Package size | 282 × 112 × 37 mm |
Questions about this item
What video bandwidth does the 3840 x 2160 HDMI 2.0 connection cap at?
The switch handles 18 Gbps through its HDMI 2.0 ports, which supports the full 3840 x 2160 resolution at 60 Hz with HDR.
How much desk space does the 4.4 x 11.1 inch chassis need, and does it include mounting ears?
The unit measures 4.4 inches wide by 11.1 inches deep and 1.5 inches high; no mounting ears or rack brackets are listed in the package contents.
Which cables plug in first when setting up the four 3-in-1 USB 3.0 + MIC + Stereo leads?

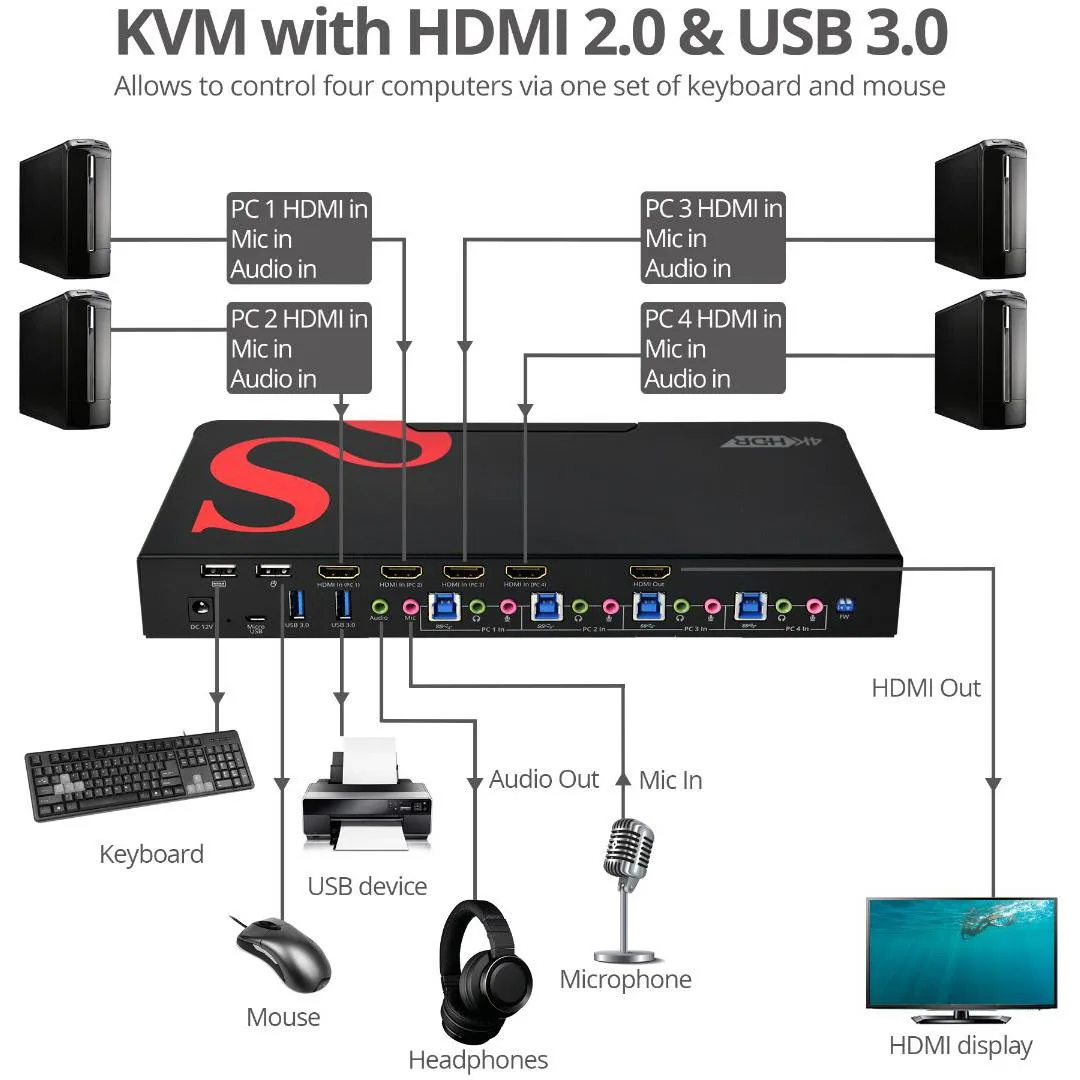

Connect each computer’s HDMI and the matching 3-in-1 cable to the corresponding numbered ports on the rear, then attach the shared console peripherals to the front before powering the unit.
