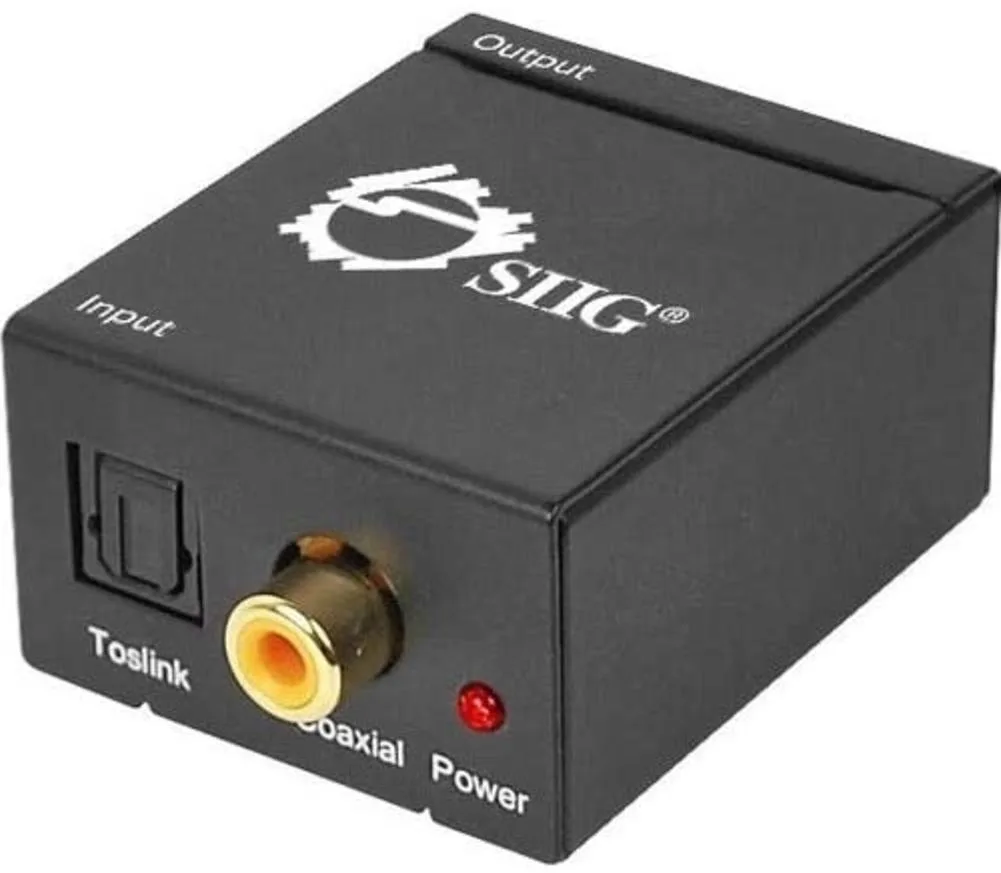

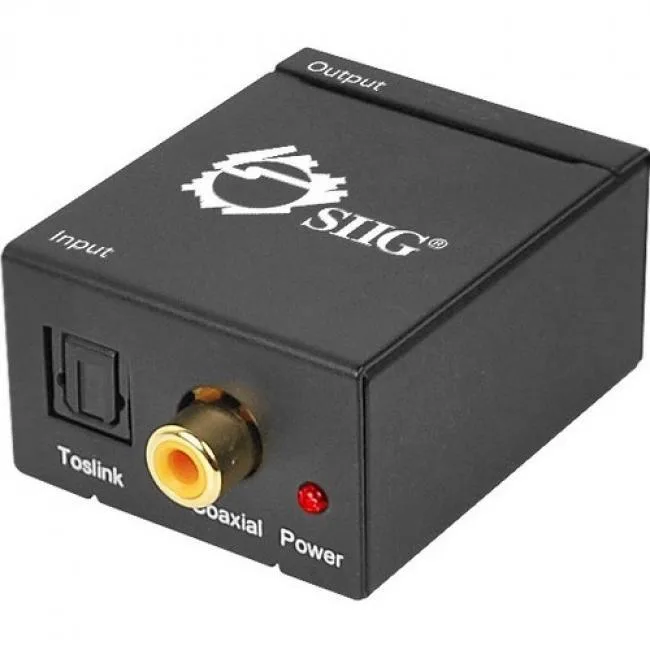

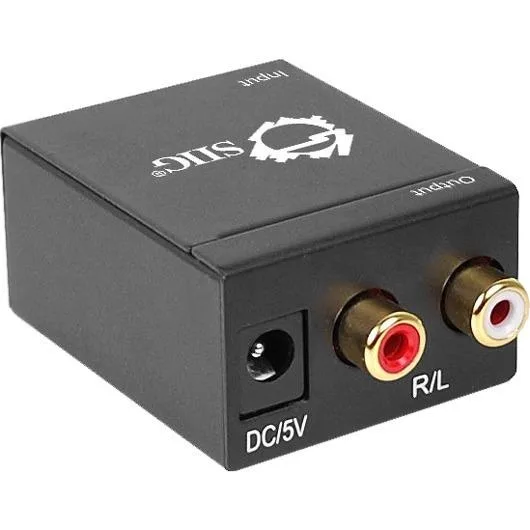

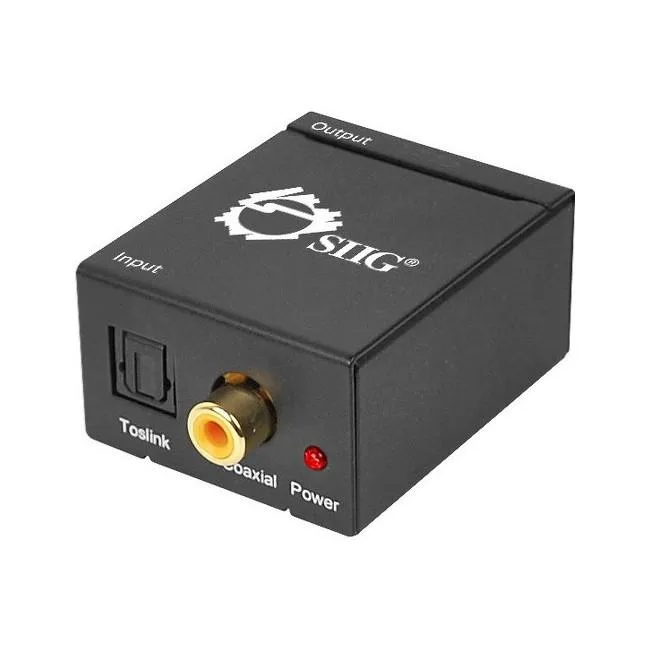

Small black metal box with optical and coaxial inputs, RCA outputs, sixteen foot cable

SIIG, Inc

SIIG, Inc CE-CV0011-S2 Digital to Analog Audio Converter 16 FT

SKU CH-SKW8-X16Z1 MPN CE-CV0011-S2

Converts optical or coaxial digital audio to analog stereo with a Cirrus Logic CS8416 chip supporting 96 kHz sampling in a shielded metal housing

  • TypeSee Details
  • Length16 FT
  • ColorBlack
  • ConnectorsInput: 1 Toslink Optical and 1 Coaxial (RCA) Output: 1 RCA A
  • SpecificationsChip: Cirrus Logic CS8416 Supports audio sampling rate at 32
  • Dimensions1.97" (W) x 1.38" (H) x 1.57" (D)
  • Converts coaxial or Toslink digital audio to analog stereo output
  • Supports sampling rates of 32, 44.1, 48 and 96 kHz
  • Metal housing provides electromagnetic-noise-free transmission
  • Compact 1.97 x 1.38 x 1.57 inch design weighs 0.17 lbs
  • Includes 5 V DC power adapter with 100-240 V AC input

Digital-to-Analog Audio Converter

The SIIG CE-CV0011-S2 converts coaxial or Toslink digital audio signals into analog stereo output. It suits users connecting legacy AV equipment to modern digital sources such as TVs or game consoles. The unit supports sampling rates of 32, 44.1, 48 and 96 kHz via a Cirrus Logic CS8416 chip. A 16 ft cable length provides flexible placement in home-theatre setups.

Plug-and-Play Installation

Connect the optical or coaxial input, attach the RCA output and power the device with the included 5 VDC adapter. Metal housing delivers RF shielding for electromagnetic-noise-free transmission. The only common issue is forgetting to set the source device to PCM output, which the converter requires. No drivers or software configuration are needed.

Stereo-Only Capacity

The converter handles two-channel L/R audio up to 96 kHz and draws a maximum of 0.5 W. It cannot decode multichannel formats such as Dolby Digital or DTS, so surround-sound sources must be downmixed at the source. Headroom is ample for standard CD-quality and high-resolution stereo streams. Buyers needing more than two analog channels should consider a different solution.

Highlights

  • Converts coaxial or Toslink digital audio to analog stereo output
  • Supports sampling rates of 32, 44.1, 48 and 96 kHz
  • Metal housing provides electromagnetic-noise-free transmission
  • Compact 1.97 x 1.38 x 1.57 inch design weighs 0.17 lbs
  • Includes 5 V DC power adapter with 100-240 V AC input

Specifications

BrandSIIG, Inc
TypeSee Details
Length16 FT
ColorBlack
ConnectorsInput: 1 Toslink Optical and 1 Coaxial (RCA)
Output: 1 RCA Analog L/R
Power jack: 5.4mm (OD) x 2mm (ID) x 9mm (L)
SpecificationsChip: Cirrus Logic CS8416
Supports audio sampling rate at 32, 44.1, 48 and 96KHz
Housing: Metal
Product weight: 0.17 lbs
Power consumption (max): 0.5W
Power adapter:
Input: 100-240VAC, 50~60Hz, 0.5A
Output: 5VDC, 2A
Power connector: 5.4mm (OD) x 2mm (ID) x 9mm (L)
Environmental conditions:
Operating temperature: 32 to 158 degrees F (0 to 70 C)
Operating humidity: 10% to 85% RH (non condensing)
Storage temperature: 14 to 176 degrees F (-10 to 80 C)
Storage humidity: 5% to 90% RH (non condensing)
Certifications/Standards: FCC, CE, RoHS
Dimensions1.97" (W) x 1.38" (H) x 1.57" (D)
Weight0.17 lbs
Sports TeamNO
Shipping weight0.45 kg
Package size171 × 127 × 64 mm

Questions about this item

How can I confirm the CE-CV0011-S2 is converting my TV's optical output correctly after I connect it?

Feed a 44.1 kHz or 48 kHz stream from the source; the Cirrus Logic CS8416 chip locks to the incoming S/PDIF signal and the analog RCA outputs should produce clean stereo audio with no digital artefacts.

What ships with the converter and what must I provide separately?

The box contains the converter, a 5 V 2 A power adapter with a 5.4 mm barrel plug, and an installation guide; you must supply the Toslink or coaxial digital cable and a pair of RCA interconnects for the analog output.

The product lists a single 16 ft variant — how do I decide if this length suits my installation?

Measure the total cable path from the digital source to the converter plus the analog run to the amplifier; if the combined distance stays within 16 ft the included length is sufficient, otherwise you will need longer Toslink, coaxial or RCA cables.
