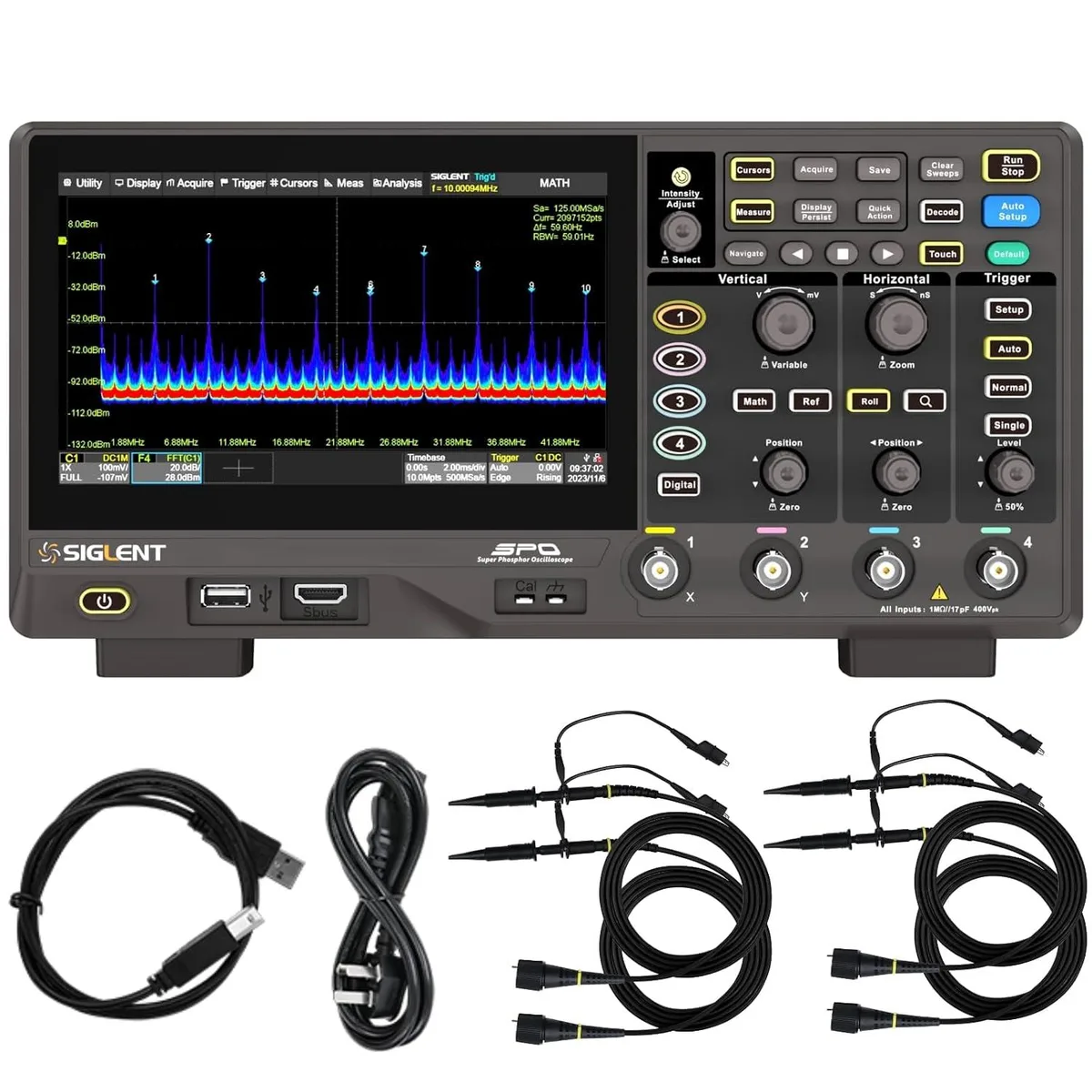

White rectangular benchtop oscilloscope with 7 inch touch screen and four BNC connectors

SIGLENT TECHNOLOGIES CO.,LTD

SIGLENT TECHNOLOGIES CO.,LTD SDS814X HD 12-bit Mixed Signal Oscilloscope 4 Channel 100 MHz

SKU CH-KAQA-8D1QV

A 100 MHz mixed-signal oscilloscope with four analog channels, 12-bit resolution, 2 GSa/s sampling and up to 100 Mpts memory depth

  • 12-bit resolution captures fine signal details
  • 100 MHz bandwidth on four analog channels
  • Up to 500000 wfm/s capture rate in sequence mode
  • 16 digital channels available with separate probe and option
  • 50 Mpts memory depth per channel in single-channel mode

100 MHz 4-channel oscilloscope

The Siglent SDS814X HD is a 12-bit mixed-signal oscilloscope with four analog channels and 100 MHz bandwidth. It provides a real-time sample rate of 2 GSa/s and a waveform capture rate up to 80,000 wfm/s in normal mode. A 7-inch touchscreen serves as the primary interface.

12-bit resolution with 50 Mpts memory

The single specification that decides suitability is the 12-bit analog-to-digital converter combined with up to 50 Mpts memory depth per channel in single-channel mode. This resolution reveals small signal details that 8-bit instruments miss, while the long memory retains fine time resolution over extended captures.

Engineers needing high-resolution analysis

This unit suits engineers who need 12-bit vertical resolution for low-level signal inspection or long memory for serial-bus decoding. Buyers who require 16 digital channels must purchase the SDS800XHD-16LA option and SLA1016 logic probe separately. Users needing bandwidth above 100 MHz should consider a different model.

Highlights

  • 12-bit resolution captures fine signal details
  • 100 MHz bandwidth on four analog channels
  • Up to 500000 wfm/s capture rate in sequence mode
  • 16 digital channels available with separate probe and option
  • 50 Mpts memory depth per channel in single-channel mode

Specifications

No published specifications for this item yet.

Questions about this item

What does the 100 MHz bandwidth mean for the signals I can measure?

The 100 MHz bandwidth lets you capture analog signals up to 100 MHz with less than 3 dB attenuation across all four channels.

How does the 2 GSa/s sampling rate affect the detail I see on screen?

The 2 GSa/s real-time sampling rate provides up to 20 samples per cycle at the full 100 MHz bandwidth, preserving waveform shape on each of the four channels.

What do I need to add the 16 digital channels shown in the specifications?

You must purchase the SDS800XHD-16LA option and the SLA1016 logic probe separately to enable the 16 digital channels.
