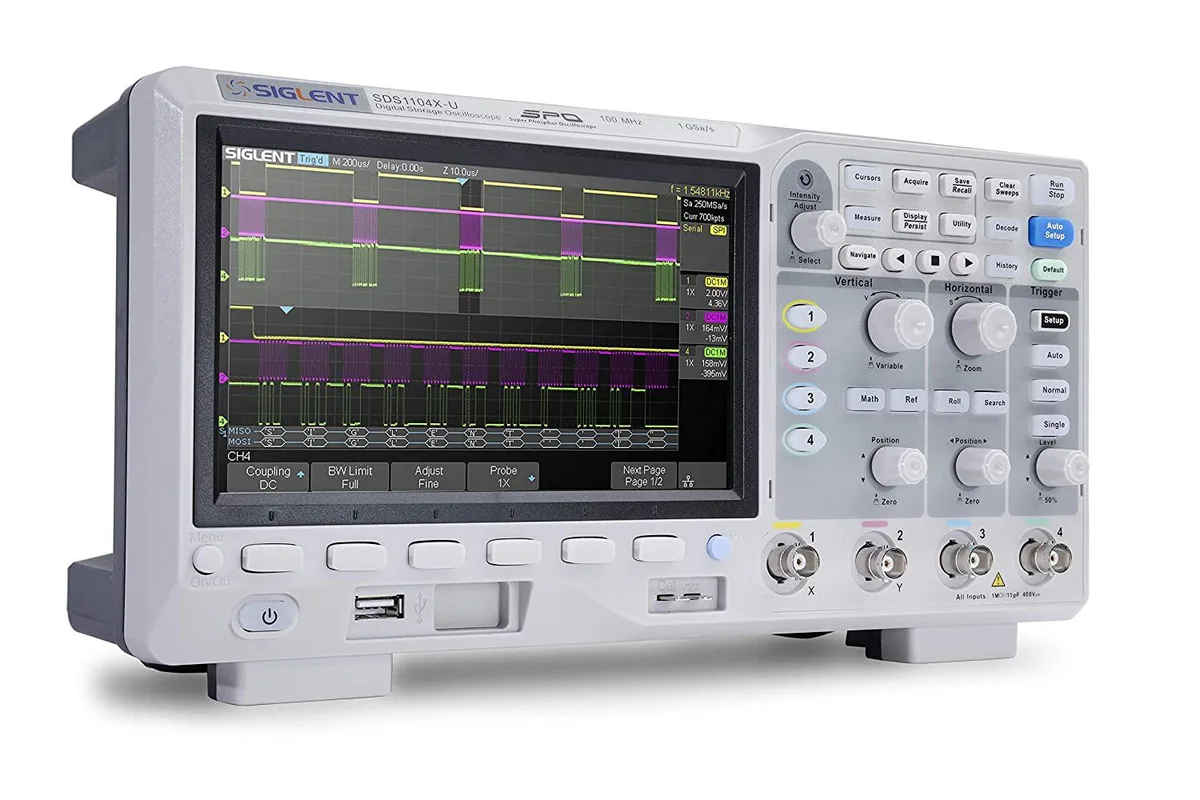

Grey rectangular benchtop oscilloscope with four BNC inputs and a colour display

SIGLENT TECHNOLOGIES CO.,LTD

SIGLENT TECHNOLOGIES CO.,LTD SDS1104X-U 100 MHz 4-channel oscilloscope measurement tool

SKU CH-CBW6-YJGQC

A 100 MHz, four-channel digital oscilloscope with 1 GSa/s sampling, 14 Mpts memory, serial bus decoding and up to 400,000 wfm/s capture rate

  • TypeDigital Multimeters
  • 100 MHz bandwidth across four channels for simultaneous signal viewing
  • 1 GSa/s real-time sampling captures fast transients accurately
  • 14 Mpts record length enables long-duration waveform analysis
  • 100,000 wfm/s capture rate reveals infrequent glitches in normal mode
  • Standard serial bus triggering and decoding covers IIC, SPI, UART, CAN, LIN

100 MHz four-channel oscilloscope

This new SIGLENT TECHNOLOGIES CO.,LTD instrument provides 100 MHz bandwidth across four channels for engineers and technicians who need simultaneous signal observation. A real-time sampling rate up to 1 GSa/s captures fast edges while a record length up to 14 Mpts preserves long time windows. Standard serial bus triggering and decoding covers IIC, SPI, UART, CAN and LIN protocols.

Upgrade from lower bandwidth or fewer channels

Moving to 100 MHz and four channels is worth it when debugging mixed-signal circuits that require correlated analog and digital views. The 100,000 wfm/s normal capture rate and 400,000 wfm/s sequence mode reveal intermittent glitches that slower scopes miss. Advanced measurements on the full 14 Mpts memory maintain accuracy over extended acquisitions.

Bench integration with deep memory and intensity

The 256-level intensity grading and color temperature display modes highlight signal anomalies without extra setup. Intelligent trigger types including Edge, Slope, Pulse Width, Window, Runt, Interval, Time out and Pattern isolate complex events quickly. Buyers who need higher bandwidth or more than four channels should evaluate other models.

Highlights

  • 100 MHz bandwidth across four channels for simultaneous signal viewing
  • 1 GSa/s real-time sampling captures fast transients accurately
  • 14 Mpts record length enables long-duration waveform analysis
  • 100,000 wfm/s capture rate reveals infrequent glitches in normal mode
  • Standard serial bus triggering and decoding covers IIC, SPI, UART, CAN, LIN

Specifications

TypeDigital Multimeters

Questions about this item

What rack-mount or bench space does the SDS1104X-U need?

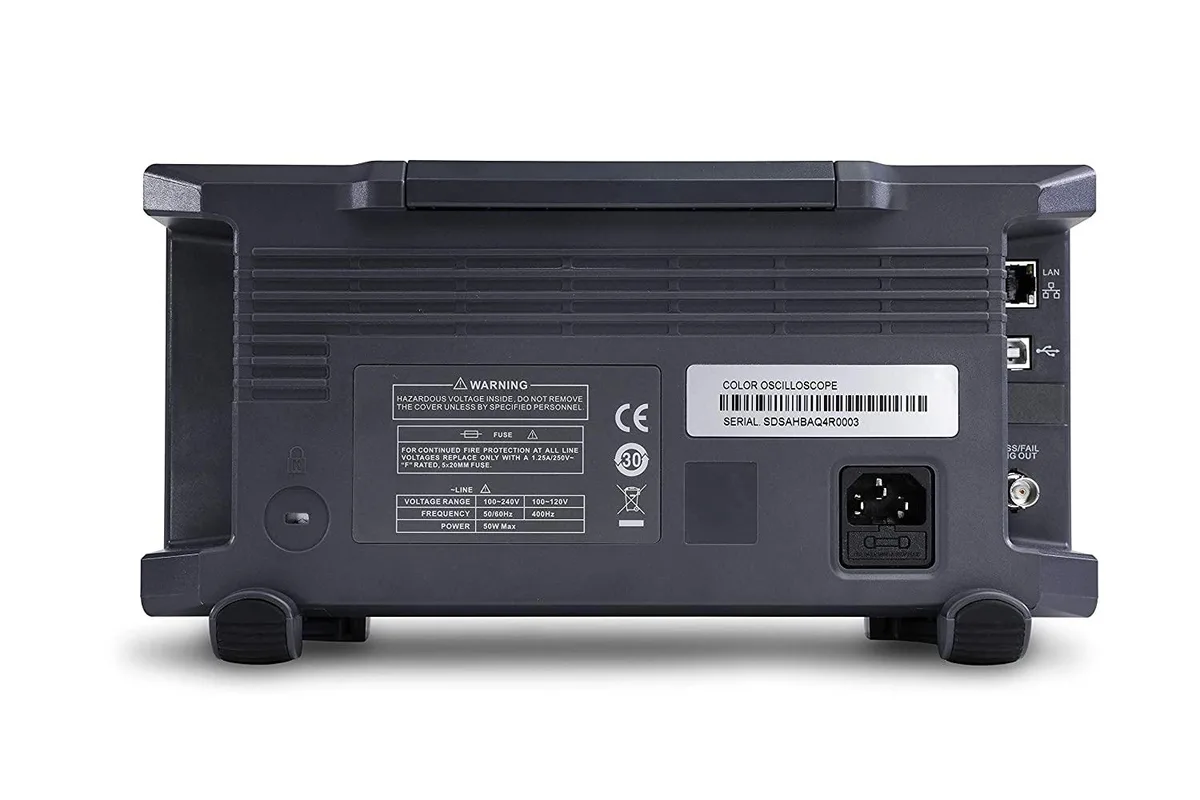

The unit is a standard benchtop oscilloscope; allow clearance for the four BNC inputs, USB ports and rear ventilation when placing it on a shelf or rack tray.

How do I enable the standard serial-bus decoding for I2C, SPI, UART, CAN and LIN on the SDS1104X-U?

Press the Decode button, select the protocol from the on-screen menu, assign the active channels to the signal lines and set the threshold; the decoder then overlays packet data on the live waveform.

Which consumable parts will the SDS1104X-U need over time?

The passive voltage probes supplied with the instrument should be replaced when tip wear or cable damage affects the 100 MHz bandwidth specification; no internal user-replaceable modules are listed.
