SIEMENS

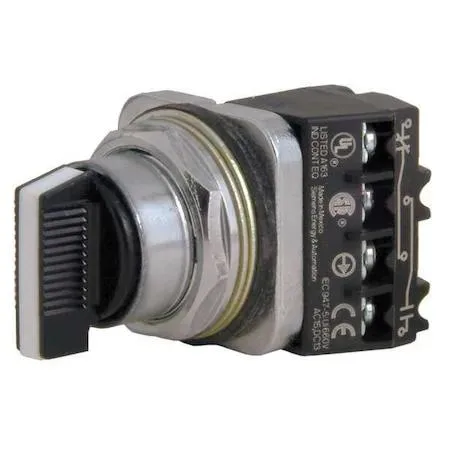

SIEMENS 52SA2CABA2 selector switch 30 mm 3 position
A 30 mm three-position selector switch with maintained action, 10 A at 600 V AC contact rating and IP20/IP66 protection
- 30 mm mounting fits standard panels
- Three maintained positions for flexible control
- 10 A at 600 V AC contact rating
- NEMA 1 12 13 3 3R 4 4X and IP66 protection
- Chrome bezel with black extended lever operator
Industrial selector switch for control panels

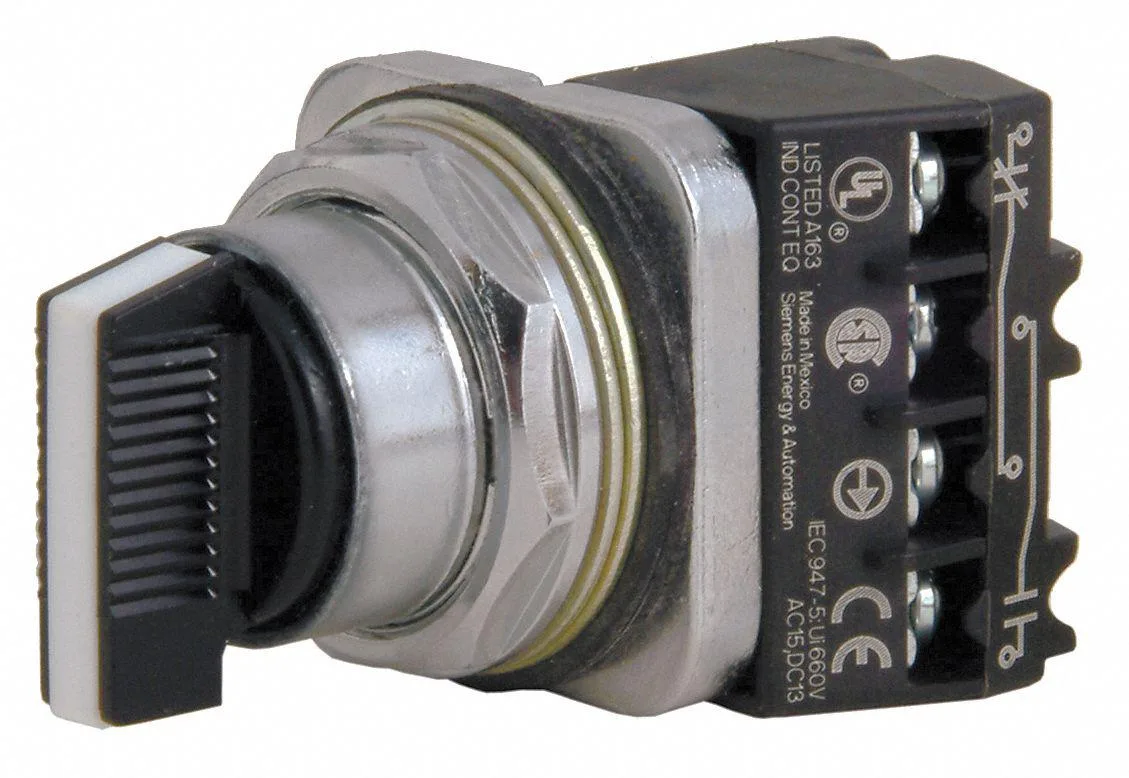

The SIEMENS 52SA2CABA2 is a 30 mm non-illuminated selector switch built for industrial control panels. It provides three maintained positions using an extended lever operator with a black plastic head and zinc bezel. The unit carries a 10A at 600V AC contact rating and NEMA A600 designation for heavy-duty pilot duty.
Replaces worn cam switches in motor starters
This switch suits maintenance crews replacing failed cam-operated selectors in motor starters or contactor circuits. The jump is worth it when the existing device shows contact wear or enclosure seal degradation, and the panel cut-out matches the 30 mm mounting. It supplies 1NO/1NC contacts with Cam C switching logic for standard three-position control sequences.
Limited to panels rated for the listed NEMA types
Practical limits come from the NEMA 1, 3, 3R, 4, 4X, 12 and 13 ratings plus IP20 and IP66 ingress protection. The switch is not suited for environments requiring higher pressure wash-down or hazardous-location certifications beyond these ratings. REACH Article 33 compliance covers declared substances of very high concern.
Highlights
- 30 mm mounting fits standard panels
- Three maintained positions for flexible control
- 10 A at 600 V AC contact rating
- NEMA 1 12 13 3 3R 4 4X and IP66 protection
- Chrome bezel with black extended lever operator
Specifications
| Brand | SIEMENS |
|---|
Questions about this item
What panel cut-out does the 30 mm selector switch need?
The switch mounts in a standard 30 mm panel cut-out; the metal body and zinc bezel clamp from the front with the supplied lock-nut.
Which terminals do the 1NO/1NC contacts use during wiring?
Wire the normally-open and normally-closed contacts to the screw terminals on the cam C block; the common error is swapping the NO and NC leads.
When should the IP20 contact block be inspected or replaced?
Check the contact block for carbon tracking or pitting after heavy 10 A 600 V AC duty cycles; replace if resistance rises or the maintained action feels loose.
