White illuminated 22 mm flush push button with metal bezel

SIEMENS

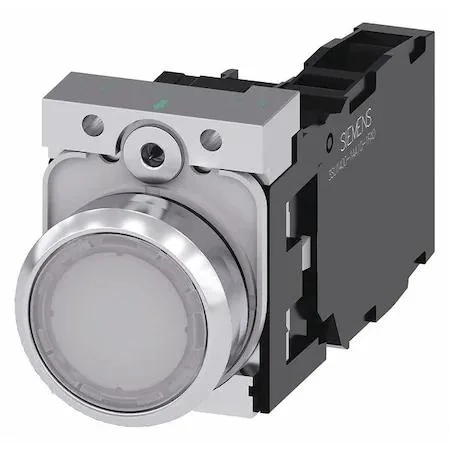

SIEMENS 3SU1153-0AB60-1FA0 Illuminated Push Button White 22mm

SKU CH-SJCK-3DGP0

A 22 mm illuminated push button with momentary flush operation, 1NO/1NC contacts rated 10 A at 600 V AC and IP69K protection

  • Size22 mm
  • ColorWhite
  • Color MappingWhite
  • White LED illumination for clear status indication
  • 22 mm metal bezel fits standard panel cut-outs
  • Momentary flush action with 1NO/1NC contacts
  • IP69K and NEMA 4X rated for wash-down environments
  • 10 A at 600 V AC contact rating handles heavy loads

Siemens 22 mm Illuminated Push Button

The Siemens 3SU1153-0AB60-1FA0 is a new 22 mm illuminated push button with a white LED and a flush metal operator. It carries a 10 A contact rating at 600 V AC and a 5 A rating at 600 V DC. The NEMA A600/R300 designation suits industrial control panels and machinery interfaces.

White LED lamp module at 120 V AC

The integrated full-voltage LED operates directly at 120 V AC without an external transformer. The lamp is not replaceable, so the entire unit must be swapped when the light source reaches end of life. A nickel-plated brass and zinc die-cast bezel protects the plastic head.

NEMA and IP environmental ratings

The button meets NEMA type 1, 2, 3, 3R, 4, 4X and 12 ratings for indoor and outdoor use. It also achieves IP69K protection against high-pressure, high-temperature wash-down. Buyers needing a replaceable lamp or a different voltage must select another model.

Highlights

  • White LED illumination for clear status indication
  • 22 mm metal bezel fits standard panel cut-outs
  • Momentary flush action with 1NO/1NC contacts
  • IP69K and NEMA 4X rated for wash-down environments
  • 10 A at 600 V AC contact rating handles heavy loads

Specifications

BrandSIEMENS
Size22 mm
ColorWhite
Color MappingWhite

Questions about this item

Is the LED lamp inside the 22 mm push button replaceable when it eventually dims?

The lamp module is not replaceable, so the complete operator must be swapped once the LED reaches end of life.

Which rating limits continuous operation first — the 10 A at 600 V AC contact rating or the NEMA A600/R300 designation?

The NEMA A600/R300 designation governs the pilot-duty make/break limits and will be reached before the 10 A thermal rating under sustained inductive loads.

How much heat does the 120 V AC full-voltage LED generate during all-day operation?

The LED lamp runs directly on 120 V AC with no external transformer, so heat rise is minimal and the IP69K-rated housing remains cool to the touch.
