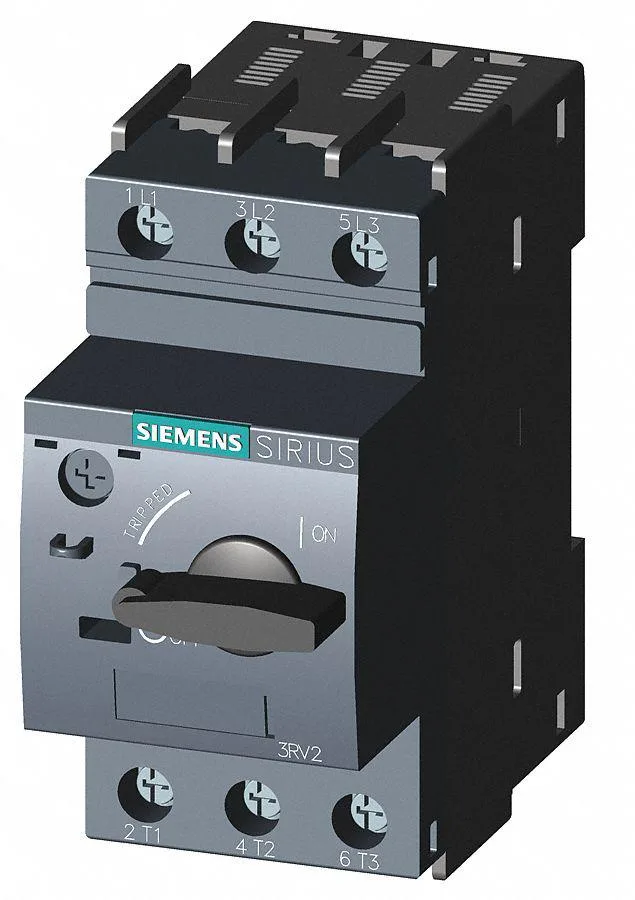

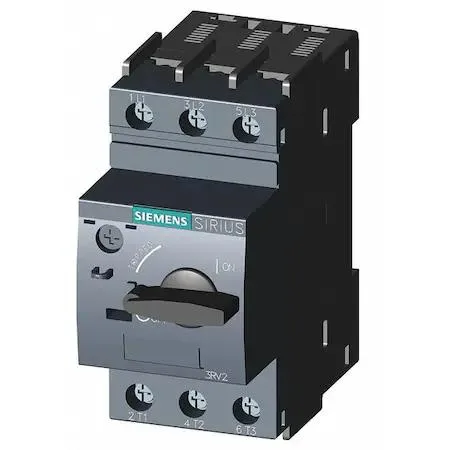

SIEMENS 3RV20214EA10 manual motor starter 3P 32A 690V AC
Three-phase manual motor starter with 32 A current rating, 27–32 A overload adjustment range, and 690 V AC maximum voltage
- Manual motor starter rated 32 A for reliable overload protection
- Three-pole design handles 690 V AC maximum voltage
- Adjustable overload relay from 27 A to 32 A suits motor sizing
- DIN-rail mounting simplifies panel installation
- Selector-switch operator gives direct local control
Three-phase motor starter up to 32 A
The SIEMENS 3RV20214EA10 is a manual motor starter rated for three-phase supplies up to 690 V AC. It suits OEMs and maintenance teams protecting pumps, compressors or conveyors where a compact DIN-rail device with adjustable overload is required.
DIN-rail mount with selector-switch operator
The unit clips onto standard DIN rail and uses a rotary selector switch for local on/off control. Its three-pole construction covers three-phase loads while the adjustable overload range of 27 A to 32 A lets installers match the trip point to the motor nameplate without external relays.
Sustained overload protection to 32 A
Under continuous operation the thermal overload element trips reliably within the 27 A to 32 A band, protecting windings from long-duration overcurrent rather than only short-circuit peaks. The 690 V AC insulation rating maintains creepage and clearance margins during extended duty cycles at 208 V, 240 V or 480 V three-phase.
Highlights
- Manual motor starter rated 32 A for reliable overload protection
- Three-pole design handles 690 V AC maximum voltage
- Adjustable overload relay from 27 A to 32 A suits motor sizing
- DIN-rail mounting simplifies panel installation
- Selector-switch operator gives direct local control
Specifications
| Brand | SIEMENS |
|---|
Questions about this item
What is the highest continuous current the 32 A overload relay can carry before it trips?
The overload relay trips above 32 A; its setting range runs from 27 A to 32 A.
How much heat must the enclosure dissipate when the starter runs at full load all day?
At 32 A the internal losses are low enough for standard DIN-rail mounting without forced cooling.
Which supply voltage must the control circuit already provide for the selector switch to operate?
The starter is rated for 690 V AC maximum, so the supply must not exceed that voltage.
