SIEMENS

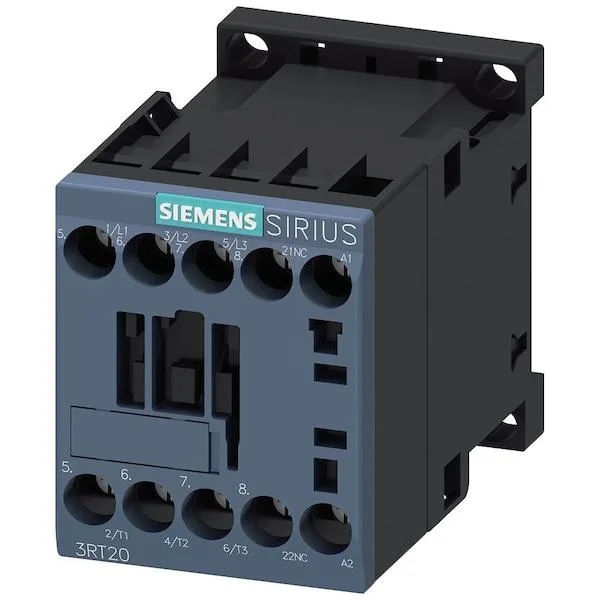

SIEMENS 3RT20151AN62 IEC Magnetic Contactor 208V AC 3P 1NC
IEC magnetic contactor with 3 poles, 208 V AC coil, 7 A inductive current and 1 NC auxiliary contact
- IEC magnetic contactor for standard motor control
- 3-pole design switches three-phase loads cleanly
- 208 V AC coil matches common industrial supplies
- 7 A inductive rating handles typical motor currents
- DIN-rail or surface mount fits existing panels
IEC Magnetic Contactor 208 V AC
The SIEMENS 3RT20151AN62 is a non-reversing IEC magnetic contactor rated for 208 V AC coil voltage with three main poles and one normally closed auxiliary contact. It suits motor-starting panels, lighting circuits and other industrial control tasks where a compact DIN-rail or surface-mount starter is required.
Screw-terminal wiring and DIN-rail mounting

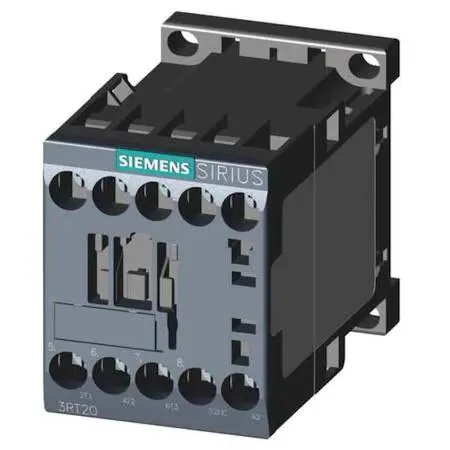

Installation uses screw terminals for both power and control connections and the unit clips onto standard DIN rail or can be surface mounted with screws. The 1.97 in width and 3.08 in height keep the footprint small, but installers must verify that the 7 A inductive and 18 A resistive ratings match the load before energising the circuit.
Coil voltage and contact limits
The contactor operates on a 200/220 V AC coil, so the control circuit must stay within that range for reliable pull-in and drop-out. The three-pole design handles only three-phase or single-phase loads up to the stated current limits and provides a single normally closed auxiliary contact for interlocking or indication.
Highlights
- IEC magnetic contactor for standard motor control
- 3-pole design switches three-phase loads cleanly
- 208 V AC coil matches common industrial supplies
- 7 A inductive rating handles typical motor currents
- DIN-rail or surface mount fits existing panels
Specifications
| Brand | SIEMENS |
|---|
Questions about this item
How can I confirm the contactor is operating correctly once it is wired to the 208 V AC coil?
Apply 208 V AC to the coil and listen for a firm mechanical click; the three main poles should close and the single normally-closed auxiliary contact should open, allowing the load circuit to energise.
What comes in the box and what must I source separately?
The contactor itself is supplied; you will need to provide DIN rail or surface-mount hardware, screw-terminal wiring, and the 200/220 V AC control supply.
Which coil voltage version should I select for a 208 V control circuit?
Choose the 208 V AC coil variant (200/220 V AC rated) to match your control voltage.
