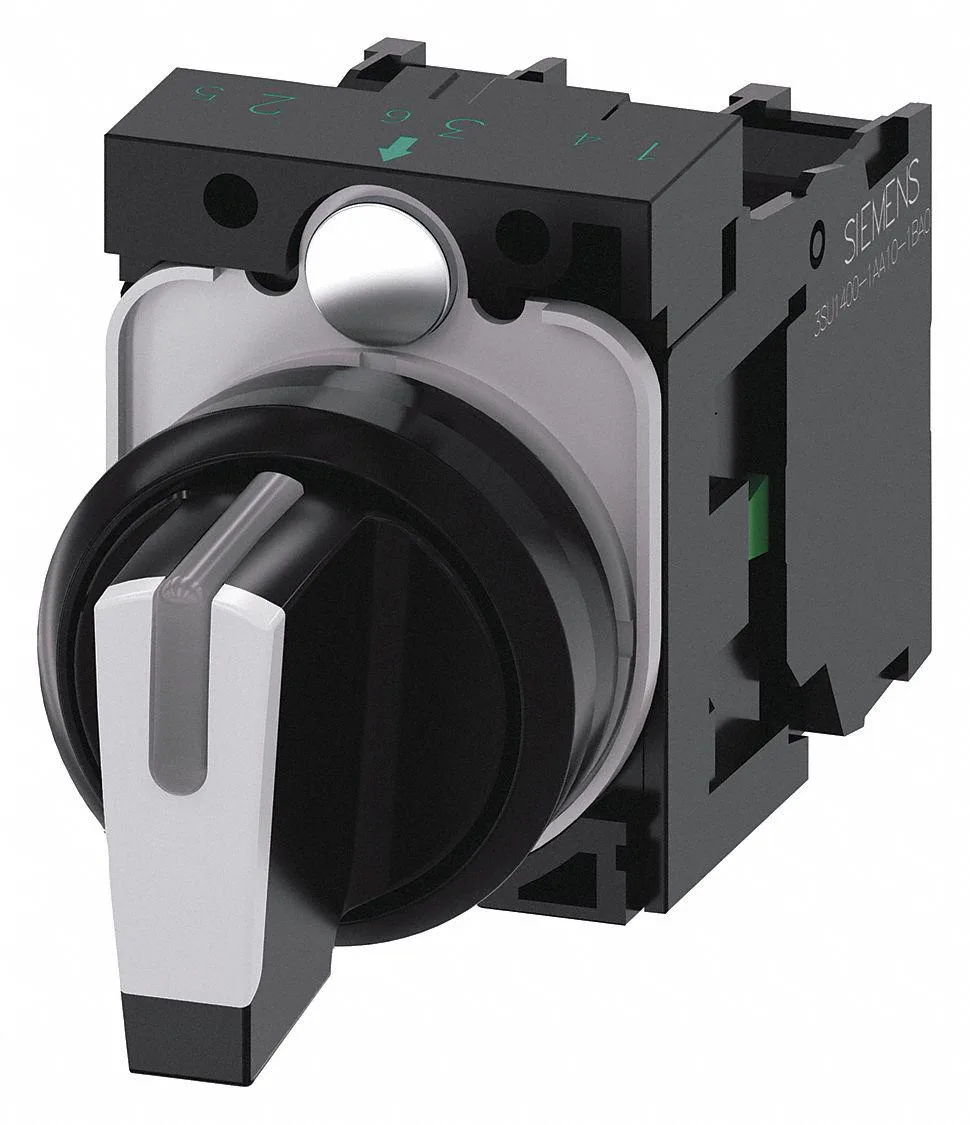

White 22 mm selector switch with lever operator and black bezel

SIEMENS

SIEMENS 22 mm Selector Switch 3 Position 1NO White

SKU CH-PG4Y-W5FBT

A 22 mm selector switch with three momentary positions, one normally open contact, white lever and IP66, IP67, IP69, IP69K protection rated at 10 A 600 V AC

  • Engine BrandSIEMENS
  • Engine Size22 mm
  • 3-position momentary action gives flexible control
  • 1NO contact rated 10A at 600V AC handles demanding circuits
  • IP66, IP67, IP69 and IP69K ratings withstand harsh environments
  • NEMA 1, 12, 2, 3, 3R, 4, 4X enclosures suit varied installations
  • 22 mm white lever operator fits standard panel cut-outs

22 mm White Selector Switch

This SIEMENS selector switch fits a standard 22 mm panel cut-out and carries a white lever operator. It provides three momentary positions with a single normally open contact rated at 10 A for 600 V AC and 1 A for 600 V DC. The plastic housing meets NEMA 1, 2, 3, 3R, 4, 4X, 12 and IP66, IP67, IP69, IP69K ratings for harsh environments.

Industrial Panel Builders

The switch suits control panels that need a compact three-position momentary actuator with a single NO circuit. It is not for applications requiring maintained positions, multiple contact blocks, illuminated operators or key-operated locking. Buyers who need a cam mechanism or higher contact counts should specify a different assembly.

10 A 600 V AC Contact Rating

The 10 A at 600 V AC rating (NEMA A600/R300) determines whether this switch can handle the intended control-circuit load. Verify the circuit current and voltage against this rating before installation.

Highlights

  • 3-position momentary action gives flexible control
  • 1NO contact rated 10A at 600V AC handles demanding circuits
  • IP66, IP67, IP69 and IP69K ratings withstand harsh environments
  • NEMA 1, 12, 2, 3, 3R, 4, 4X enclosures suit varied installations
  • 22 mm white lever operator fits standard panel cut-outs

Specifications

Engine BrandSIEMENS
Engine Size22 mm

Questions about this item

How is the 22 mm selector switch mounted and what step is often missed?

The switch fits a standard 22 mm panel cut-out; the common mistake is forgetting to seat the bezel gasket before tightening the locking nut, which is required for the IP66, IP67, IP69 and IP69K ratings.

What maintenance or replacement will the contact block need over time?

The 1NO contact block is rated for 10 A at 600 V AC and 1 A at 600 V DC; under normal duty it should not need replacement, but if the silver-alloy tips wear or carbon-track, the entire block must be swapped as it is not serviceable.

What limit appears first during sustained operation of the selector switch?

The thermal limit of the A600/R300 contact rating is reached first; continuous loading near 10 A at 600 V AC will cause contact heating before any mechanical endurance limit is met.
