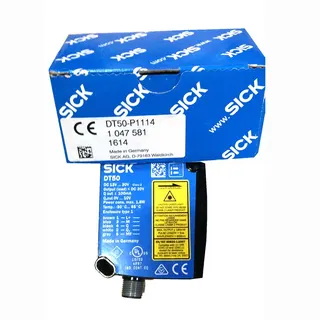

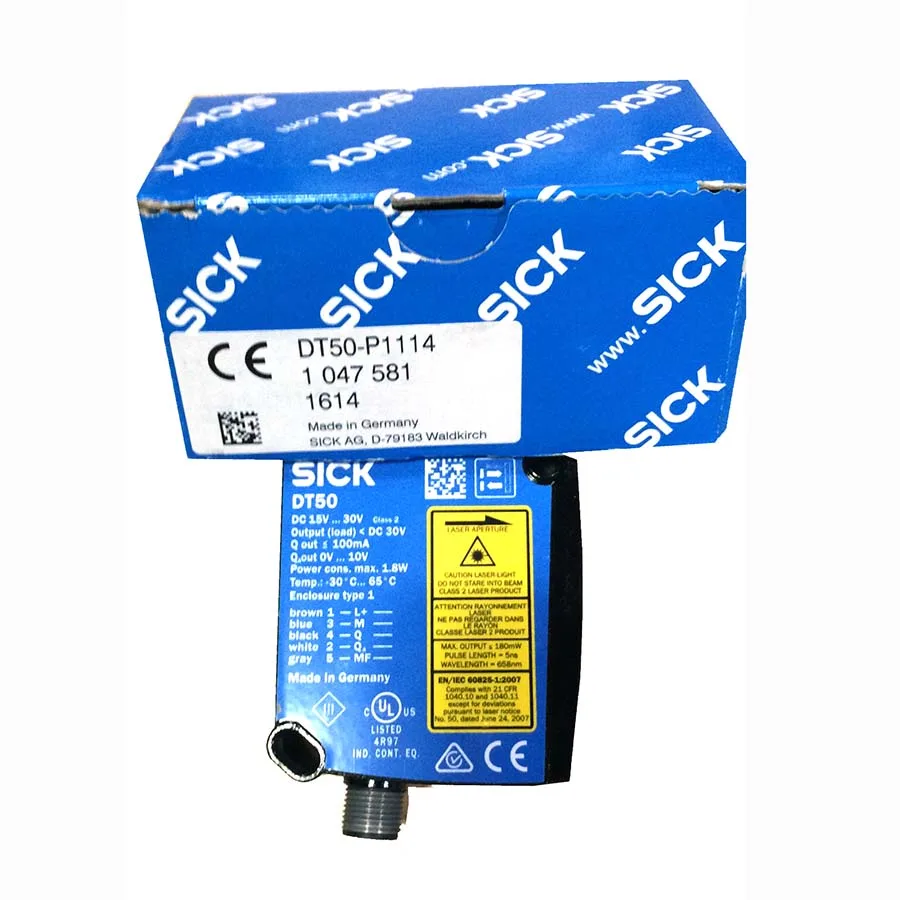

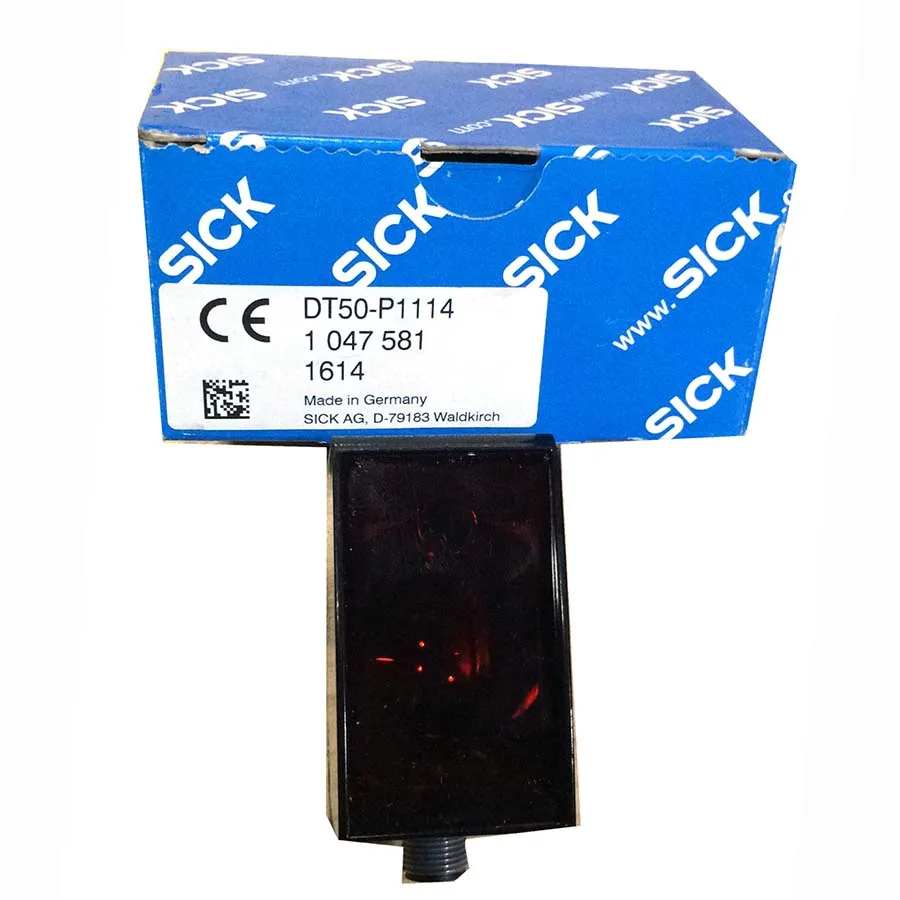

Rectangular zinc die-cast sensor with acrylic window and M12 connector

Sick

Sick DT50-P1114 Distance Sensor

SKU CH-2CWG-YK5EG

Mid-range distance sensor measures 200 mm to 10,000 mm with 1 mm resolution and ±10 mm accuracy using a Class 2 red laser

  • Measures up to 10,000 mm on bright surfaces
  • Reliable detection down to 6 % reflectivity at 4,000 mm
  • Laser class 2 with 100,000-hour typical service life
  • IP65 zinc die-cast housing withstands dust and water jets
  • Configurable averaging and teach-in via multifunction input

Industrial distance sensing

The Sick DT50-P1114 is a mid-range laser distance sensor built for industrial automation and electrician applications. It measures natural objects from 200 mm to 10,000 mm at 90 % remission with 1 mm resolution and ±10 mm accuracy. The red laser operates at Class 2 per IEC 60825-1:2014 and provides a 15 mm x 15 mm spot at 10 m distance. Response time ranges from 20 ms to 30 ms with a 4 ms output time.

Configurable measurement modes

The sensor includes switching modes for distance-to-object detection, teach-in setup, and scaling with inversion of both switching and analog outputs. A multifunctional input accepts laser-off, external teach, or deactivated commands while the LC display and dual LEDs provide status indication. Users can set moving averages for fast or slow response, adjust hysteresis, reset to factory defaults, or lock the interface. Average laser service life reaches 100,000 hours at 25 °C.

Power and connection limits

Operation requires a 15 V to 30 V DC supply with maximum 5 Vpp ripple and 2.1 W power consumption. Initialization takes 250 ms followed by a 15-minute warm-up period for full stability. The zinc die-cast and acrylic glass housing carries an IP65 enclosure rating and Protection Class III. Connection uses a 5-pin M12 male connector. Buyers needing wireless output or battery operation will find neither supported by this design.

Highlights

  • Measures up to 10,000 mm on bright surfaces
  • Reliable detection down to 6 % reflectivity at 4,000 mm
  • Laser class 2 with 100,000-hour typical service life
  • IP65 zinc die-cast housing withstands dust and water jets
  • Configurable averaging and teach-in via multifunction input

Specifications

BrandSICK
ModelSICK DT50-P1114

Questions about this item

How long does the laser last before it needs replacement?

The laser has an average service life of 100,000 hours at 25 °C.

What limits the measuring distance when the sensor runs continuously?

Remission of the target limits range: 10,000 mm at 90 % remission, 6,500 mm at 18 %, and 4,000 mm at 6 %.

How much power does the sensor draw and how hot does it get during all-day operation?

Power consumption is 2.1 W from a 15–30 V DC supply; the housing is zinc die-cast with PMMA window and rated IP65.
