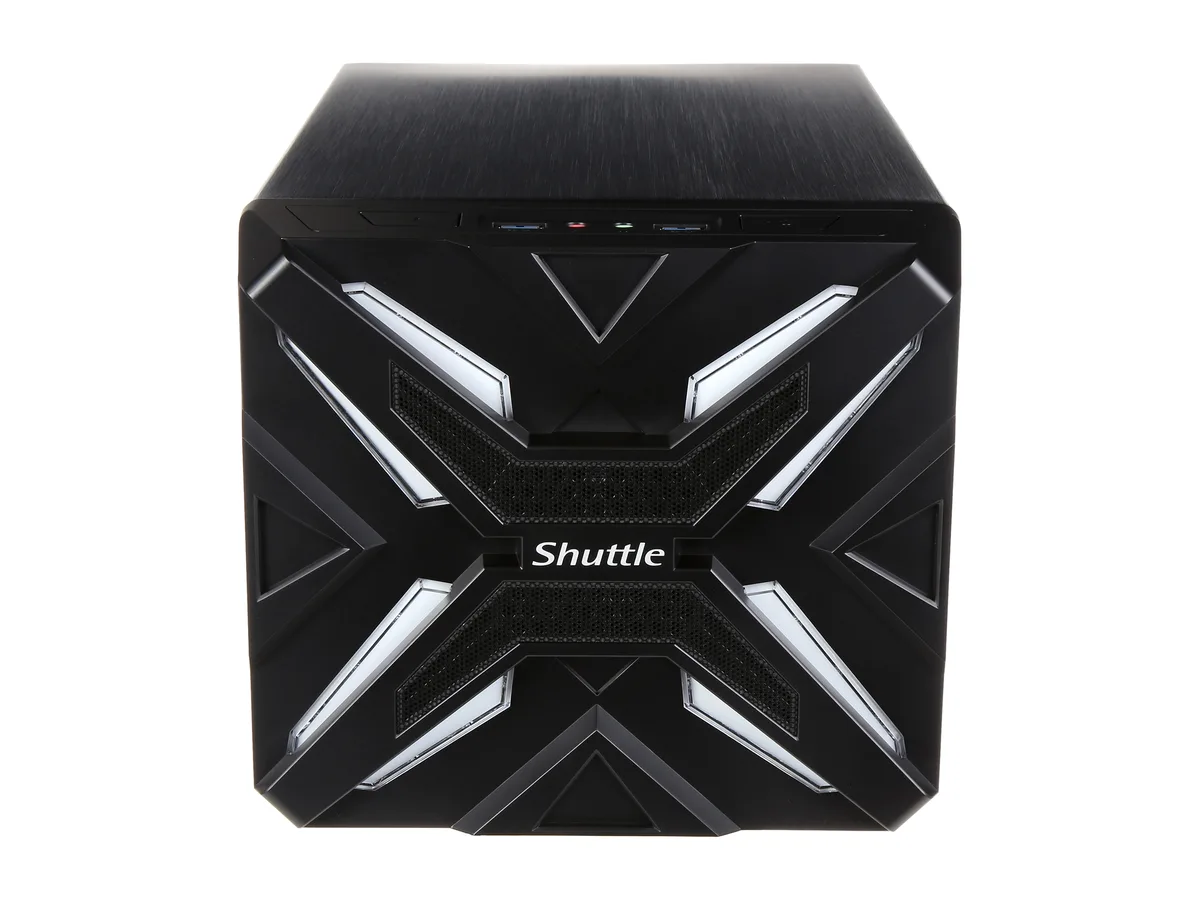

Compact black cube barebone PC with front panel ports and ventilation grille

Shuttle Computer

Shuttle Computer SZ270R9 barebone pc LGA1151 Z270 64GB DDR4 500W

SKU CH-4193-2309T MPN SZ270R9

A compact cube barebone supporting 95 W LGA 1151 CPUs, Z270 chipset, four DDR4 slots up to 64 GB, dual M.2 2280 and four SATA bays, with a 500 W PSU

  • ColorBlack
  • CPU TypeSupport Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU proc
  • CPU SocketIntel Socket LGA1151
  • North BridgeIntel Z270
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Supports 95W LGA1151 Core i3/i5/i7 CPUs for strong gaming performance
  • Four DDR4 DIMM slots accept up to 64GB dual-channel memory
  • One PCIe x16 and one PCIe x4 slot provide flexible GPU and add-in card options
  • Two M.2 2280 and one M.2 2230 sockets enable fast storage and wireless expansion
  • Built-in 500W power supply delivers reliable energy in a compact 7.8×8.5×13.1 inch cube

LGA1151 barebone with 500W PSU

The Shuttle XPC Cube SZ270R9 is a compact barebone system built around the Intel Z270 chipset and LGA1151 socket. It arrives without memory, storage or a processor, letting builders choose their own Core i3, i5 or i7 from the Skylake or Kaby Lake families. A 500W power supply and four 3.5-inch drive bays are already integrated.

Builders using 6th or 7th Gen Intel CPUs

This chassis suits anyone assembling a small-form-factor PC with a 95W LGA1151 processor and dual-channel DDR4 memory. It will not accept 8th Generation Intel CPUs, so buyers moving to a newer platform must select a different barebone.

Z270 chipset with four DDR4 slots

The board provides four 288-pin DIMM slots supporting DDR4-2400 and DDR4-2133 up to 64GB in dual-channel mode. This memory ceiling and speed range are the decisive figures when matching RAM kits to the platform.

Highlights

  • Supports 95W LGA1151 Core i3/i5/i7 CPUs for strong gaming performance
  • Four DDR4 DIMM slots accept up to 64GB dual-channel memory
  • One PCIe x16 and one PCIe x4 slot provide flexible GPU and add-in card options
  • Two M.2 2280 and one M.2 2230 sockets enable fast storage and wireless expansion
  • Built-in 500W power supply delivers reliable energy in a compact 7.8×8.5×13.1 inch cube

Specifications

BrandShuttle
SeriesXPC CUBE
ModelSZ270R9
ColorBlack
CPU TypeSupport Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor
* Not Compatible with Intel 8th Gen CPUs
CPU SocketIntel Socket LGA1151
North BridgeIntel Z270
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type SupportedDDR4 2400/ 2133
Max Memory Supported64GB
Memory Channel SupportedDual Channel
PCI Express1 x PCI Express x16 + 1 x PCI Express x4
Other1 x M.2 2230 type A,E key socket
Storage InstalledNo Hard Drive
Serial ATA4 x SATA 6.0Gb/s
M.22 x M.2 MAX to 2280 Type M, key socket
Onboard VideoIntegrated in CPU
Onboard AudioRealtek ALC662
Channel5.1-CH
First LAN2 x Intel Chip i211
Max LAN SpeedDual 10/100/1000Mbps
3.5" Internal bays4 x 3.5" HDD bay
* Supports up to 8 x 2.5" HDD using 4 x PHD3 HDD rack when the system has an extra SATA or RAID card
Front USB2 x USB 3.0 Port
Front Audio Ports1 x External microphone jack 1/8"
1 x External headphone jack 1/8"
Other Front PortsONBOARD CONNECTORS:
2 x 4-pin fan connector
1 x ATX main power (2x10)
1 x ATX 12V power (2x2)
1 x RS232 header
1 x Front USB 3.0 header
1 x Front audio header
1 x 2x5-pin USB header
HDMI1 x HDMI
DisplayPort2 x DisplayPort
Rear USB4 x USB 2.0 Ports
4 x USB 3.0 Ports
RJ452
Rear Audio Ports1 x Line in jack
1 x Line out jack
1 x Audio MIC in
Input100 - 240V AC
Power SupplySupports 80 PLUS Silver
80 PLUS 500W power supply

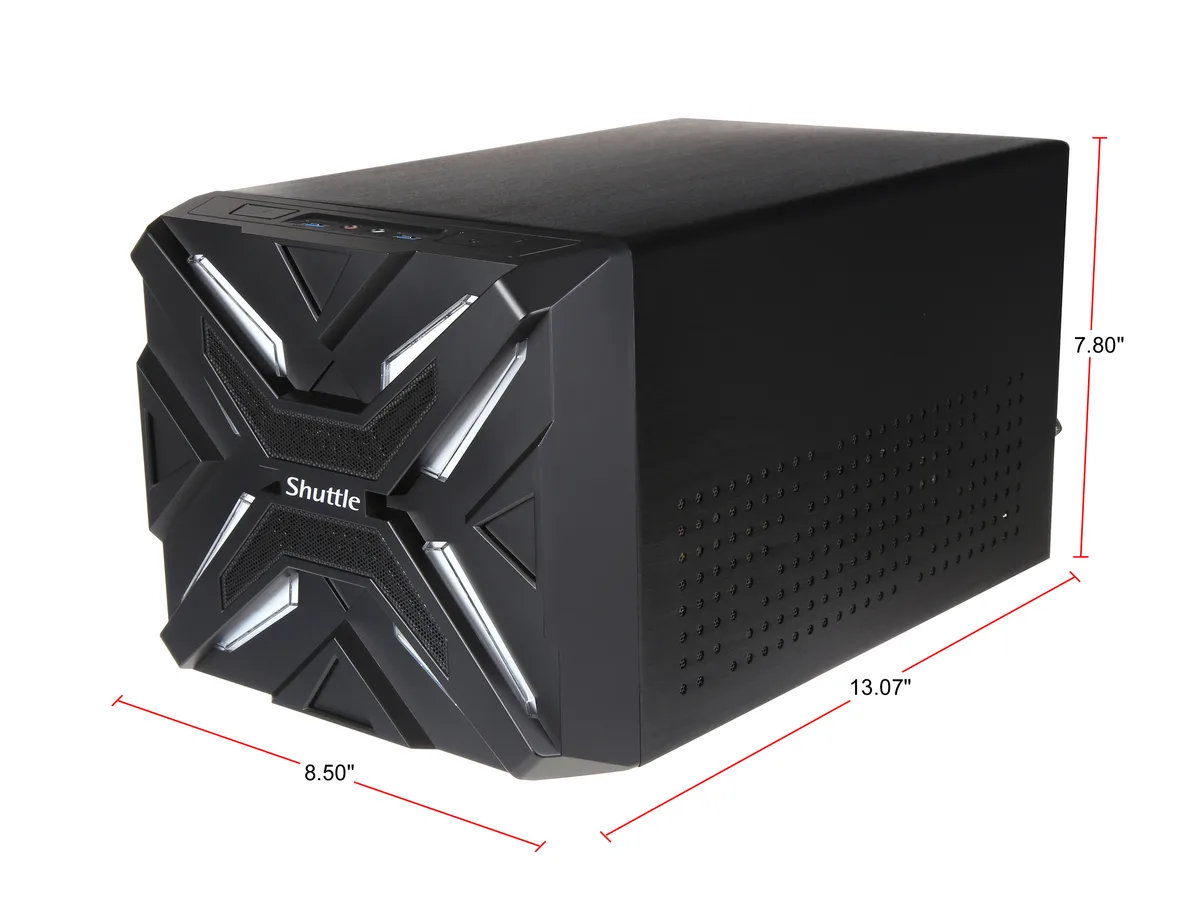

Dimensions7.80" x 8.50" x 13.07"
Weight11.65
FeaturesPERFORMANCE OF YOUR CHOICE
With support for Intel Core processors, you can take your game anywhere you want to go. The SZ270R9 features smooth 4K UHD video playback, power efficiency, and support for DDR4 2133/2400 memory up to 64GB max.
XPC OVERCLOCK TOOL
Master your system with our XPC Overclock Tool* to monitor CPU temperature, usage, clock speed, and voltage in real time to ensure the best system stability (overclock function only available with unlocked Intel Core K processors).
* available in eight languages and supports Windows 10 64-bit only
YOUR STYLE, YOUR WAY
Personalize y
Package ContentsACCESSORIES:
Quick guide
XPC DVD Driver
4 x SATA cable (For HDD)
CPU Thermail Grease
Power cord
Screw package
Shipping weight5.26 kg
Package size457 × 274 × 239 mm

Questions about this item

How do I confirm the 500W power supply is delivering stable power after I install a 95W CPU and graphics card?

The 500W unit powers the board and drives; stable operation under load with no unexpected shutdowns indicates it is working as intended.

Which components are included in the box and which must I purchase separately for a working system?

The box contains the SZ270R9 chassis, 500W PSU, quick guide, driver DVD, four SATA cables, CPU thermal grease, power cord and screws; you must add a LGA1151 CPU, DDR4 memory, storage drives and an operating system.

Should I choose DDR4-2400 or DDR4-2133 modules to reach the 64GB maximum across the four 288-pin slots?

Both DDR4-2400 and DDR4-2133 are supported; populate all four slots with matched modules up to 16GB each to reach the 64GB limit in dual-channel mode.
