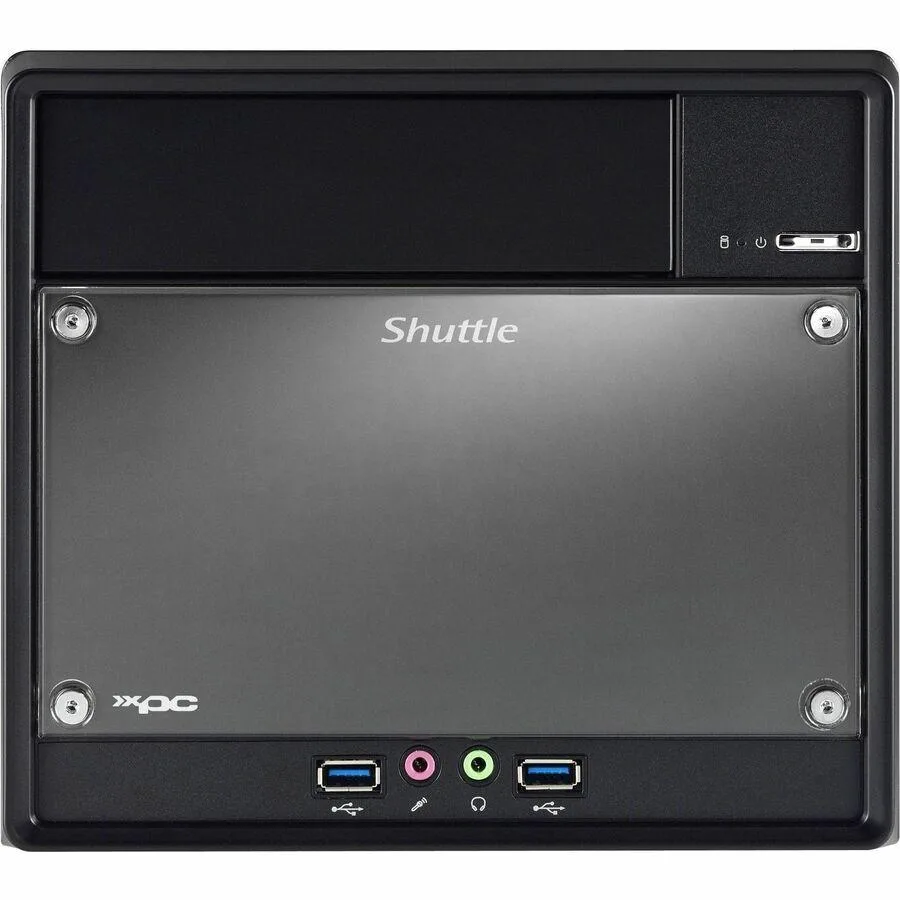

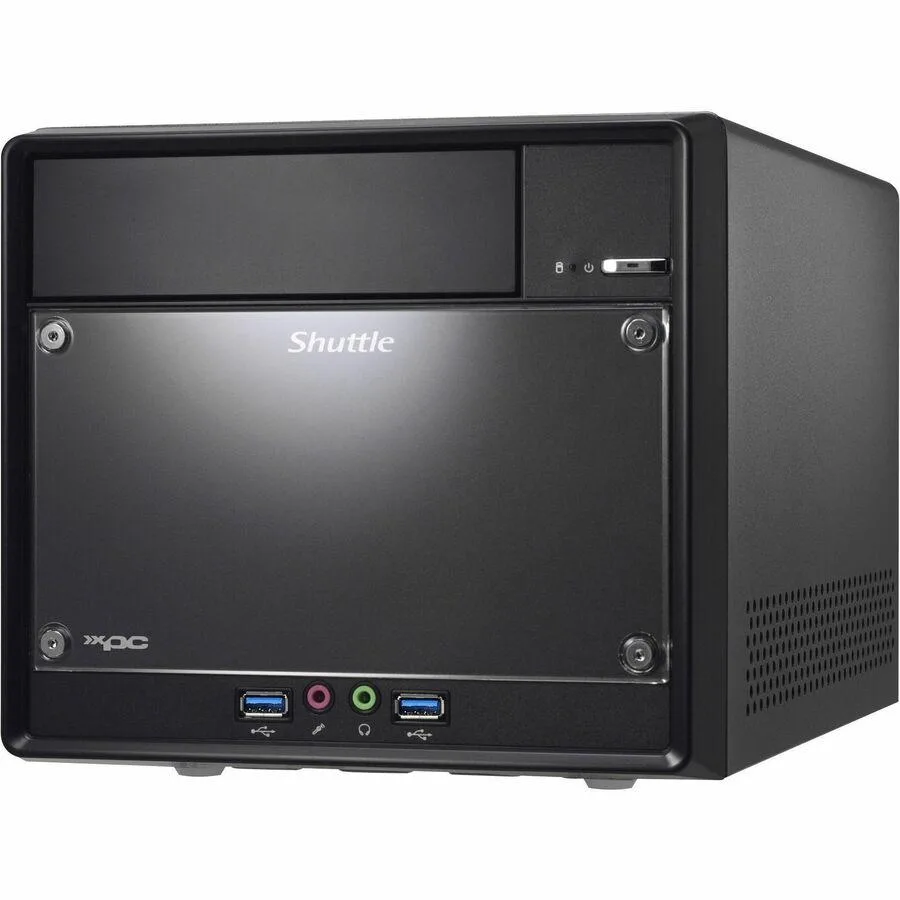

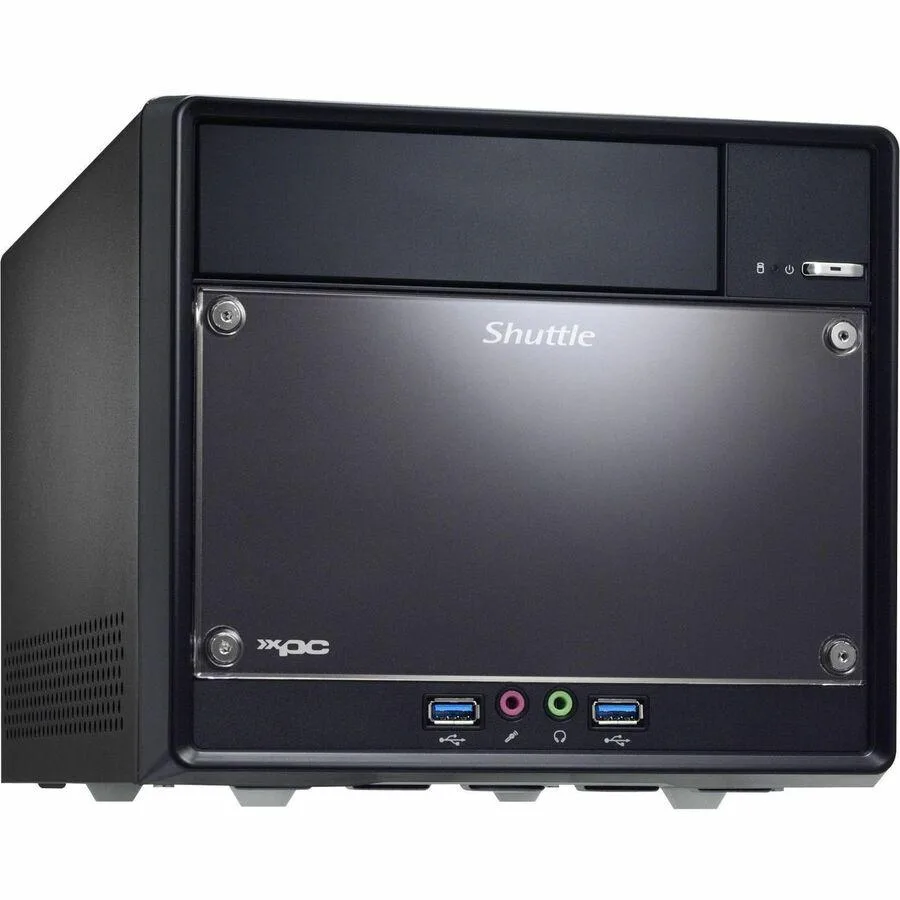

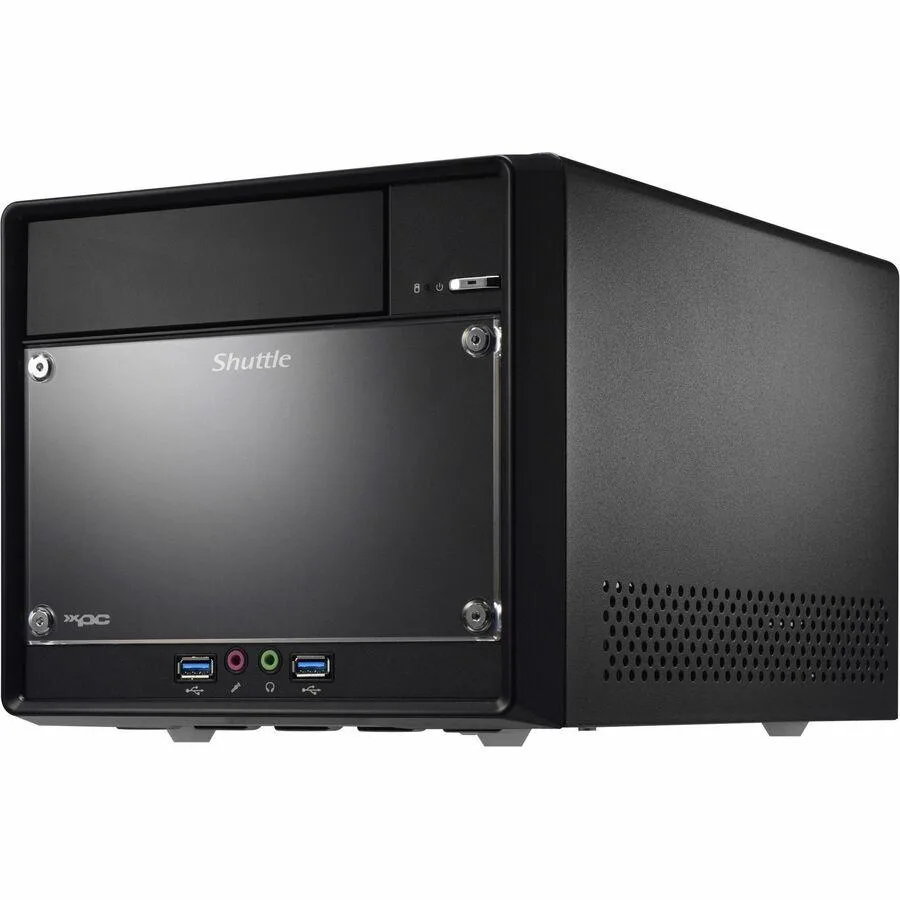

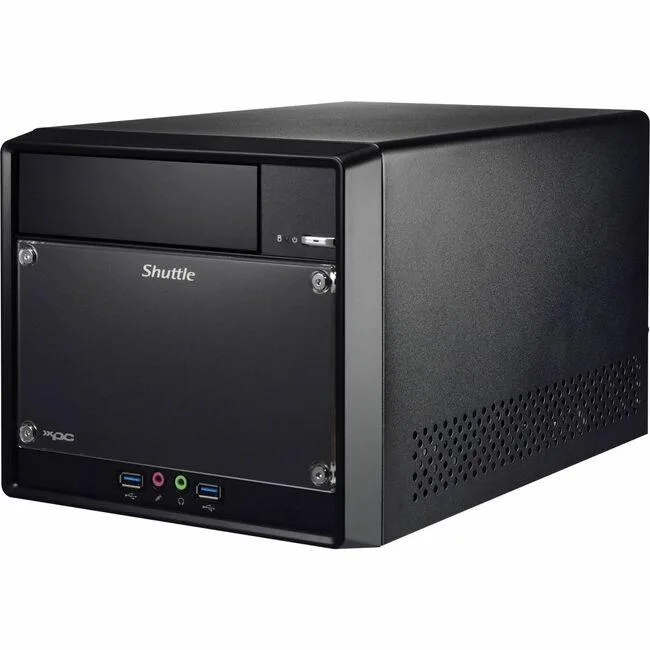

Compact black barebone cube with customisable front plate

Shuttle Computer

Shuttle Computer SH610R4 barebone pc LGA1700 H610 DDR4 3200 64GB max

SKU CH-T4SN-GHBKB MPN SH610R4

Compact barebone PC supporting 12th, 13th and 14th generation Intel Core processors with DDR4 3200 memory up to 64 GB

  • ColorBlack
  • CasesR4 chassis customizable front plate
  • CPU InstalledNone
  • CPU TypeIntel Core Gen 12/13/14
  • CPU SocketIntel Socket LGA1700
  • North BridgeIntel H610
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA1700 socket
  • Dual-channel DDR4 3200 SO-DIMM slots accept up to 64 GB memory
  • PCIe 5.0 x16 slot plus PCIe 3.0 x1 for graphics or add-in cards
  • M.2 2280 slot takes PCIe 4.0 x4 NVMe or SATA drives
  • Intel i219 LAN plus front USB 3.2 Gen 1 and audio jacks

Ready-to-build LGA1700 barebone

The Shuttle SH610R4 is a compact barebone system based on the Intel H610 chipset. It accepts Intel Core Gen 12, 13 and 14 processors in an LGA1700 socket. Two SO-DIMM slots support DDR4 3200 memory up to 64 GB. The R4 chassis includes a customisable front plate for personalisation.

Thermal and power profile

The unit ships without a CPU or memory, so thermal output and noise depend entirely on the chosen processor and cooler. The H610 chipset itself draws modest power. Builders should pair the board with a cooler suited to their selected CPU TDP to maintain quiet operation.

Connectivity and expansion

A PCIe 5.0 x16 slot and a PCIe 3.0 x1 slot provide graphics and add-in card options. Storage includes three SATA 6.0 Gb/s ports and an M.2-2280 slot for PCIe 4.0 NVMe or SATA drives. An M.2-2230E key accepts an optional WLAN module. Front I/O offers two USB 3.2 Gen 1 ports and audio jacks.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA1700 socket
  • Dual-channel DDR4 3200 SO-DIMM slots accept up to 64 GB memory
  • PCIe 5.0 x16 slot plus PCIe 3.0 x1 for graphics or add-in cards
  • M.2 2280 slot takes PCIe 4.0 x4 NVMe or SATA drives
  • Intel i219 LAN plus front USB 3.2 Gen 1 and audio jacks

Specifications

BrandShuttle
ModelSH610R4
ColorBlack
CasesR4 chassis customizable front plate
CPU InstalledNone
CPU TypeIntel Core Gen 12/13/14
CPU SocketIntel Socket LGA1700
North BridgeIntel H610
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
PCI Express 5.0 x161
PCI Express1 x PCI Express 3.0 x1
Serial ATA3 x SATA 6.0Gb/s
M.21 x M.2-2280M slot (supports PCIe x4 v4 NVMe or SATA)
1 x M.2-2230E for optional WLAN (accessory: WLN-M/M1)
Channel6-CH
First LANIntel i219
Front USB2 x USB 3.2 Gen 1
Front Audio Ports2 jacks
VGA1 x D-Sub
HDMI1 x HDMI 2.0b
DisplayPort2 x DisplayPort 1.4
Rear USB2 x USB 3.2 Gen 1
4 x USB 2.0
Rear Audio Ports3 jacks
Power SupplyInternal 300W power supply, 80Plus Bronze
Dimensions19 x 32.9 x 21.6 cm
EnvironmentOperating temperature: 0~40 °C (non-condensing)

Questions about this item

How do I install the CPU and SO-DIMM modules in the SH610R4, and what step is often missed?

Fit an LGA1700 processor into the socket, then press two DDR4 3200 SO-DIMMs into the 260-pin slots until the side clips click; the step often missed is fully seating both memory modules so both clips engage.

Which components will need replacement or maintenance later in the SH610R4?

The CPU cooler fan and chassis fan are the only moving parts that wear; plan to clean dust from the heatsink fins and replace either fan if noise or speed drops.

What limit appears first when the SH610R4 runs sustained heavy loads?

The H610 chipset and compact R4 chassis limit thermal headroom, so CPU temperatures hit the throttle point before the PCIe 5.0 x16 slot or the 64 GB memory ceiling become bottlenecks.
